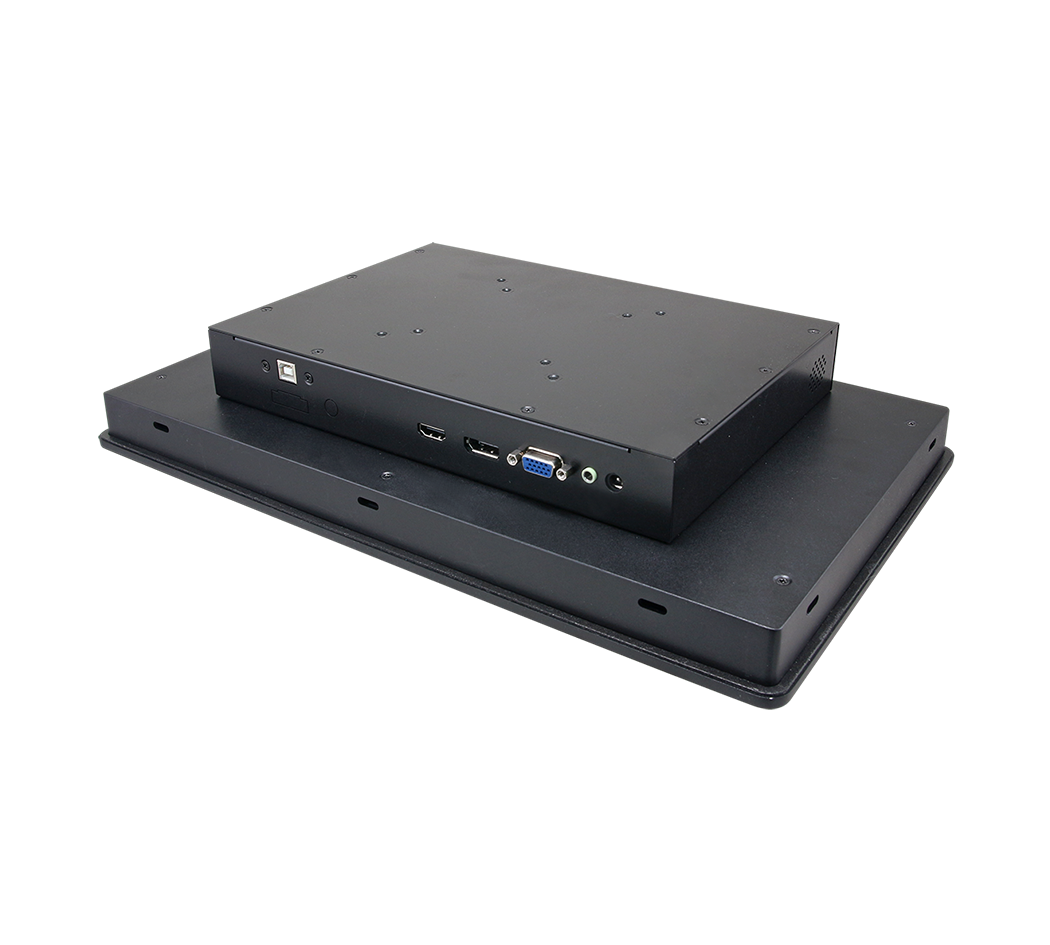

ARC-15W00
15.6" WXGA Rugged PCAP Multi-Touch Monitor
FEATURE
15.6" WXGA LCD with projective capacitive multi touch
HDMI, display port, VGA input, line in
USB type B for touch function
Rugged design for vibration and shock protection
Fanless operation -10 ~ 50°C
Default with +12V DC in (Option for wide voltage 9~36V DC in)
Front panel IP65 protection
Default with panel mounting kits
Option for Bi-Direction WIFI-6 interactive module for USB signal and image
Specification
Download
System Information
Other
OSD key at rear cover
Expansion
Expansion
Option for Bi-Direction WIFI-6 interactive module for USB signal and image
Audio
Audio Interface
1x Line in
Speaker Output
2 x 5W
Certification
Certification Information
CE/ FCC Class A
External I/O
USB Port
USB type B connector for touch function
HDMI
1x HDMI 1.4a (HDCP 1.3)
Display Port
1x Display Port 1.2 (HDCP 1.3)
VGA
1x 15 PIN D-SUB VGA connector
Panel
LCD Size
15.6", 16:9
Display Type
WXGA
Resolution
1366x768
Pixel pitch
0.252mm(H) x 0.252mm(V)
Luminance
300 cd/m2
Contrast ratio
500
Viewing angle
80 (U), 80 (D), 80 (L), 80 (R)
Response time
8 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch supports up to 10 points
Touch Light Transmission
89 %
System Control
LED Indicator
Power Led
Control Buttons
OSD Function Key (Power/ Menu/ Up/ Down)
Mechanical & Environmental
Operating Temp.
-10°C ~ 50°C
(option for -10°C ~ 60°C)
Storage Temp.
-20°C ~ 60°C
Operating Humidity
40°C @ 95% Relative humidity, non-condensing
Weight
3.2 Kg
Vibration Test
1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock Test
MIL-STD-810G, method 516.6, procedure I, functional shock=20G
IP Rating
Front panel IP65
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits
Dimension (W x L x D)
391.21 x 239.21 x 68 mm
Power Requirement
+12V DC in by DC Jack
Optional +9~36V DC in by phoenix connector
System Fan
Fanless
Construction - Front
Die casting with cover lens
Construction - Rear
Metal
Component
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
Ordering Information
Ordering Information
ARC-15W00-CP-A1R
15.6" PCAP Multi-Touch Rugged Industrial Monitor
DP/HDMI/VGA/Line out/SPK/OSD key/12V Power adapter
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
