MAB-T660

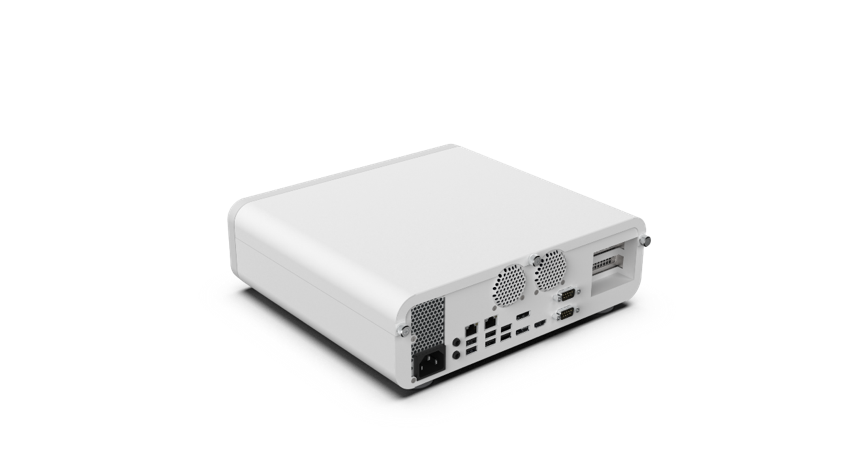

MAB-T660 GPU card IT Grade AI Box PC with Intel 12/13th Gen Core I Processors
FEATURE
12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Intel® R680E Chipset
2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz Non-ECC DRAM support
4 x Intel® i226LM 2.5 Gigabit Controller
2 x DP++, 1 x HDMI 2.1b
1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)
1x 2.5” Drive Bay
4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 at Rear, 2 x USB at Front
Specification
Download
System Information
Processor
12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
Platform Controller Hub
Intel® R680E Chipset
System Memory
2 x SODIMM Up to 64GB Dual Channel DDR5 4800MHz
Non-ECC DRAM support
I/O Chipset
NuvoTon NCT6126D
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor
CPU temperature monitoring, voltages monitoring, CPU fan speed control
RAID
Support RAID 0, 1
SBC
EMX-R680P
Expansion
M.2
1 x M.2 (2230) E-Key, support Wi-Fi module with PCIe x 2 Gen 3 & USB 2.0
1 x M.2 (2242/2280) M-Key, support PCI-e x 4 Gen 4 SSD (top side)
PCIe
1 x PCI-e x 16 Gen 5 or 2 x PCI-e x 8 by switch (from CPU)
Storage
Storage
1 x 2.5” SATAIII HDD/SSD drive
Display
Graphic Chipset
Intel® UHD Graphics 770
Spec. & Resolution
2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz
1 x HDMI 2.1b (supported with LSPCON): 8K@60Hz
Audio
Audio Codec
RealTek ALC888S Audio Codec
Audio Amplifier
RealTek ALC105 Stereo Class-D 2W4Ω
Power Requirement
Voltage Input Spec
AC 100-240 V in
Power Supply Unit
400W medical 1U ATX power supply
Power Mode
ATX
Ethernet
LAN Chipset
4 x Intel® i226LM 2.5 Gigabit Controller
Software Support
OS
Win 10, Win 11, Linux
External I/O
USB
Front: 2xUSB 2.0
Rear: 4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1
LAN
4 x 2.5 Gigabit Ethernet
Display
1 x HDMI 2.1b
2 x DP++
Antenna
2 x Antenna Mounting with Dust Protection Cover
Mechanical & Environmental
Operating Temp.
0°C~35°C (32˚F ~ 95˚F)
Storage Temp.
-30C°~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)
315 x 272 x 92 mm
Weight
4.8 kg
Vibration Test
Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis
Shock Test
With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms
Drop Test
Package drop test:One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32
Color
White
Construction
Metal + plastic
Ordering Information
Ordering Information
MAB-T660-A1-1R STD Chassis Kit with EMX-R680P MB & PSU & CPU Fan
Expansion cards under testing:
RCC-GPU-T1000-01R GPU NVIDIA T1000 8GB graphic card
RCC-GPU-RTXADA-01R NVIDIA RTX2000 ADA
RCC-GPU-RTXADA-03R NVIDIA RTX4000 SFF ADA
RCC-CAP-PCIE-01R SC710N2-L HDMI Capture Card
RCC-CAP-PCIE-04R SC400N2-L HDMI Capture Card
RCC-LAN-PCIE-01R Intel 82574 LAN Card
RCC-LAN-PCIE-02R Intel I350AM2 LAN Card
RCC-WIFI-M2BT-01R Intel WIFI module with kits
RCC-WIFI-PCIE-01R WiFI set ENL-5400PCI
