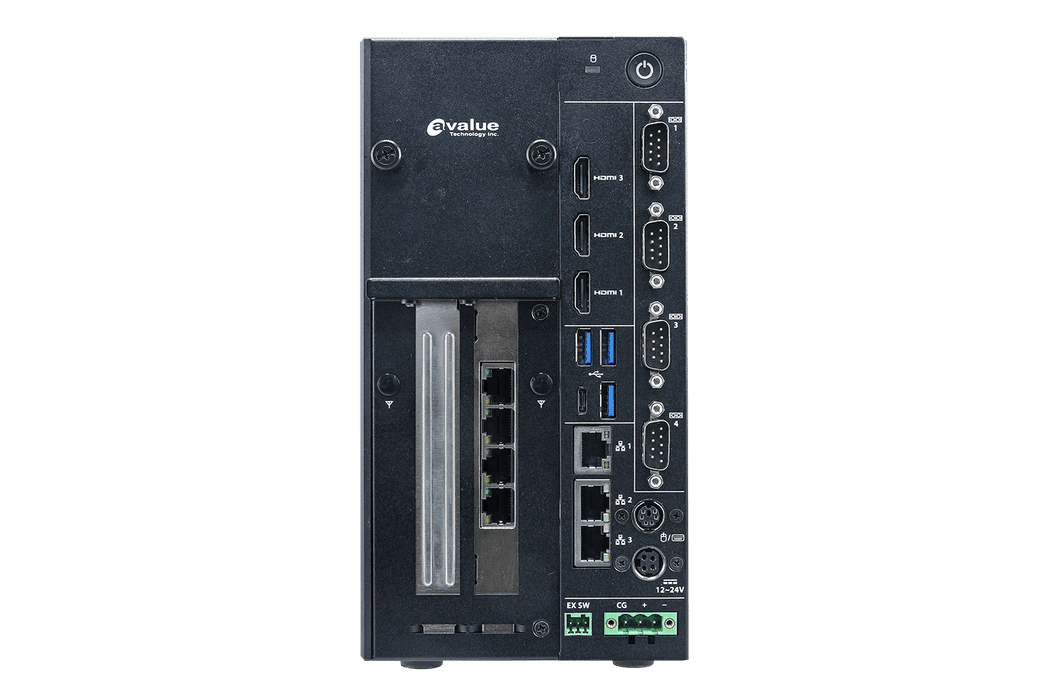

SLP-WHG-TSN
8th Gen Intel® Core™ Processor Core™ SoC i7/i5/i3 & Celeron® BGA Processor Fanless Expandable Slot PC with TSN Gigabit Ethernet PCIe NIC Card
FEATURE
8th Gen Intel Core SoC i7/i5/i3 & Celeron BGA Processor
2 x 260-pin DDR4 2133 MHz SO-DIMM Socket, up to 32GB Max (Non ECC Only)
Rich I/O, 3-USB3.1, 3-HDMI, 4-COM, 3-LAN, 4-TSN Gigabit Ethernet
1 x Key A M.2 2230 supports Wi-Fi & BT Modulle, 1 x M.2 Key-B 3042/2242/2260/2280 with internal SIM slot
Fanless operation temperature from -20°C ~ 50°C
CE/FCC Class A
Wide range DC power input from +12~24V
Support TSN Timing and Synchronization for Time-Sensitive Applications compliant to IEEE 802.1AS-Rev/AS, and IEEE 1588V2
Specification
Download
System Information
Processor
Intel® Core™ i7-8665UE Processor (15W, 8M Cache, up to 2.0 GHz)
Intel® Core™ i5-8365UE Processor (15W, 8M Cache, up to 1.8 GHz)
Intel® Core™ i3-8145UE Processor (15W, 4M Cache, up to 1.6 GHz)
Intel® Celeron® Processor 4305UE (15W, 2M Cache)
System Memory
2 x 260-pin SODIMM socket Max. up to 32GB DDR4 2133MT/s
BIOS Information
AMI uEFI BIOS 256 Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
TPM
Onboard TPM 2.0
SBC
EMX-WHLGP
Expansion
M.2
1 x M.2 Key-A 2230 for Wi-Fi & BT Module
1 x M.2 Key-B 3042/2242/2260/2280, supports SATA 3/PCIe lll x 1/USB 2.0 and internal SIM slot 1
PCIe
1 x PCIe*1 slot
1 x PCIe*4 slot

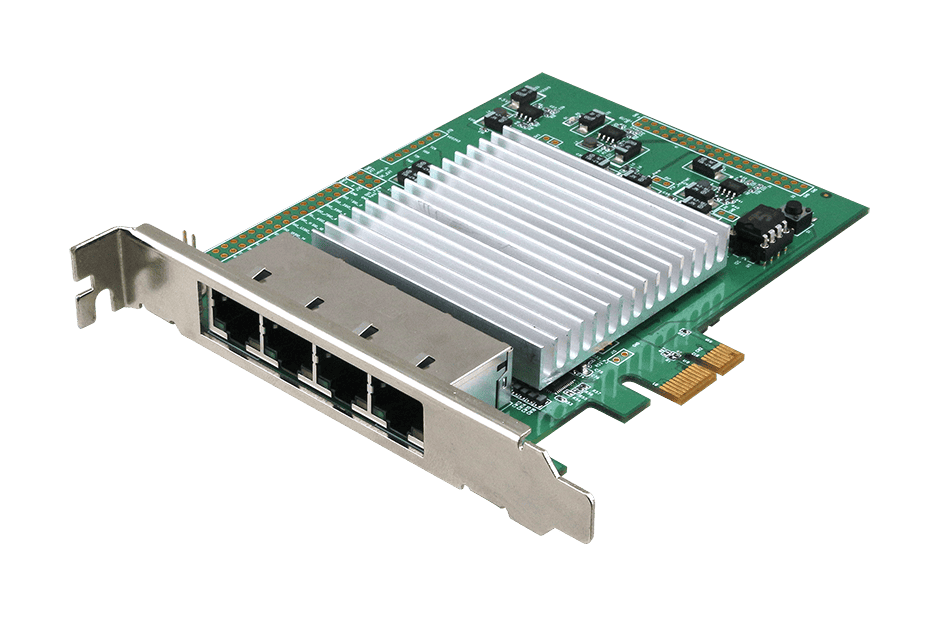

w/ASIX TSN Card: Quad Port TSN Gigabit Ethernet PCIe NIC Card
Storage
M.2
1 x M.2 Key-B 3042/2242/2260/2280, support SSD(share with expansion slot)
2.5 Drive Bay
1 x 2.5” Drive Bay (internal)
Rear I/O
USB
3 x USB3.1 Gen1
1 x USB Type C w/o ALT mode
Power Button
1 x Power On/Off
COM Port
4 x RS-232
LED Indicator
1 x Power LED
1 x HDD LED
LAN Port
3 x RJ-45 GbE
4 x RJ45 for TSN Gigabit Ethernet
SIM Slot
1 x Internal SIM slot
Wire-Control Power On/Off
2-Pin Terminal Block
Antenna
2 x Antenna with dust cover
AC/DC Input
3-Pin Terminal Block (V+. V-, GND)
Display
Graphic Chipset
Intel® Processor Graphics
Resolution
3 x HDMI 1.4b: 3840 x 2160 @ 30 Hz
Ethernet
LAN Chipset
1 x Intel® I219-LM
2 x Intel® I210-IT
Power Requirement
Power Mode
AT/ATX (ATX is default setting)
Software Support
OS
Win 10 64bit
Linux
Certification
Certification Information
CE/FCC Class A
Mechanical & Environmental
Operating Temp.
-20~50°C (41˚F ~ 122˚F) w/Industrial SSD, ambient w/ 0.5m/s air flow
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
217 mm x 115 mm x 220 mm
Weight
2.6 kg (System)
3.4 kg (w_Package)
Vibration Test
With SSD : 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test
With SSD : 10Grms, IEC 60068-2-29, Half Sine, 11ms
Drop Test
Complied with ISTA 2A
Ordering Information
Ordering Information
8th Gen Intel® Core™ Processor Core™ SoC i7/i5/i3 & Celeron® BGA Processor Fanless Expandable Slot PC with TSN Gigabit Ethernet PCIe NIC Card
SLP-WHG-86-A1-2R (i7-8665UE)
SLP-WHG-83-A1-2R (i5-8365UE)
SLP-WHG-81-A1-2R (i3-8145UE)
