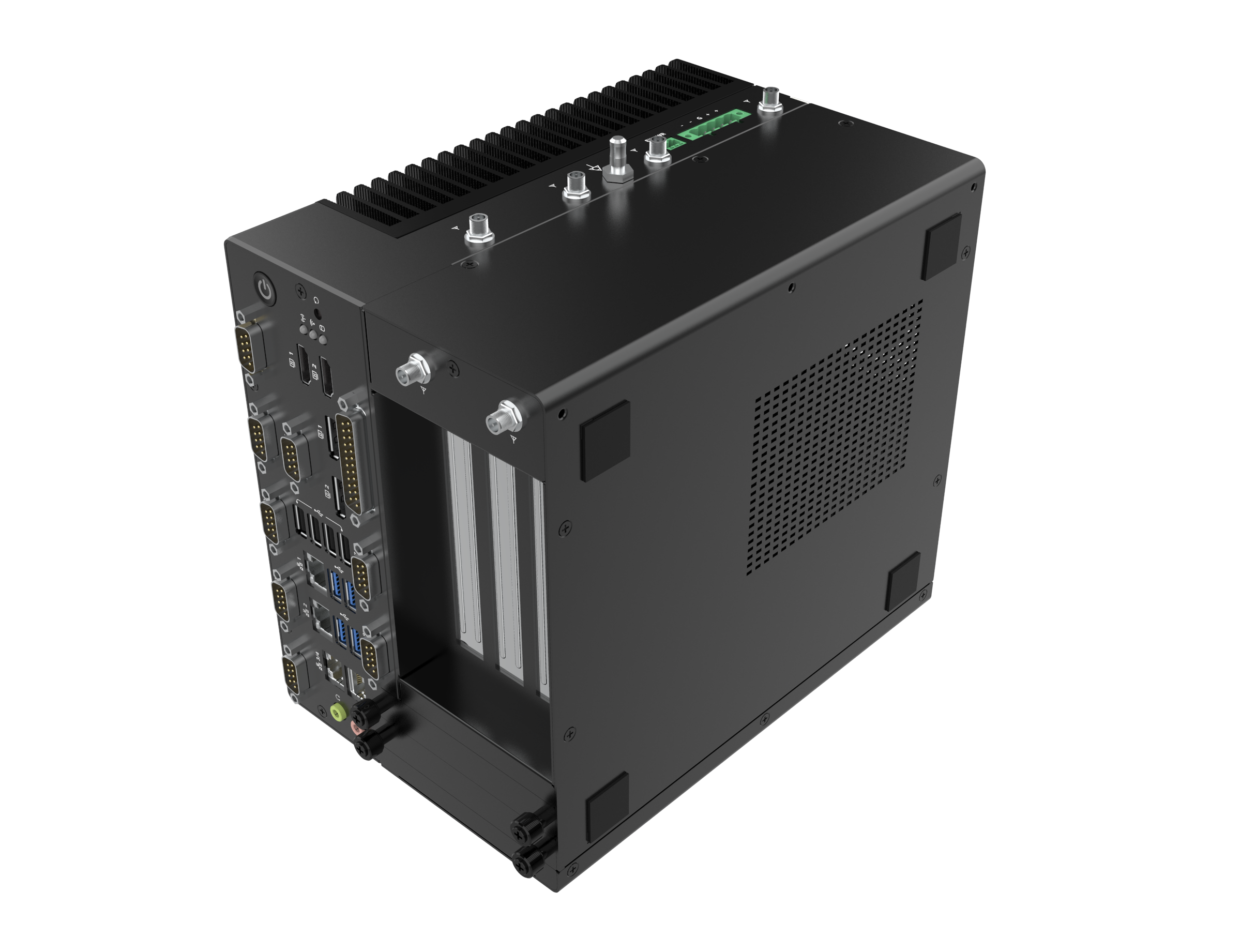

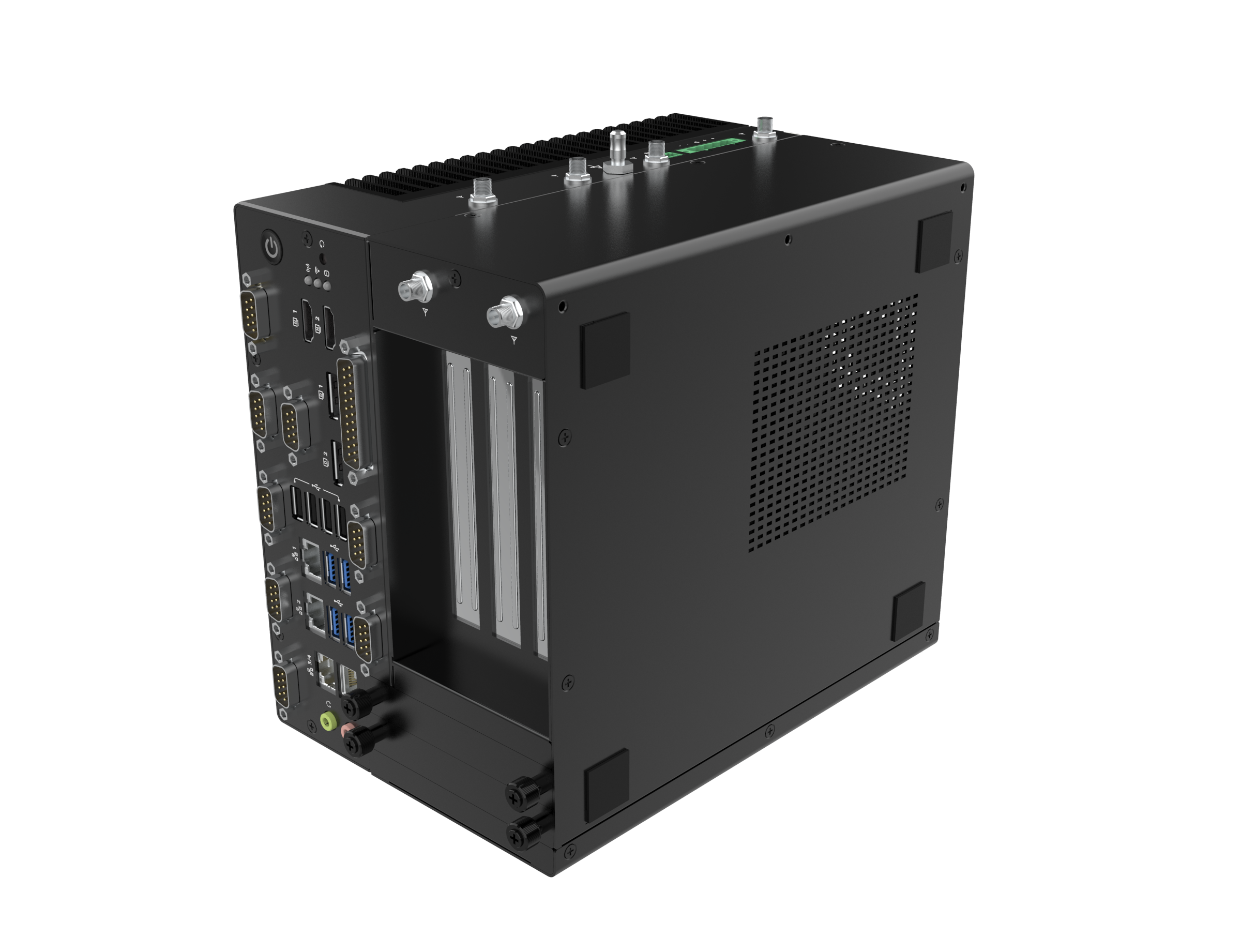

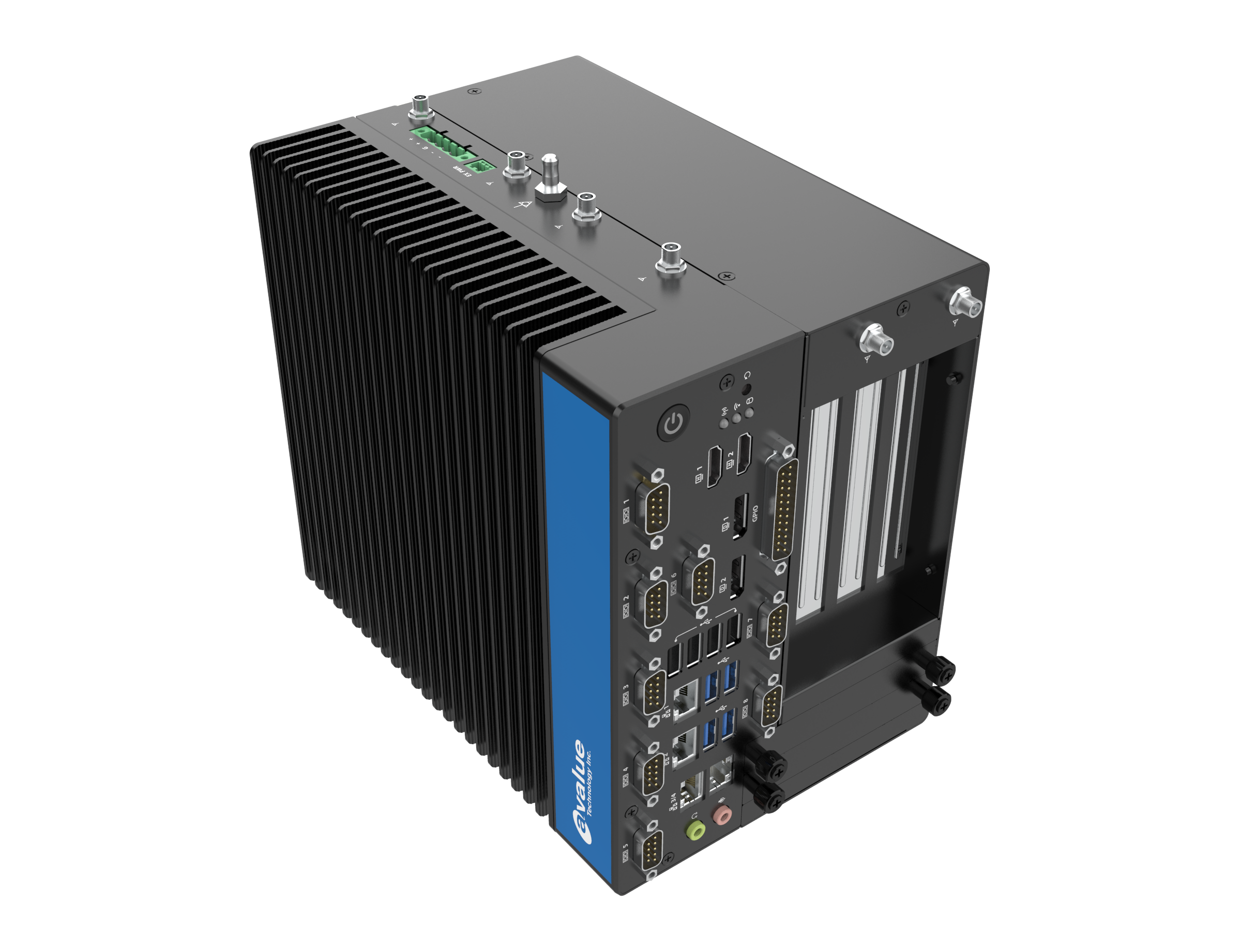

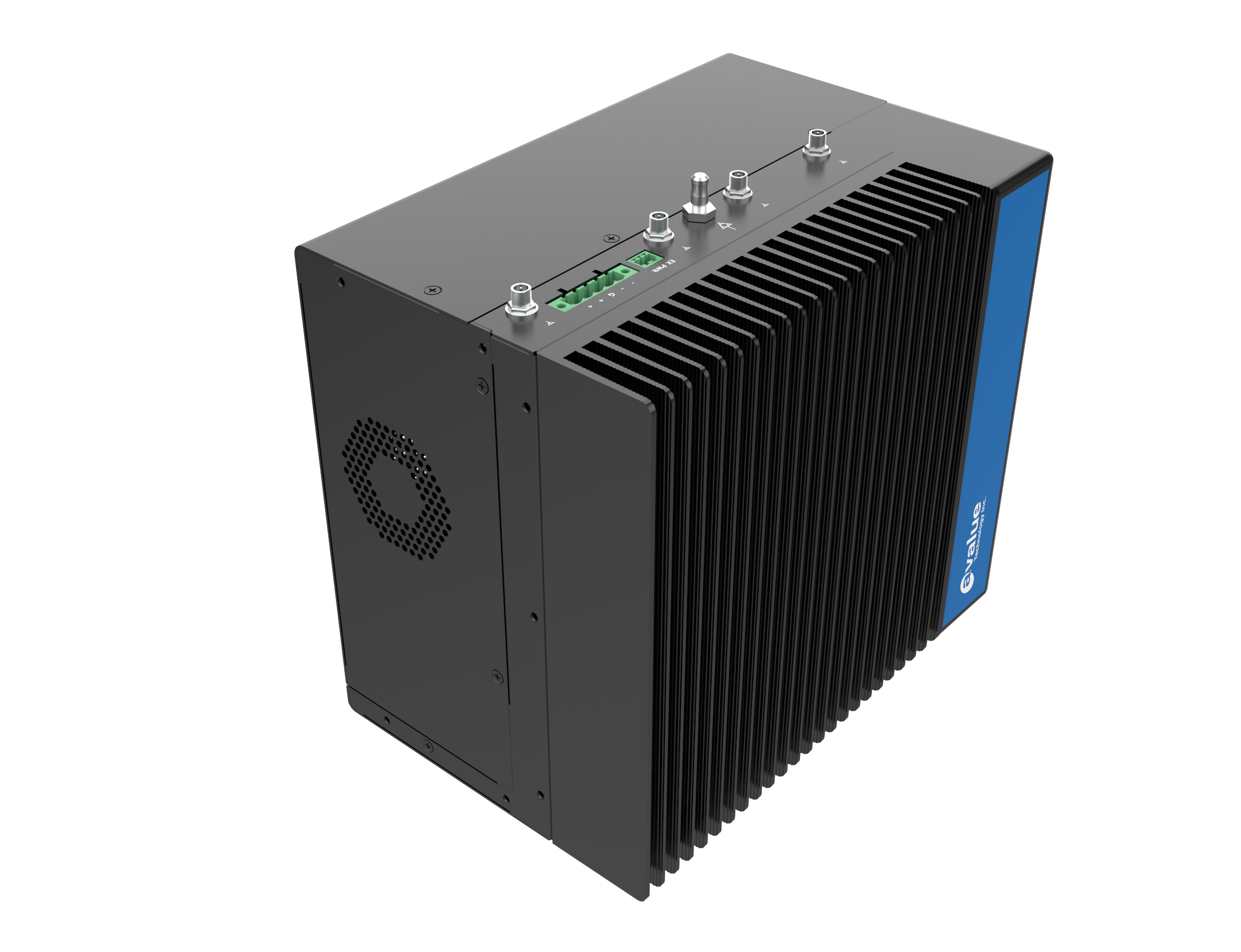

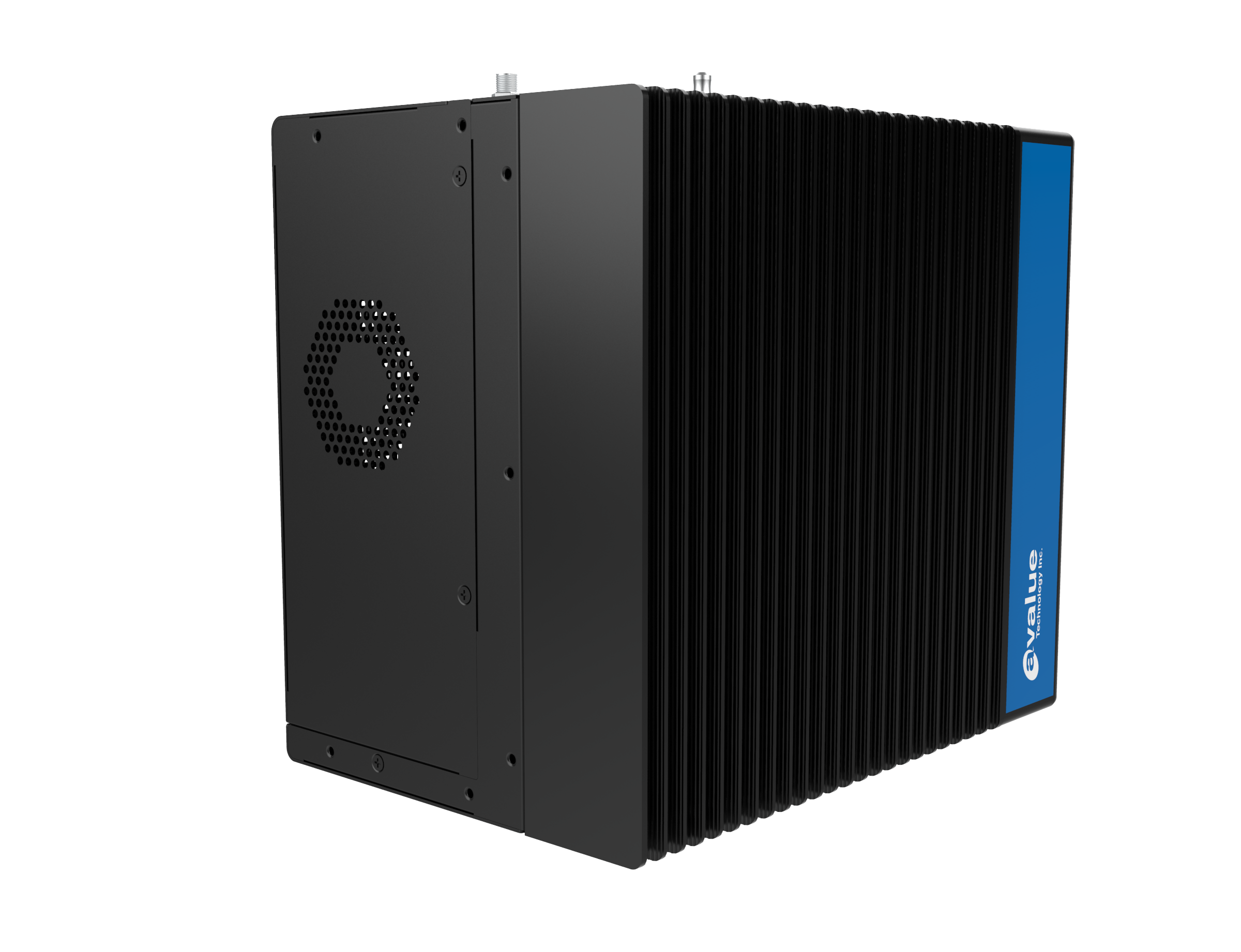

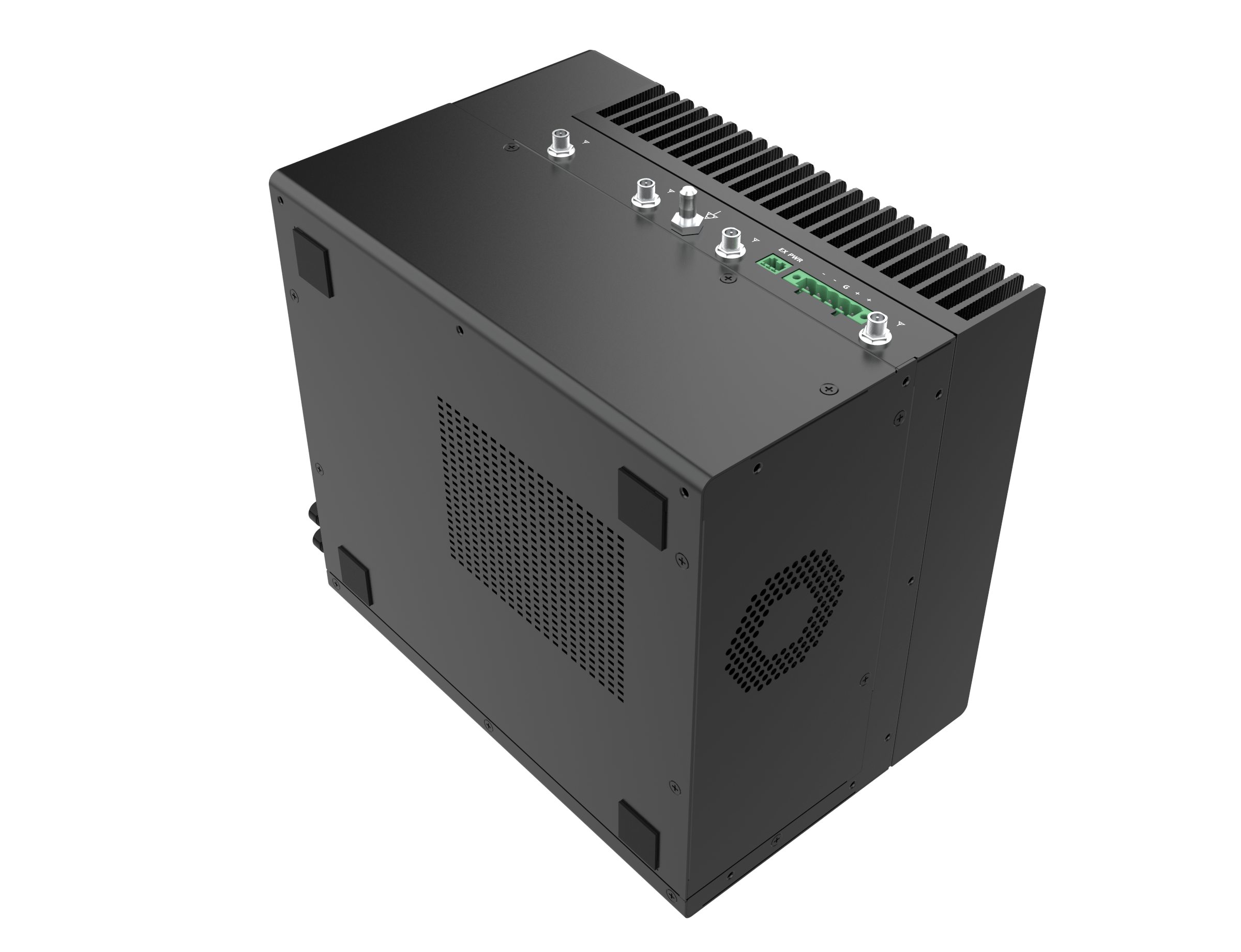

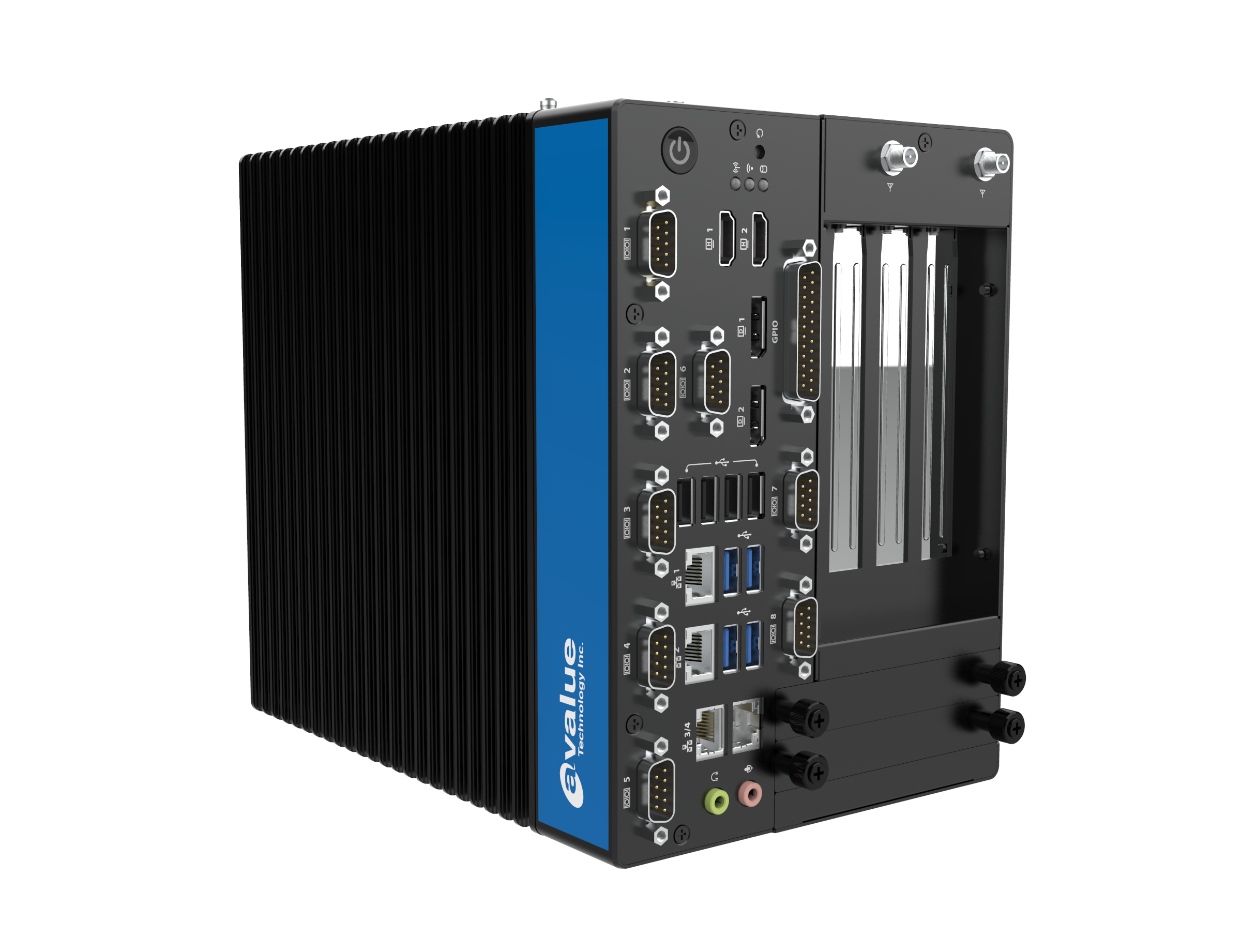

SLP-RPR
13th/14th Gen Intel® Core™ i9/i7/i5/i3 & Celeron® Processor Fanless Expandable System
FEATURE
14th Generation Intel® Raptor Lake-S Refresh Processors
Intel® UHD Graphics 770/730
2-Memory Socket (Capacity Max. Up to 64GB DDR5 5600)
2-Audio Jack (Mic-In, Line-Out)
4-Expanslot Slot (M.2 Key-E, Key-B, PCIex16, PCIex4)
4-Intel® Ethernet Controller (1GbE, 3-2.5GbE)
4-Display (2-HDMI 2.0b, 2-DP++ 1.4,)
8-COM Port (4-RS-232, 4-RS-232/422/485)
8-USB Port (4-USB 2.0, 4-USB 3.2 Gen2)
Support Wall mount
Support dTPM 2.0, vPro
Specification
Download
System Information
Processor
35W
Intel® Core™ i9-13900TE / i9-14900T Processor
Intel® Core™ i7-13700TE / i7-14700T Processor
Intel® Core™ i5-13500TE / i5-14500T Processor
Intel® Core™ i3-13100TE / i3-14100T Processor
65W
Intel® Core™ i9-13900E / i9-14900 Processor
Intel® Core™ i7-13700E / i7-14700 Processor
Intel® Core™ i5-13500E / i5-14500 Processor
Intel® Core™ i3-13100E / i3-14100 Processor
Platform Controller Hub
Intel® Q670E Chipset
System Memory
2-262-Pin SO-DIMM Socket
(Capacity Max. Up to 64GB DDR5 5600MHz)
I/O Chipset
NuvoTon NCT6126D
BIOS Information
AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
RAID
RAID 0/1 (2.5” SATA SSD)
TPM
Support dTPM 2.0
iAMT
iAMT 12.0 (Above i5 CPU)
Expansion
M.2
1-M.2 Key-E 2230 for PCIex1 and USB 2.0,support CNVi
1-M.2 Key-B 2242/3042/3052 with internal SIM slot for PCIex1, USB 3.2 and SATA3, support 4G/5G
PCIe
1-PCIex16 slot (PCIex16 Gen 5 signal)
1-PCIex4 slot (PCIex4 Gen 4 signal)
Storage
M.2
1-M.2 Key-M 2242/2280 for PCIe Gen4x4, support NVMe
1-M.2 Key-B 2242 for SATAIII, support storage, share with expansion slot
2.5 Drive Bay
2-2.5” Drive Bay (Max. up to 15mm Height Storage)
Front I/O
USB
4-USB 2.0
4-USB 3.2 Gen 2
Power Button
1-Power Button w/LED
Reset Button
1-Rest Button
COM Port
4-RS-232/422/485 (Signal selected by BIOS, support auto flow control)
4-RS-232 (COM5-8, COM7-COM8 by optional)
DP
2-DP1.4(support DP++)
LAN Port
4-RJ45
Audio
1-Mic-In
1-Line-Out
SIM Slot
1-Internal SIM Slot
HDMI
2-HMDI 2.0b
Digital I/O
1-16-bit Programable GPIO (by optional)
Antenna
2-Covered Antenna Hole
Top I/O
AC/DC Input
1-5P Terminal Block
Wire-Control Power On/Off
1-3P GRN DIP DINKLE
Antenna
4-Covered Antenna Hole
Display
Graphic Chipset
Intel® UHD Graphics 770 (i9/i7)
Intel® UHD Graphics 730 (i5/i3)
Resolution
2-HDMI 2.0: 4096x2304@60Hz
2-DP1.4: 4096x2304@60Hz (support DP++)
Support 4 Independent Displays
Audio
Audio Codec
RealTek ALC888S
Ethernet
LAN Chipset
Intel® Ethernet Connection I219-LM, vPro support (only with i5/ i7/i9 CPU)
Intel® Ethernet Controller I226-V
Data Rate Per Port
1-10/100/1000 GbE (I219-LM)
3-10/100/1000/2.5 GbE (I226-V)
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Voltage Input Spec.
DC in Typical 12/24 (+9V~36V)
Software Support
OS
Win10, Win11, Linux
Mechanical & Environmental
Operating Temp.
Passive Cooling
-20°C ~ 40°C (14°F ~ 104°F) with 0.7m/s air flow (65W)
-20°C ~ 50°C (14°F ~ 122°F) with 0.7m/s air flow (35W)
Active Cooling
-20°C ~ 50°C (14°F ~ 122°F) with system Fan (65W)
-20°C ~ 60°C (14°F ~ 140°F) with system Fan (35W)
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
156 x 230.1 x 208m
Weight
TBD
Vibration Test
Random Vibration Operation
1. Test PSD : 0.0505G²/Hz, 5 Grms
2. System condition : operation mode
3. Test frequency : 10~500 Hz
4. Test axis : X,Y and Z axis
5. Test time : 30 minutes per each axis
6. IEC60068-2-64 Test Fh
7. Storage : SSD
Sine Vibration test (Non-operation)
1. Test Acceleration : 2G
2. Test frequency : 5~500 Hz
3. Sweep：1 Oct/ per one minute. (logarithmic)
4. Test Axis : X,Y and Z axis
5. Test time :30 min. each axis
6. System condition : Non-Operating mode
7. Reference IEC 60068-2-6 Testing procedures
Package Vibration Test:
1. Test PSD : 0.026G²/Hz , 2.16 Grms
2. Test frequency : 5~500 Hz
3. Test axis : X,Y and Z axis
4. Test time : 30 minutes per each axis
IEC 60068-2-64 Test Fh
Shock Test
1. Wave from : Half Sine wave
2. Acceleration Rate : 50G
3. Duration Time : 11ms
4. No. of shock : 3 times
5. Test Axis : +/- X, +/-Y, +/-Z axis
6. Operation mode
Reference IEC 60068-2-27 testing procedures
Test Eb : SSD Shock Test
Drop Test
Package drop test
Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed
Test Ea : Drop Test
1. Test phase : One corner, three edges, six faces
2. Test high : 96.5cm
3. Package weight : TBD Kg
4. Test drawing
Mounting Kit
Wall mount kit (default)
Onboard I/O
USB
2-Tpye A USB connector
Buzzer
1- Buzzer
Packing List
Items
1-SLP-RPR
1-Wall Mount Kit
1-Screw Kit (for M.2, 2.5” Drive Bay, Wall Mount)
4-Rubber Foot
