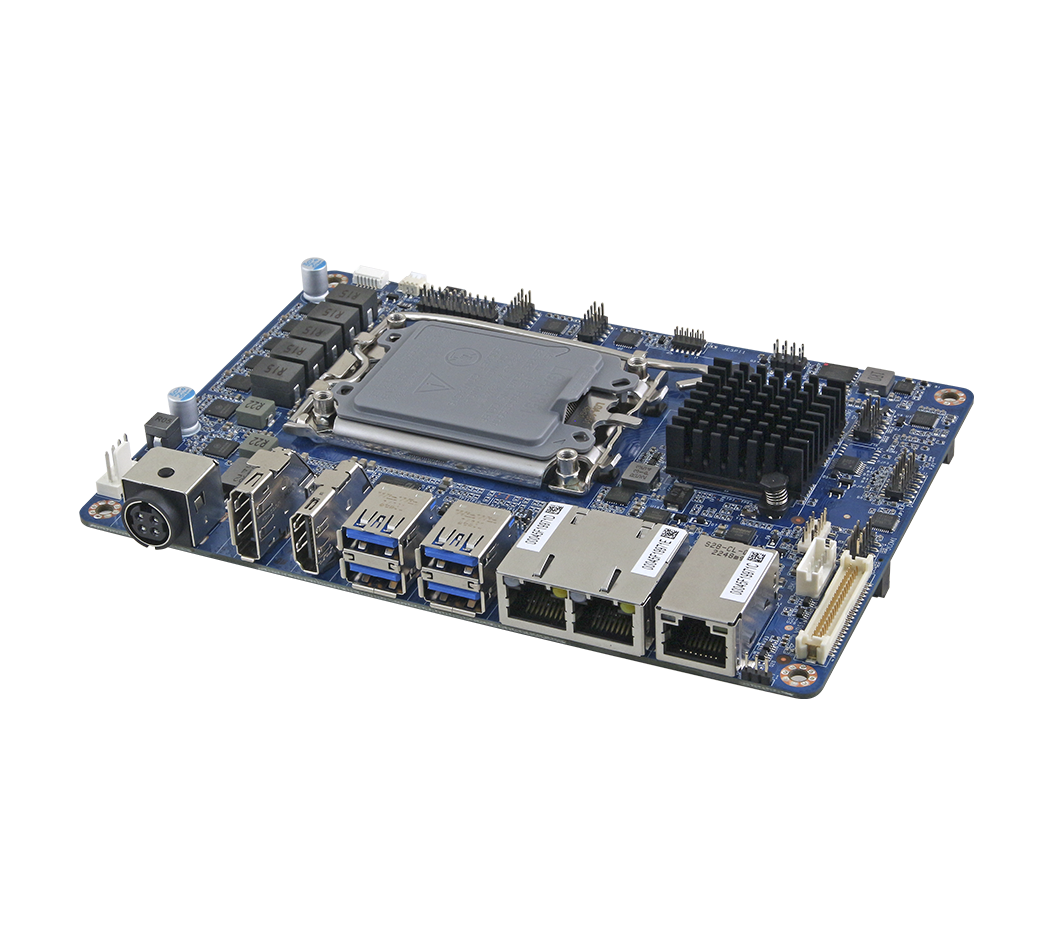

Processor

LGA 1851 Socket Supports Intel® Core™ Ultra Processors (Max. TDP at 35W)

Platform Controller Hub

Intel® Q870/H810 Chipset

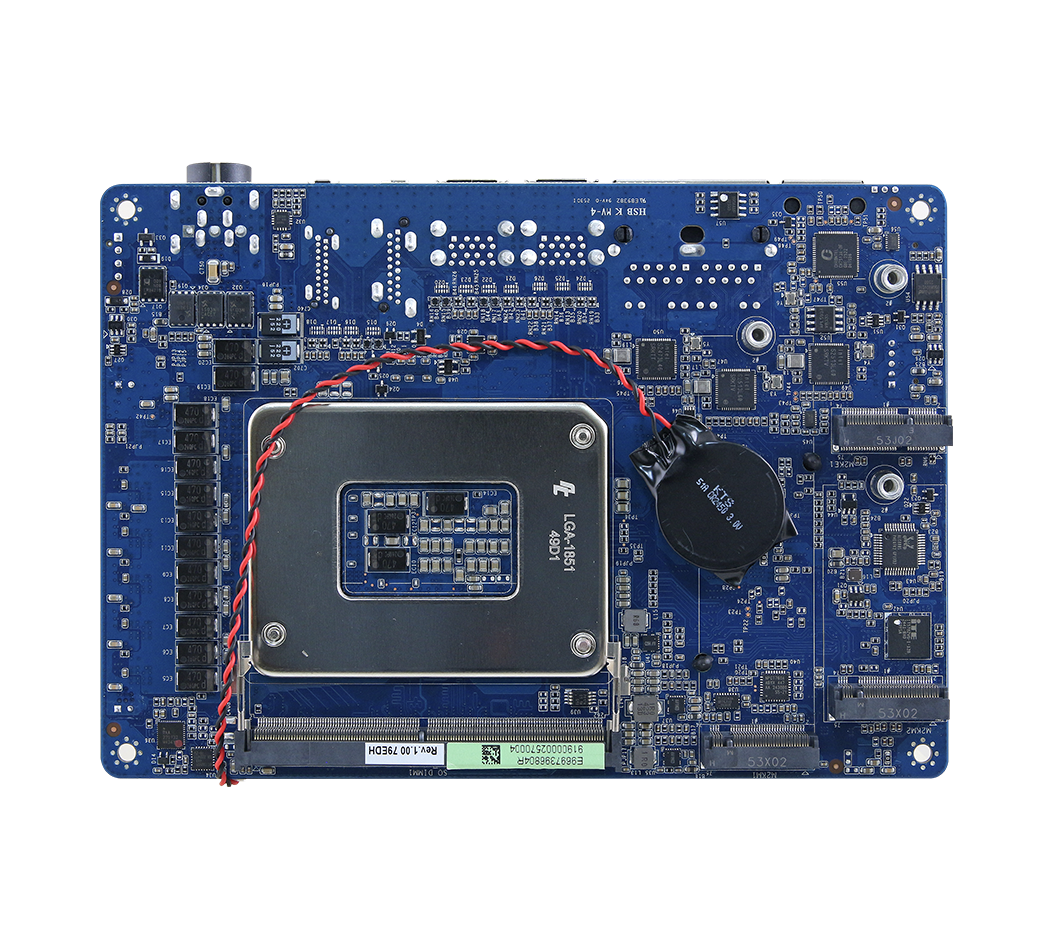

System Memory

1 x 262pin SO-DIMM Up to 48GB Dual Channel DDR5 5600/6400MHz (6400Mhz for Ultra 7, Ultra 9 CPU)

I/O Chipset

EC ITE IT5782VG

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU & system temperature monitoring Voltages monitoring

TPM

Onboard NuvoTon NPCT760AABYX

Expansion

1 x M.2 Key E 2230, support Wi-Fi module, support 1x PCIe x1 Gen 3, USB 2.0
1 x M.2 Key M 2280, support PCI-e x4 Gen 4 NVMe or SATA device
1 x M.2 Key M 2242, support PCI-e x4 Gen 4 NVMe or SATA device (for Q870 only)

Storage

1 x M.2 Key M 2280, support PCI-e x4 Gen4 NVMe or SATA device
1 x M.2 Key M 2242, support PCI-e x4 Gen4 NVMe or SATA device (for Q870 only)

Graphic Chipset

Intel® Xe LPG graphics architecture CPU integrated

Spec. & Resolution

1 x DP 2.0: Max: 7680 x 4320@60 Hz
1 x HDMI 2.0 : 4096 x 2304@60 Hz
1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes), default LVDS

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-in, Mic-in, Line-out

LAN Chipset

1 x Intel® i226LM 2.5 Gigabit Controller
2 x Intel® i226V 2.5 Gigabit Controller (H810 only 1 x Intel® i226-V 2.5 Gigabit Controller)

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

3 x RJ-45 (LAN3 for Q870 only)

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

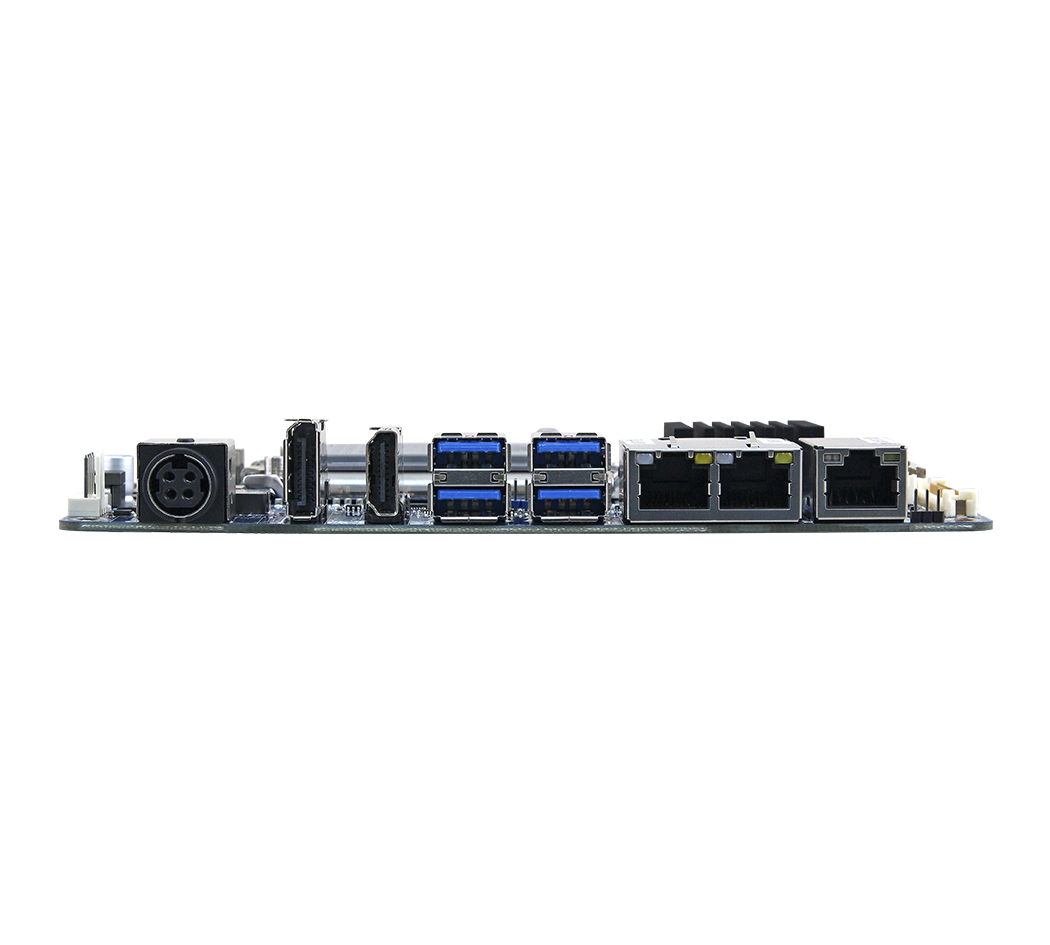

USB

4 x USB 3.2 Gen 2 at I/O for Q870
(2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1 at I/O for H810)
4 x USB 2.0 ports by pin header

COM Port

2 x RS-232/RS422/485, 2 x RS-232

GPIO

1 x 16-bit GPIO

Operating Temp.

0~60°C (32~140°F) w/HDD/SSD, ambient 0.5m/s air flow

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.70lbs (0.3kg)

Power Requirement

DC in +12V

Dimension (L x W)

(6.5" x 4.5")165 x 115 mm
