NUC-TGU
11th Gen Intel® Tiger Lake Fanless NUC Slim System
FEATURE
11th Gen Intel® Core™ i7/i5/i3 Processor
Intel® Iris® Xe Graphics
Single Memory Socket, Max. Up to 32GB DDR4 3200
Dual Display, HDMI 2.0b
Dual Intel® Gigabit Ethernet, 2.5GbE, 1GbE
Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD, I/O module
Supports iAMT, Kensington Lock, IP40
Default dTPM 2.0, Mounting Kit, Wi-Fi (CE/FCC) certificated
Specification
Download
System Information
Processor
Intel® Core™ i7-1185G7E Processor (15W)
Intel® Core™ i5-1145G7E Processor (15W)
Intel® Core™ i3-1115G4E Processor (15W)
System Memory
1 x 260-pin DDR4 SODIMM Socket, Supports Up to 32GB DDR4 3200MTs SDRAM
I/O Chipset
EC ITE IT5571VG-I-128/CX
BIOS Information
AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
TPM
TPM2.0
iAMT
Above Core i5 (selected SKUs)
SBC
NCM-TGU
Expansion
M.2
1 x M.2 Key-M 2280 (PCIe Gen4 x 4)
1 x M.2 Key-B 2242/3042/3052 with Internal SIM Slot (PCIe, SATA, USB 2.0)
1 x M.2 Key-E 2230 (PCIe, USB 2.0)
Storage
M.2
1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)
1 x M.2 Key-B 2242 ((PCIe Gen4 x 1, SATA3)

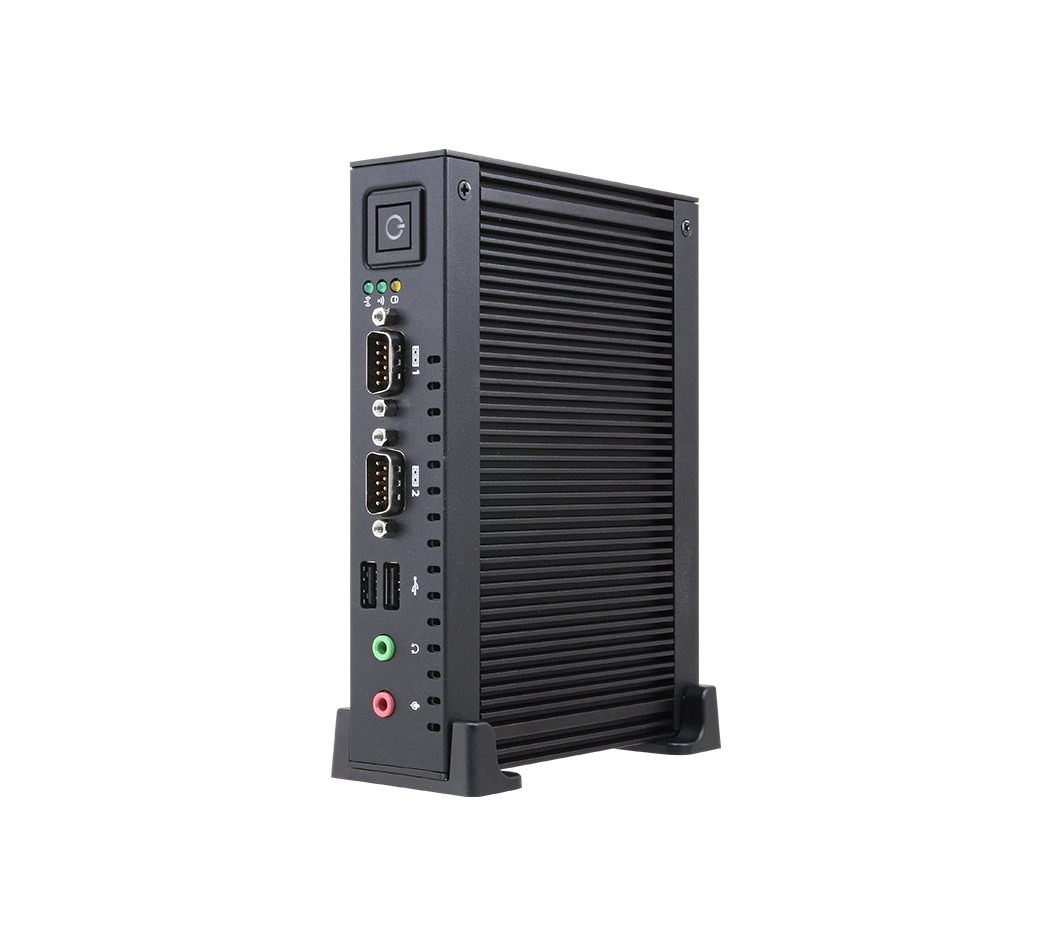

Front I/O
USB
2 x USB 2.0
Power Button
1 x Power On/Off w/LED
COM Port
2 x RS232/422/485 (BIOS)
LED Indicator
1 x Data Access
1 x Wi-Fi
1 x LTE
Audio
1 x Line-Out, 1 x Mic-In

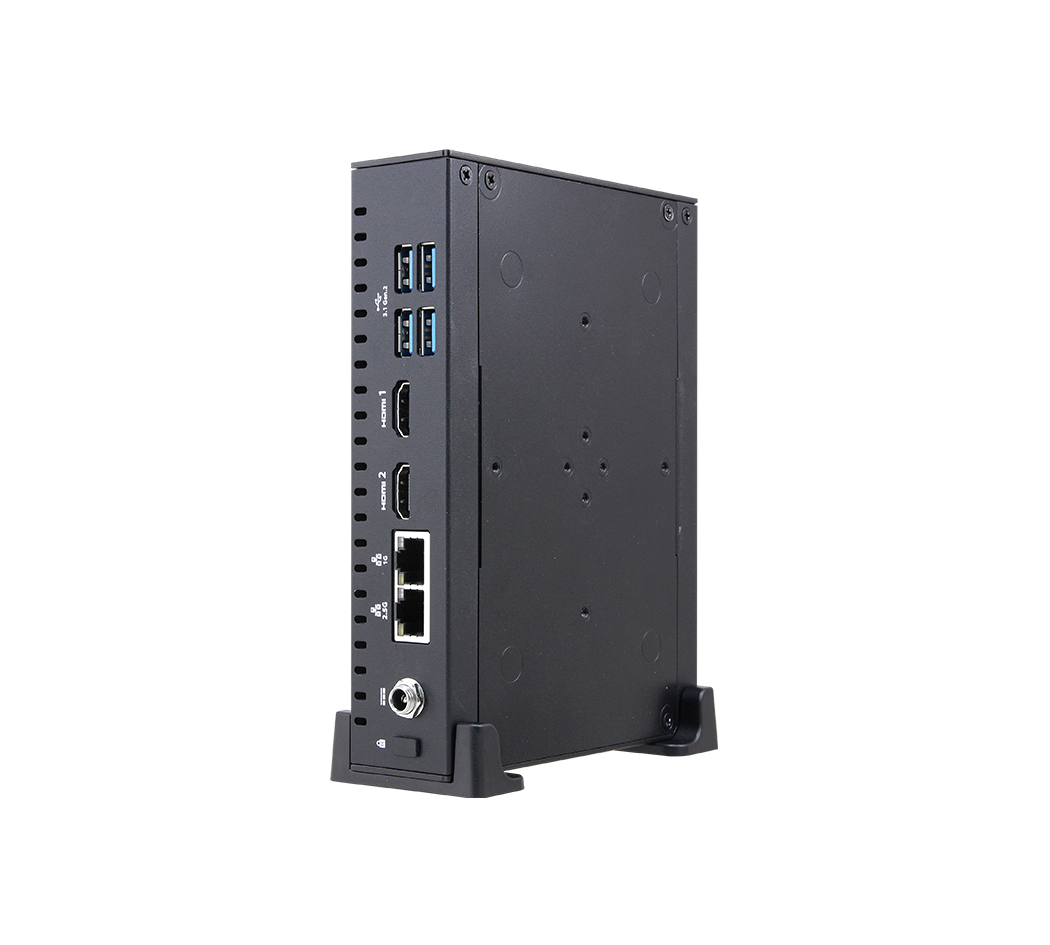

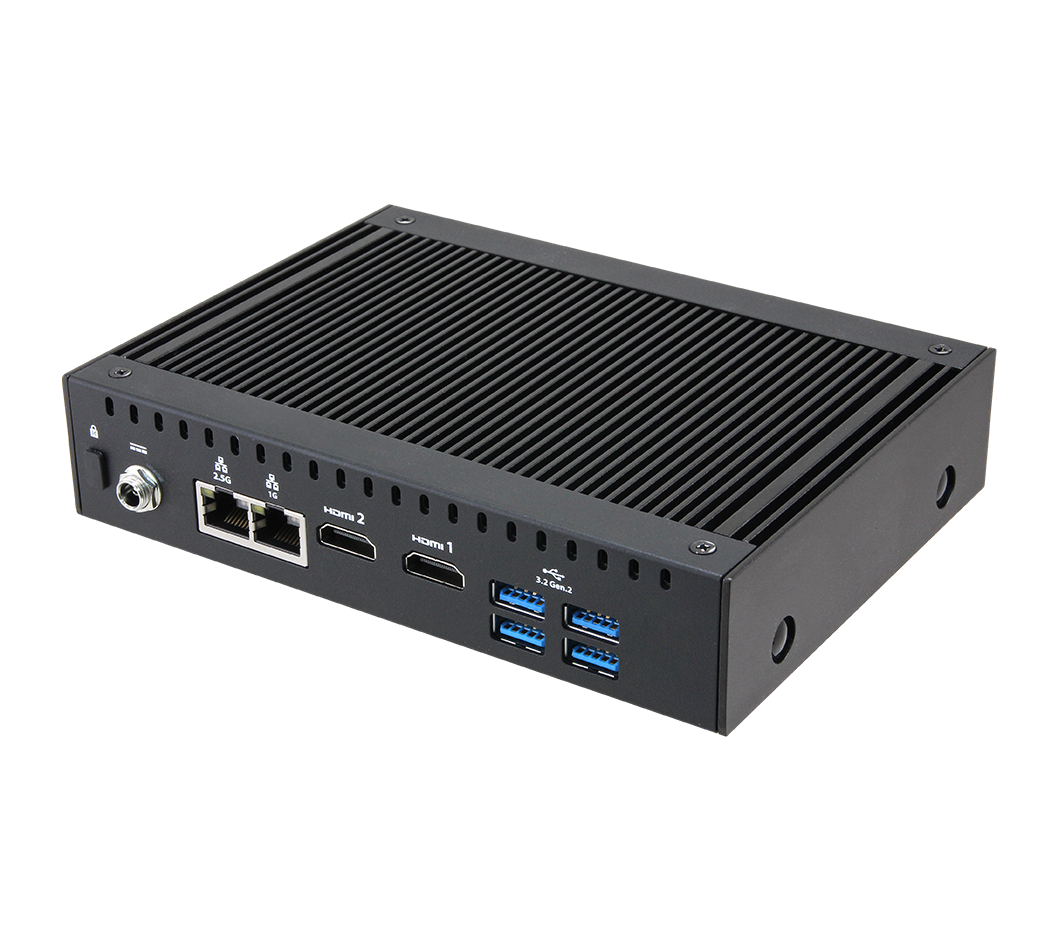

Rear I/O
USB
4 x USB 3.2 Gen.2 (10Gbp/s)
LAN Port
2 x RJ45
HDMI
2 x HDMI 2.0b
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Left I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Display
Graphic Chipset
Intel® Iris® Xe Graphics (i7-1165G7/i5-1135G7)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)
Resolution
2 x HDMI 2.0b: 4096x2304@60Hz
Audio
Audio Codec
RealTek ALC888S-VD2-GR
Ethernet
LAN Chipset
1 x Intel® I225-LM
1 x Intel® I219-LM
Specification
10/100/1000/2.5 Gigabit (I225-LM)
10/100/1000 Gigabit (I219-LM)
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
Note1: 60W for general mode (storage, communication, display, USB port, room temp.)
Note2: 120W for full load mode (general mode pluses max. workload and operating temp.)
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE, FCC Class B, UKCA
Wi-Fi 6E certified
Mechanical & Environmental
Operating Temp.
With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”)
Weight
0.85kg
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test
With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
IP Rating
40
Mounting Kit
Table Stand/Din Rail/VESA(Default)
Kensington Lock
1 x Kensington Lock
Ordering Information
Ordering Information
11th Gen Intel®Core™ Processor i7/i5/i3 Fanless NUC Slim System
NUC-TGU-I7E-A1-1R (i7-1185G7E)
NUC-TGU-I5E-A1-1R (i5-1145G7E)
NUC-TGU-I3E-A1-1R (i3-1115G4E)
