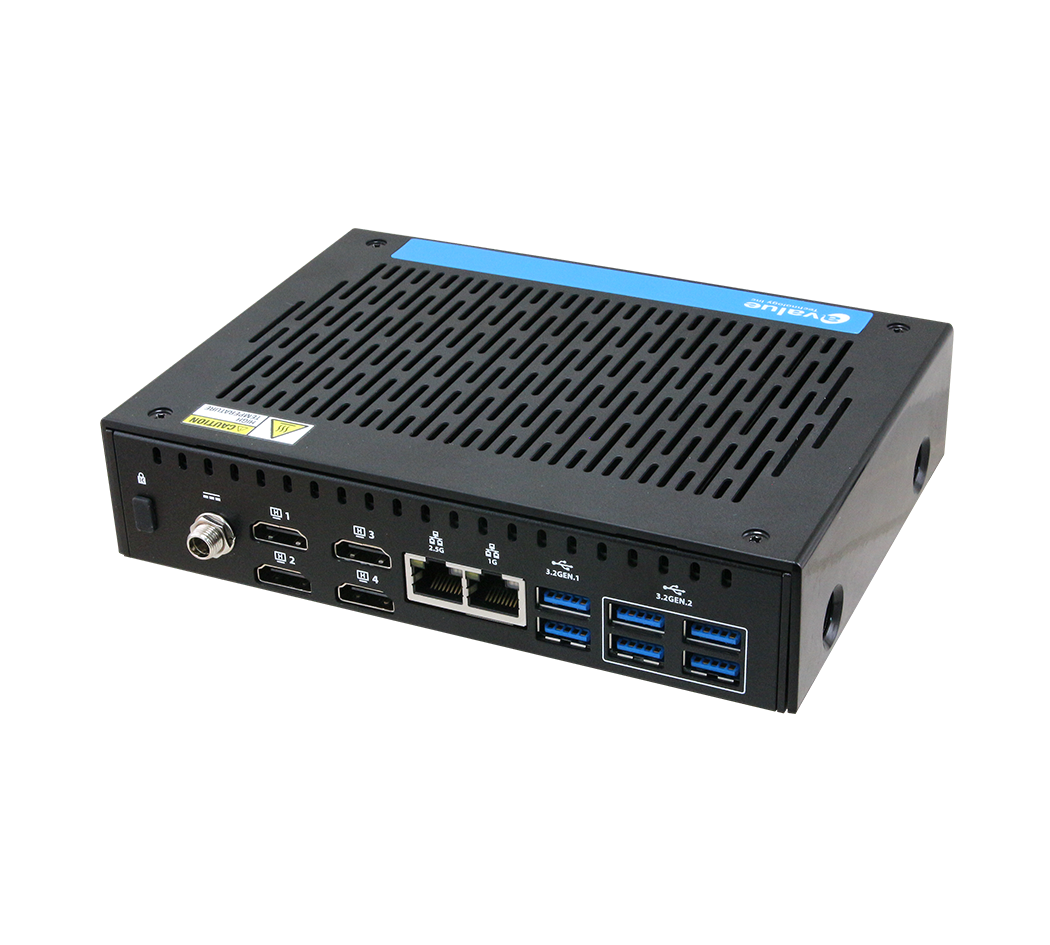

NUC-RPU
13th Generation Intel® Raptor Lake-U Fanless Ultra Slim System
FEATURE
13th Gen Intel® Core™ i7/i5/i3 (15W) Processors
Intel® Iris® Xe/ UHD Graphics
1-Memory Socket (Capacity Max. Up to 32GB DDR5 4800)
2-COM Port (RS-232/422/485)
2-Intel® Ethernet Controller (1GbE, 2.5GbE)
2-Audio Jack (Mic-In, Line-Out)
3-Expansion Slot (M.2 Key-E, Key-B, Key-M)
4-Display (HDMI 2.0b)
8-USB Port(2-USB 2.0, 4-USB3.2 Gen2, 2-USB3.2 Gen1)
Support Table Stand, VESA, DIN Rail mount
Support dTPM 2.0, iAMT
Specification
Download
System Information
Processor
Embedded (15W)
Intel® Core™ i7-1365UE Processor(Project Base)
Intel® Core™ i5-1345UE Processor(Project Base)
Intel® Core™ i5-1335UE Processor
Intel® Core™ i3-1315UE Processor
Non-Embedded (15W)
Intel® Core™ i7-1355U Processor(Project Base)
Intel® Core™ i5-1335U Processor(Project Base)
Intel® Core™ i3-1315U Processor(Project Base)
System Memory
1 x 262-Pin SO-DIMM Socket (Capacity Max. Up to 32GB DDR5 4800)
BIOS Information
AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
TPM
TPM 2.0
iAMT
i7-1365UE & i5-1345UE
SBC
NUC-RPU
Expansion
M.2
1 x M.2 Key-E 2230 (PCIe, USB 2.0, CNVi)
1 x M.2 Key-B 2242/3042/3052 with internal SIM slot (PCIe, SATA, USB 3.0, USB 2.0)
1 x M.2 Key-M 2280 (PCIe Gen4x4)
Storage
M.2
1 x M.2 Key-M 2280 NVMe (PCIe Gen4x4)(use wide temp. storage)
1 x M.2 Key-B 2242 SSD (SATA Gen3)(use wide temp. storage)
Please select wide temperature storage

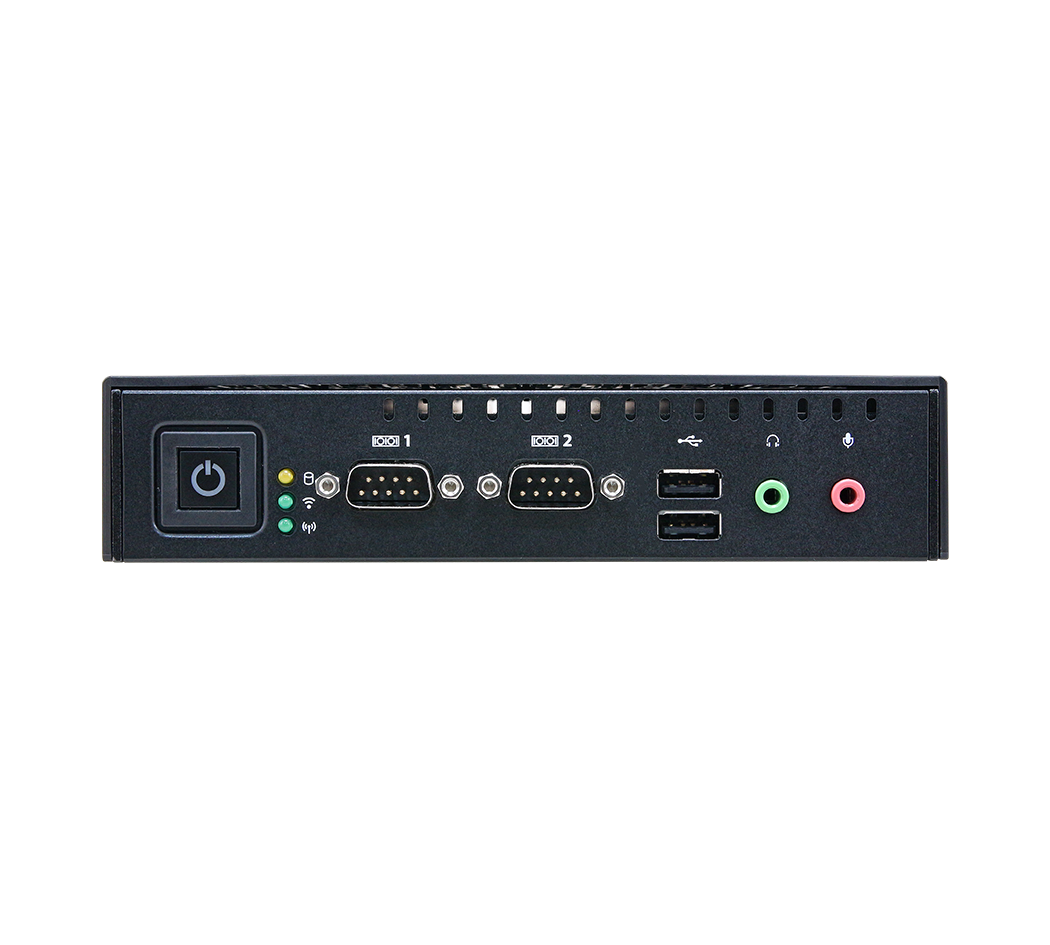

Front I/O
USB
2 x USB 2.0
Power Button
1 x Power Button with LED
COM Port
2 x RS-232/422/485 (Control by BIOS setting)
LED Indicator
1 x Storage LED (Yellow)
1 x LTE LED (Green)
1 x Wi-Fi LED (Green)
Audio
1 x Mic-In
1 x Line-Out

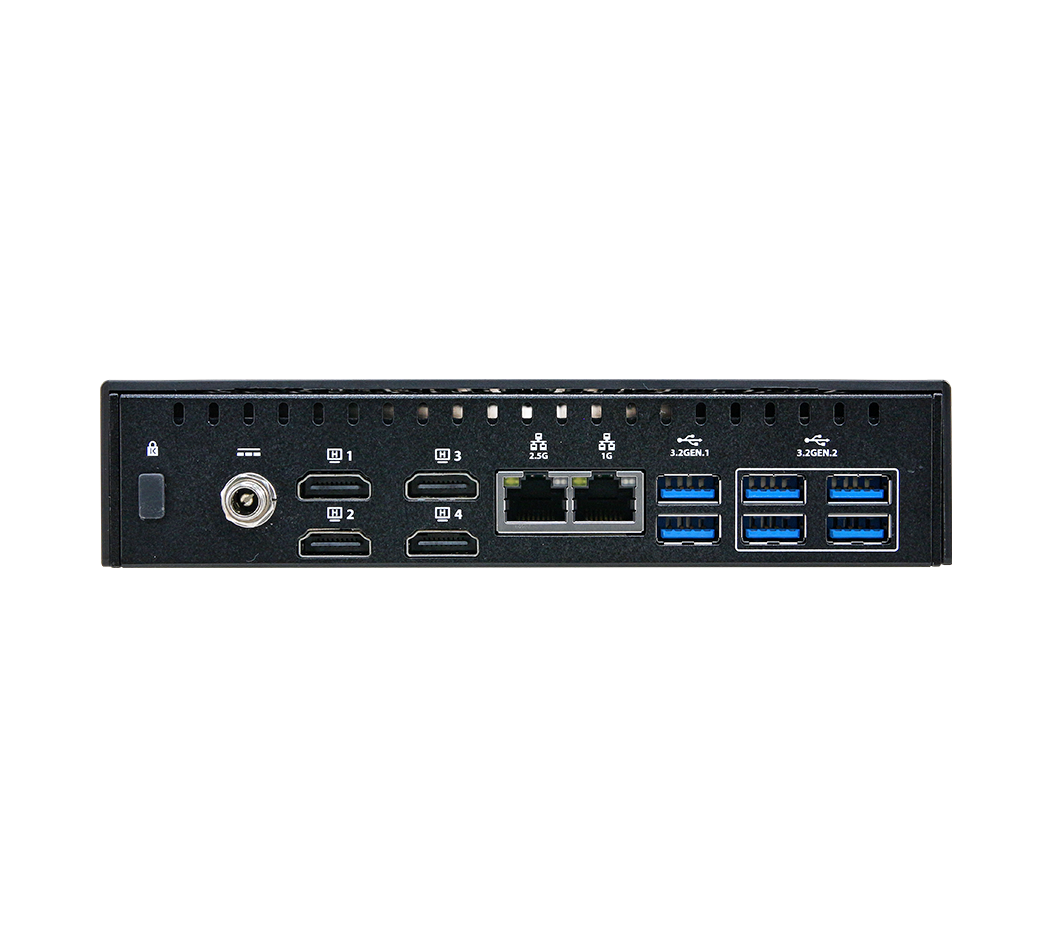

Rear I/O
USB
4 x USB 3.2 Gen2
2 x USB 3.2 Gen1
LAN Port
2-Intel® Ethernet Controller (1GbE, 2.5GbE)
HDMI
4 x HDMI 2.0b
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
2 x Covered antenna hole
Left I/O
Antenna
2 x Covered antenna hole
Display
Graphic Chipset
Intel® 13th Gen CPU integrated
Resolution
HDMI 2.0 4096x2304@60Hz
Audio
Audio Codec
RealTek ALC888S
Ethernet
LAN Chipset
1 x Intel® Ethernet Connection I219-LM
1 x Intel® Ethernet Controller I226-V
Power Requirement
Voltage Input Spec.
+12Vdc
Voltage Input Connector
Lockable DC Jack
ACPI
Single power ATX support S0, S3, S4, S5
Power Mode
AT/ATX (ATX default)
Adapter
AC to DC adapter
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE FCC Class B
Mechanical & Environmental
Operating Temp.
0°C ~ 50°C (32°F ~ 122°F)
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
174mm x 125mm x 38.7mm(6.85” x 4.92” x 1.52”)
Weight
0.85kg
Vibration Test
With SSD: 1.5 Grms, IEC60068-2-64, Random, 5~500 Hz,
30 min/axis
Shock Test
With SSD: 55Grms, IEC 60068-2-27, IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating
IP40
Mounting Kit
Table Stand/Din Rail/VESA
Kensington Lock
1 x Kensington Lock
Ordering Information
Ordering Information
NUC-RPU-I7E-A1-1R(I7-1365UE)
NUC-RPU-I5E-A1-1R(I5-1335UE)
NUC-RPU-I5E-A1-2R(I5-1345UE)
NUC-RPU-I3E-A1-1R(I3-1315UE)
NUC-RPU-I7-A1-1R(I7-1355U)
NUC-RPU-I5-A1-1R(I5-1335U)
NUC-RPU-I3-A1-1R(I3-1315U)
