NUC-EHL
Intel® Elkhart Lake Fanless NUC Slim System
FEATURE
Intel® Celeron® Processor J6412
Single DRAM Socket, Max. Up to 32GB DDR4 3200MHz
Rich I/O, 2-COM, 2-HDMI, 2-LAN (2.5GbE), 6-USB3.0, Micro SD slot, Kensington Lock
Fanless operating from 0~60°C
On Board TPM 2.0, Default Table Stand
IP40, HDMI2.0b, Wi-Fi (CE/FCC) certificated
Specification
Download
System Information
Processor
Intel® Celeron® Processor J6412
1.5M Cache, up to 2.60 GHz
System Memory
1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz
I/O Chipset
EC ITE IT5571VG
BIOS Information
AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
TPM
TPM2.0
SBC
NCM-EHL
Expansion
M.2
1 x M.2 Key-B 2242/3042 with Internal SIM Slot (PCIe, USB 2.0)
1 x M.2 Key-E 2230 (PCIe, USB 2.0)
Storage
M.2
1 x M.2 Key-B, 2242 (SATA3)
MicroSD Card
1 x Micro SD card slot

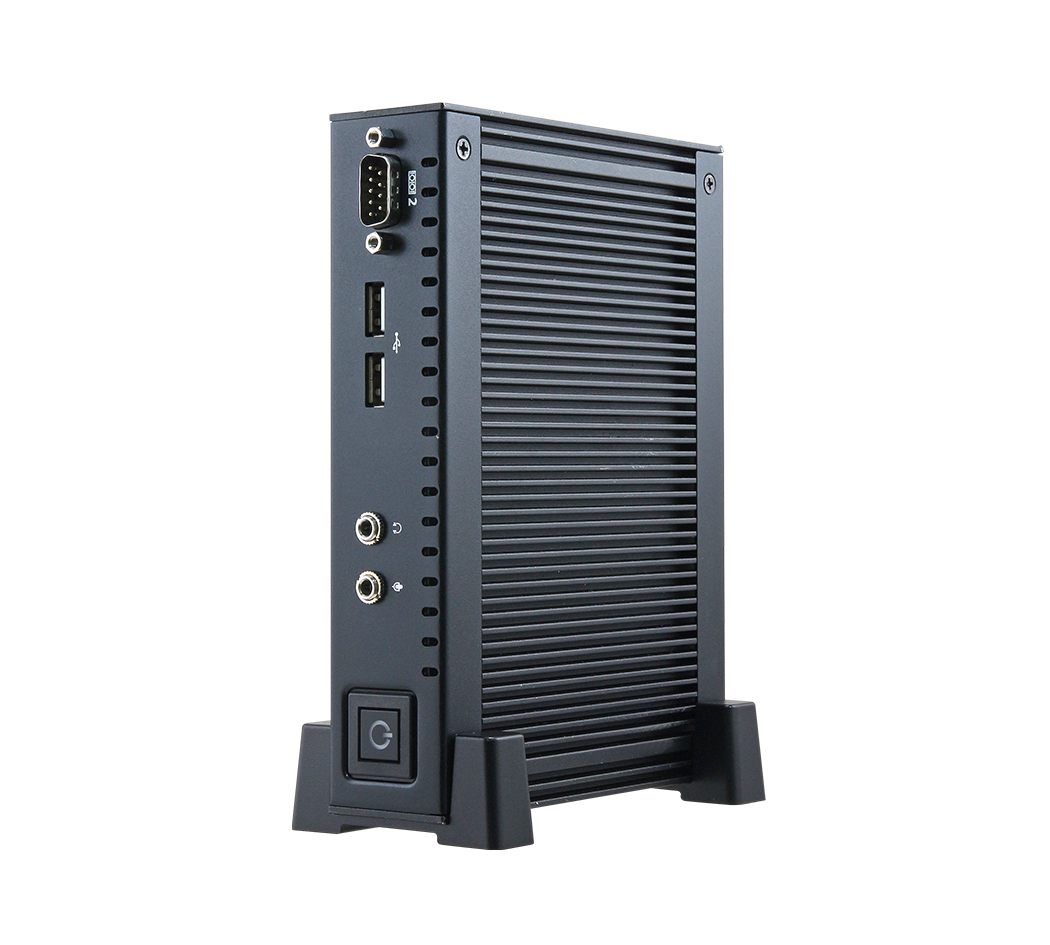

Front I/O
USB
2 x USB 2.0
Power Button
1 x Power On/Off w/ LED
COM Port
1 x RS232/422/485 (BIOS)
Audio
1 x Line-Out, 1 x Mic-In

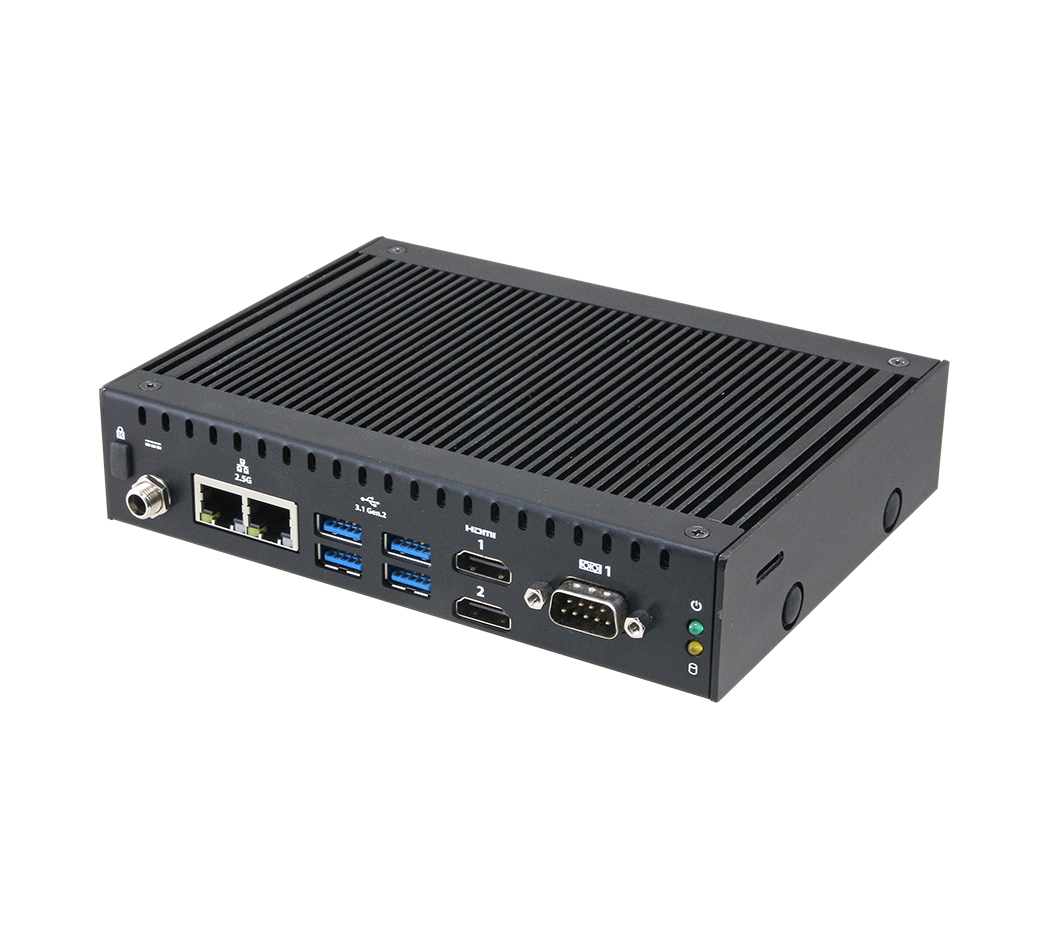

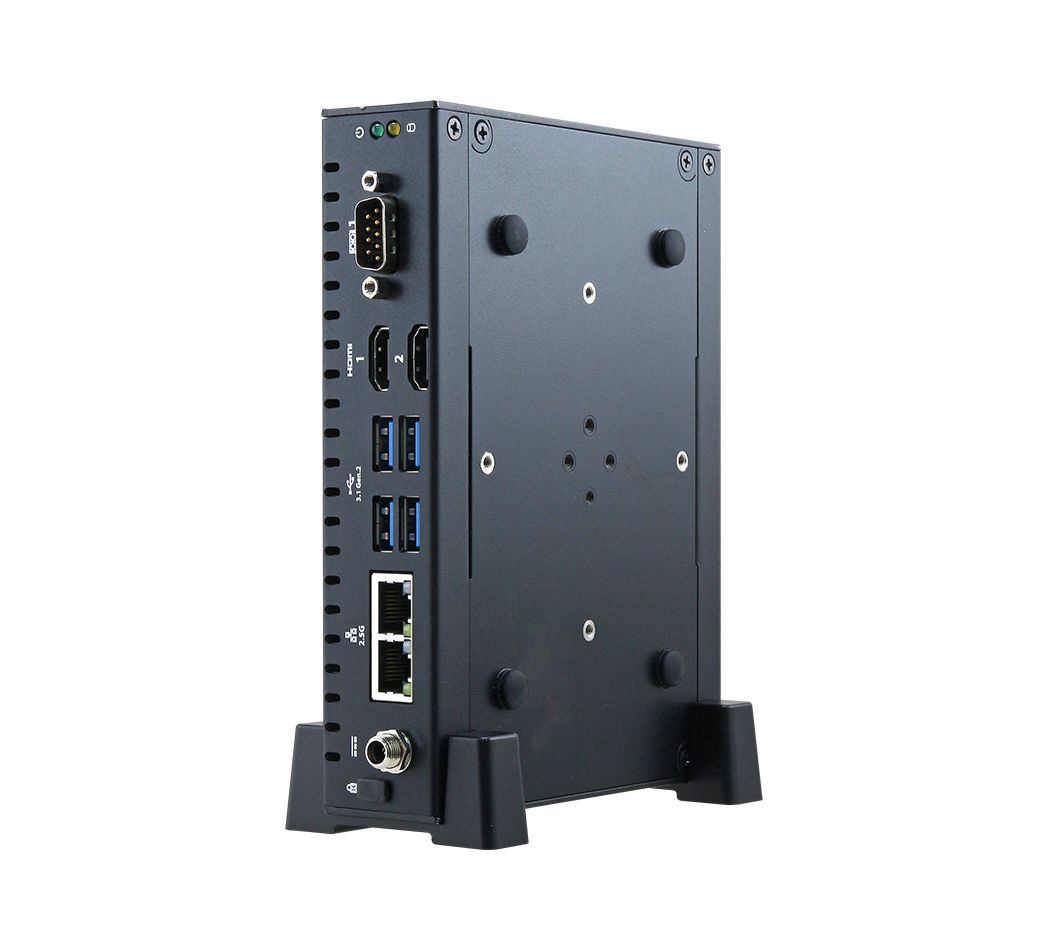

Rear I/O
USB
4 x USB 3.2 Gen.2 (10Gbp/s)
COM Port
1 x RS232/422/485 (BIOS)
LED Indicator
1 x Power on/off LED
1 x Storage Access LED
LAN Port
2 x RJ45
HDMI
2 x HDMI 2.0b
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Left I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
1 x Micro-SD Card Slot
Display
Graphic Chipset
Intel® UHD Graphics for 10th Gen Intel® Processors
Resolution
2 x HDMI 2.0b: 4096x2304@60Hz
Audio
Audio Codec
RealTek ALC888S
Ethernet
LAN Chipset
2 x Intel® I225-LM
Specification
10/100/1000/2.5 Gigabit
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE, FCC Class B, UKCA
Wi-Fi 6E RF certified
Mechanical & Environmental
Operating Temp.
With extended temperature peripherals: 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temp.
-30°C~70°C(-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”)
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test
With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
IP Rating
40
Mounting Kit
Table Stand (Default)
Din Rail/VESA (Optional)
Kensington Lock
1 x Kensington Lock
Ordering Information
Ordering Information
NUC-EHL-J12-A1-1R：Intel® Celeron® J6412 Fanless NUC Slim System
