Processor

Intel® Processor N97(4-Core, 6M, 12W)

System Memory

1 x 262-pin SODIMM Socket Max. up to 16GB DDR5 4800 MHz

I/O Chipset

ITE IT5782VG

BIOS Information

AMI 256Mb UEFI BIOS

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU Temperature, Voltage with Auto Throttling Control

TPM

TPM 2.0

SBC

NUC-ADN

M.2

1 x M.2 Key-E 2230 (PCIe, USB 2.0, CNVi)

2.5 Drive Bay

1 x 2.5” Drive Bay (7mm)

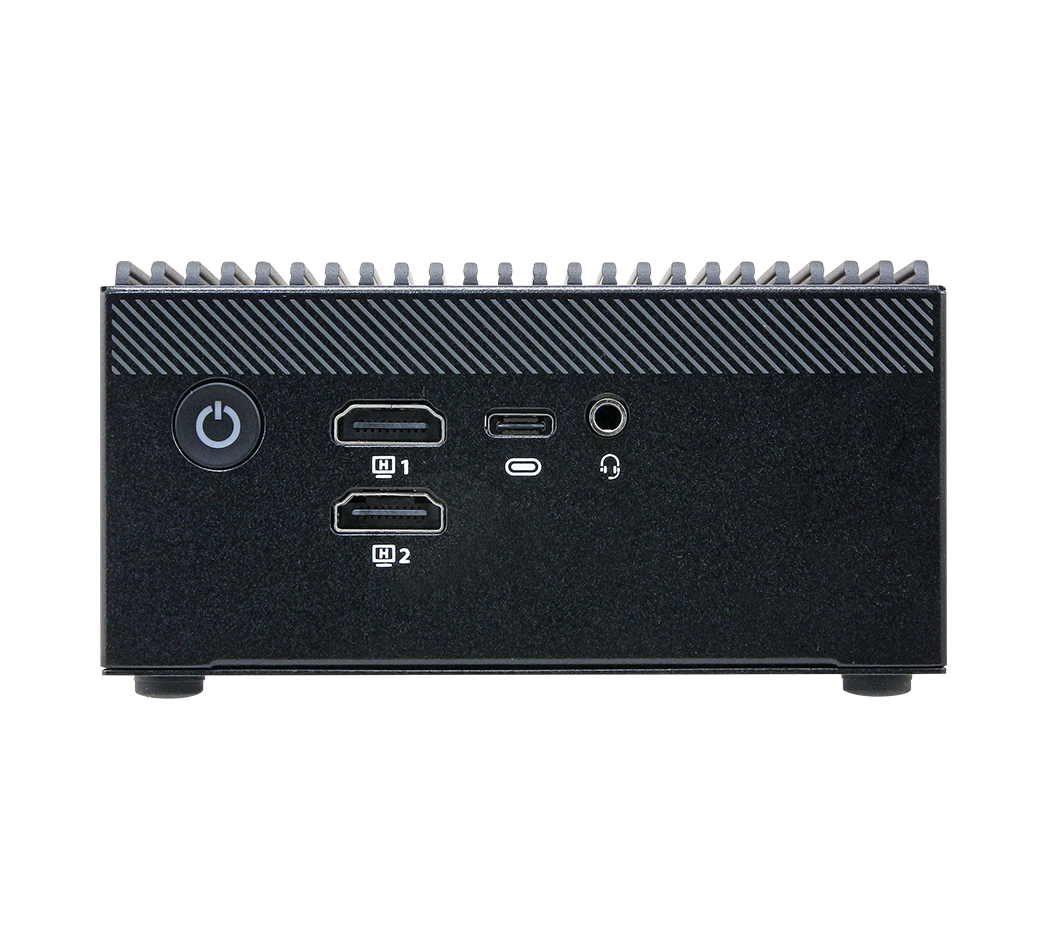

USB

1 x USB3.2 Gen 2 type C, support DP/PD Max. 30W

Power Button

1 x Power Button w/LED

LAN Port

2 x RJ45

Audio

1 x Audio Jack (Mic-in+Line-out)

HDMI

2 x HDMI 2.0b

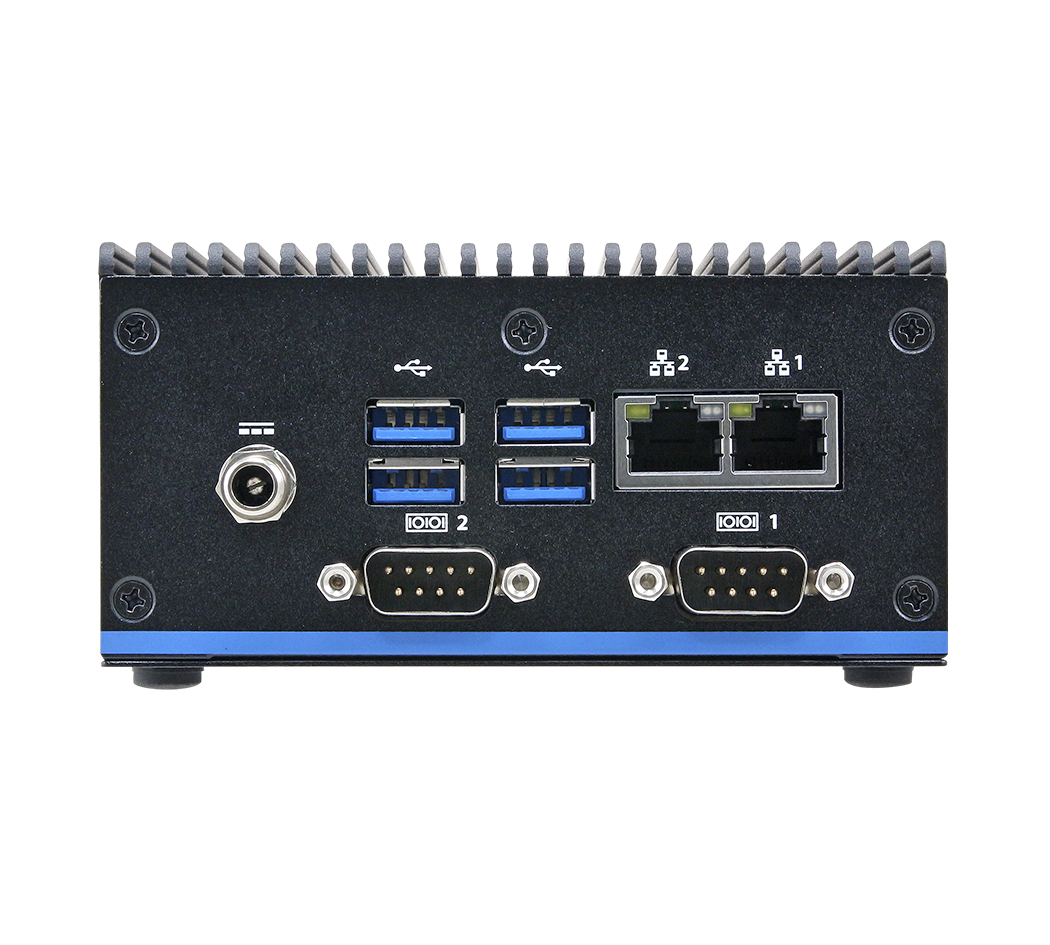

USB

4 x USB3.2 Gen 2

COM Port

1 x RS232/422/485 (BIOS)
1 x RS232

LAN Port

2 x RJ45 w/LED

AC/DC Input

1 x Lockable DC Jack

Antenna

2 x Antenna Mounting with
Dust Cover

Graphic Chipset

Intel® UHD Graphics

Resolution

HDMI 2.0b: 4096x2160@60Hz

Audio Codec

Realtek ALC888S

LAN Chipset

2 x Intel® Ethernet Controller I226V

Data Rate Per Port

10/100/1000/2.5G Base-Tx GbE compatible

Voltage Input Spec.

+12V DC-in

Voltage Input Connector

1 x Lockable DC Jack

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX (ATX is default setting)

Adapter

60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
Note1: 60W for general mode (w/o Type C PD workload)
Note2: 120W for full load mode (w/Type C PD workload)

OS

Win10, Win11, Linux

Certification Information

CE/FCC Class B, UKCA

Operating Temp.

0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

115mm x 111.2mm x58mm (4.58"x 3.78" x 2.28")

Vibration Test

With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis

Shock Test

With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

COM Port

2x2x5P 1.27mm header (RS-232, RS-232/422/485)

EC Debug

1x1x3P 2.0mm header

Front Panel

1x2x5P 1.27mm header (Include buzzer function)

SATA Signal

1x1x7P SATA Connector

eSPI

1x2x5P 1.27mm header

RTC Battery

1x1x2P 1.25mm wafer reserved for the wired RTC battery
*The lifetime of the RTC battery selecting needs to meet the DQV standard.

AT/ATX Selector

1x1x3P 2.0mm header (AT/ATX)

SATA PWR

1x1x2P 2.0mm wafer

Ordering Information

NUC-ADN-N97-A1-1R

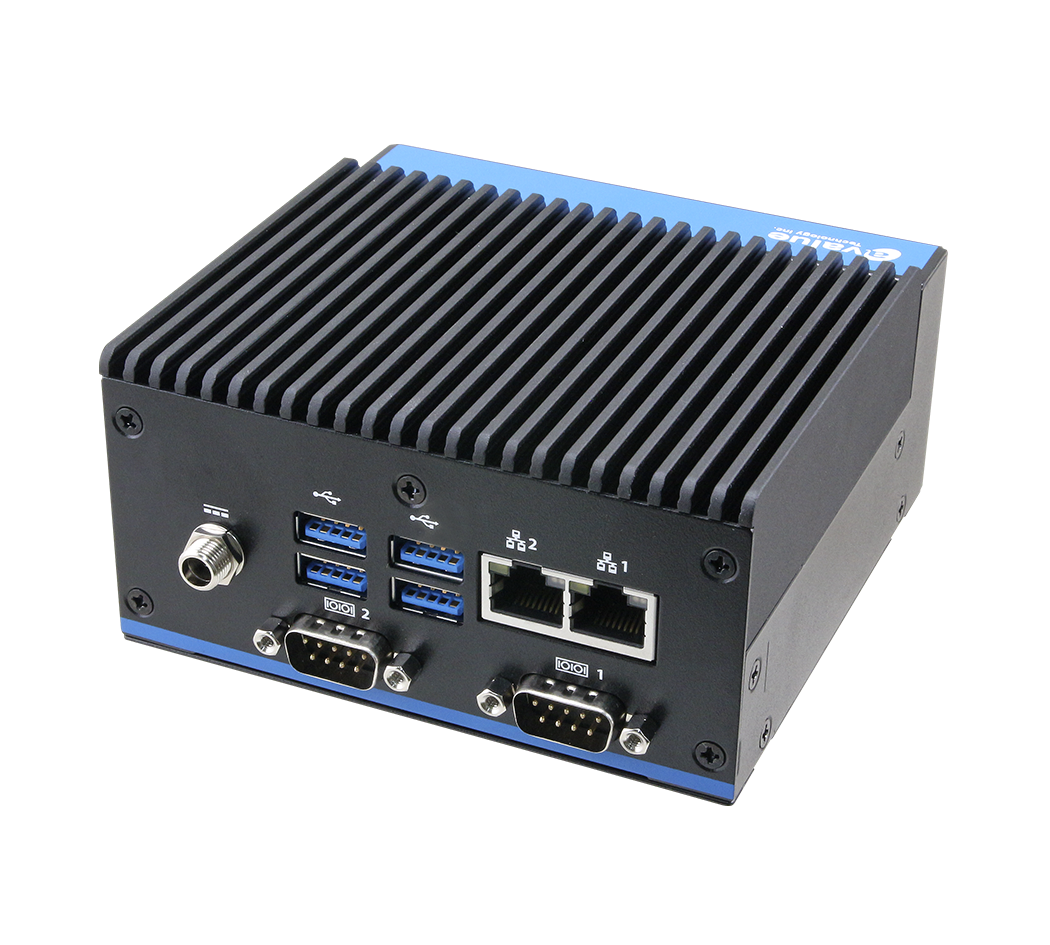

Intel® Alder Lake N97 Fanless NUC System
