EPC-TGU
Intel 11th Gen Intel® Tiger Lake UP3 Fanless Compact System
FEATURE
11th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
Intel® Iris® Xe/UHD Graphics
Single Memory Socket, Max. Up to 32GB DDR4 3200MT/s
Dual Display, DP++ 1.4
Dual Intel® Gigabit Ethernet, Dual 2.5GbE
Triple Storage, 2.5” Drive Bay, 2-M.2 SSD
Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD and I/O module
Support iAMT, SATA RAID 0/1
Default dTPM 2.0, Wall Mount Kit
Specification
Download
System Information
Processor
Intel® Core™ i7-1185G7E Processor (15W)
Intel® Core™ i5-1145G7E Processor (15W)
Intel® Core™ i3-1115G4E Processor (15W)
Intel® Celeron® 6305E Processor (15W)
System Memory
1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MTs
I/O Chipset
EC ITE IT8882
BIOS Information
AMI uEFI BIOS 256 Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor
System temperature monitoring and Voltages monitoring
RAID
RAID 0/1 (SATA)
TPM
TPM 2.0
iAMT
Above Core i5 (selected SKUs)
SBC
ECM-TGU
Expansion
M.2
1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)
1 x M.2 Key-B 2242/3042 (SATA3)
Storage
M.2
1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)
1 x M.2 Key-B 2242/3042 (SATA3)
2.5 Drive Bay
1 x Internal 2.5 Drive Bay (7mm)

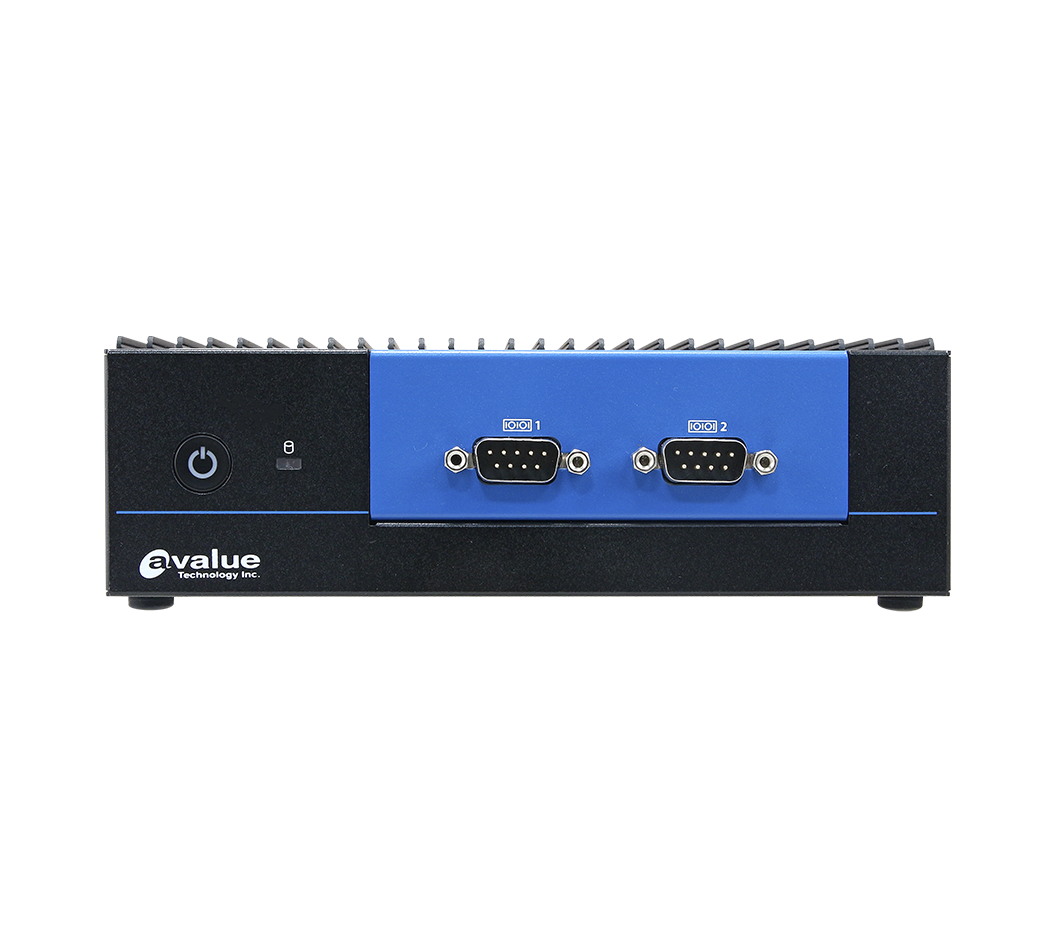

Front I/O
Power Button
1 x Power Button
COM Port
2 x RS232/422/485 (BIOS)

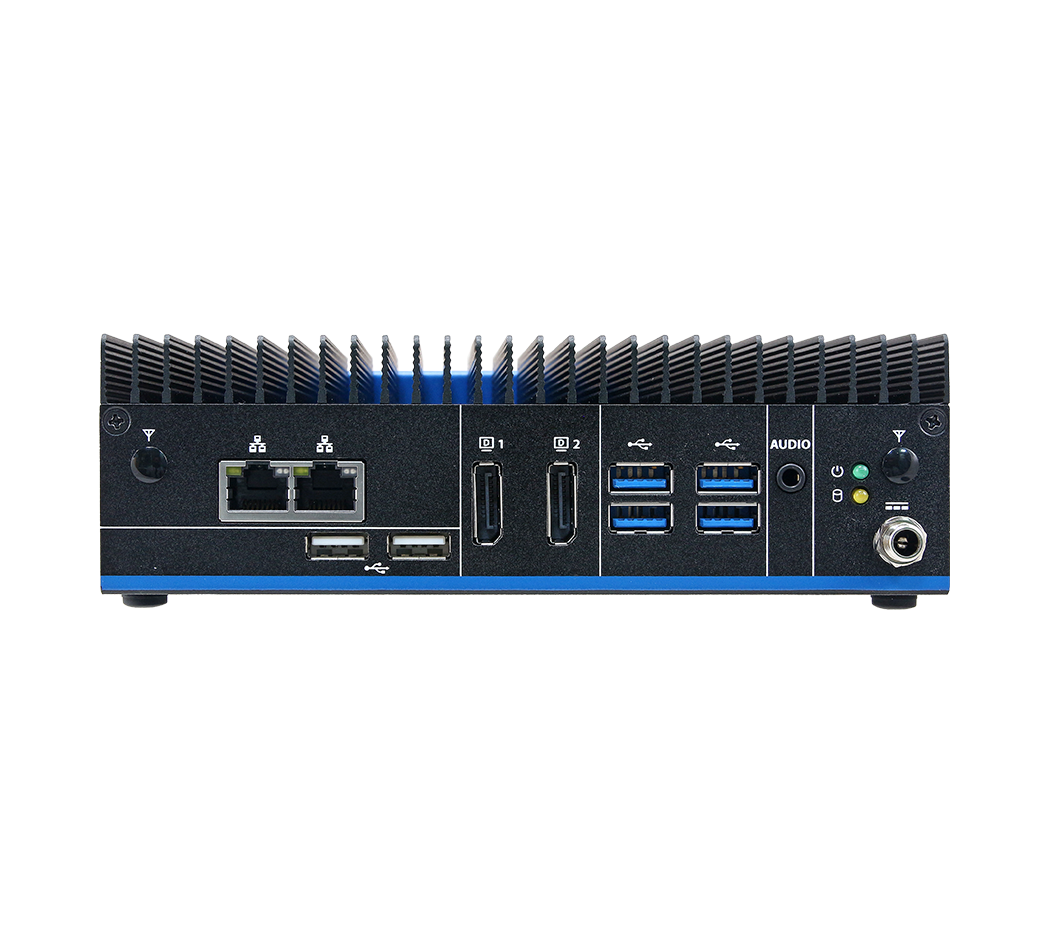

Rear I/O
USB
4 x USB 3.2 Gen.2 (10Gbp/s)
2 x USB 2.0
LED Indicator
1 x Power On/Off LED
1 x Storage Access LED
LAN Port
2 x RJ45 (Max. Up to 3-RJ45 in project base)
Audio
1 x Combo Jack (Mic-in, Line-out)
DP
2 x DP++
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
Lockable DC Jack
Display
Graphic Chipset
Intel® Iris® Xe Graphics (i7-1185G7E/i5-1145G7E)
Intel® Iris® UHD Graphics (i3-1115G4E/6305E)
Resolution
DP++ 1.4: 4096x2304@60Hz
DP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz
Audio
Audio Codec
Realtek ALC888S
Ethernet
LAN Chipset
2 x Intel® I226LM
Specification
2 x 10/100/1000/2.5 Gigabit
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
Note1: 60W for general mode (storage, communication, display, USB port, room temp.)
Nore2: 120W for full load mode (general mode pluses max. workload and operating temp.)
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE, FCC Class B, UKCA
Mechanical & Environmental
Operating Temp.
With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
177mm x 123mm x 55mm (7” x 4.8” x 2.2")
Vibration Test
With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test
With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
Stand
Wall Mount kit
Ordering Information
Ordering Information
Intel® 11th Gen Core™ i7/i5/i3/Celeron Processor
EPC-TGU-85-B1-1R (i7-1185G7E)
EPC-TGU-45-B1-1R (i5-1145G7E)
EPC-TGU-15-B1-1R (i3-1115G4E)
EPC-TGU-05-B1-1R (6305E)
