Processor

Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz)

System Memory

1 x 260-Pin SO-DIMM Socket, Max. Up to 16 GB DDR4 2133MHz

BIOS Information

AMI uEFI BIOS, 128Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

Monitoring System Temperature and Voltage with Auto Throttling Control

SBC

ECM-SKLU

M.2

1 x M.2 (2242) B-Key

PCIe

1 x Full Size Mini PCIe (mSATA)

M.2

1 x M.2 (2242) B-Key

mSATA

1 x mSATA

2.5 Drive Bay

1 x 2.5" Drive Bay (7mm)

Power Button

1 x Power Button

LED Indicator

1 x Storage Access LED

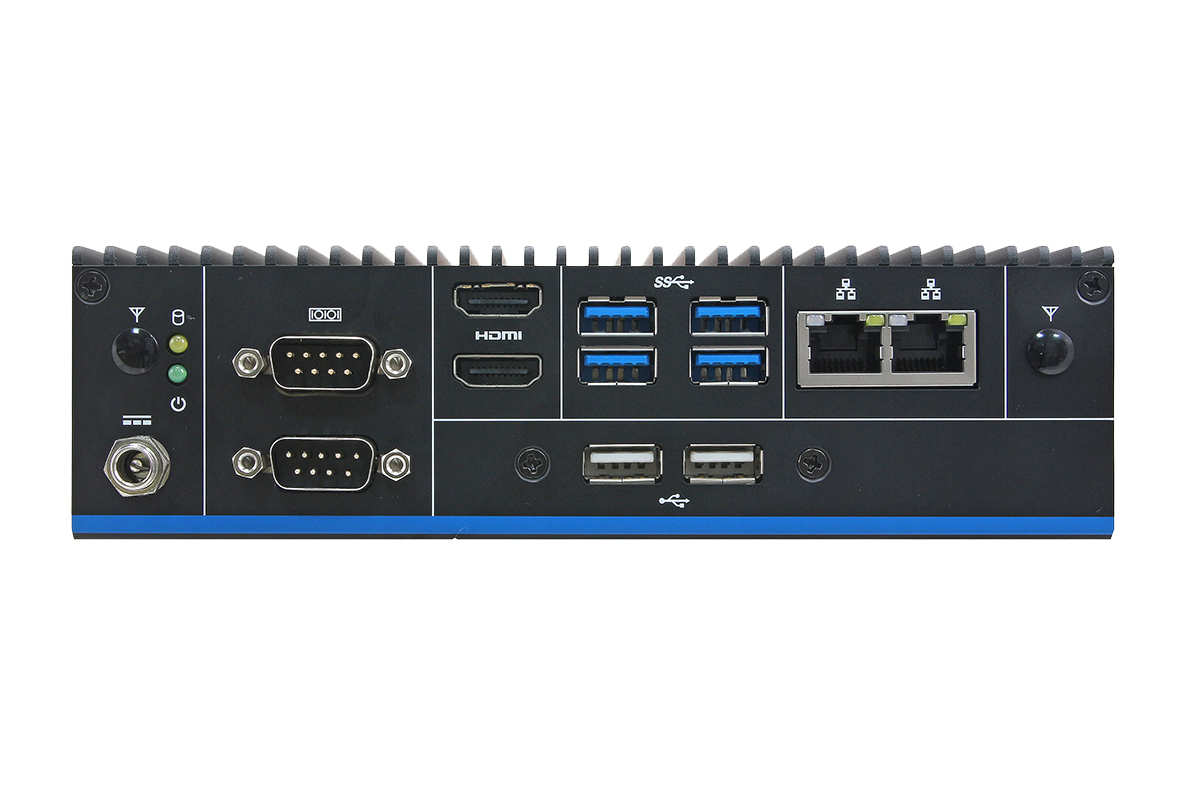

USB

2 x USB 2.0
4 x USB 3.0

COM Port

1 x RS-232
1 x RS-232/422/485 (Cable&BIOS)

LED Indicator

1 x Power on/off LED
1 x Storage Access LED

LAN Port

2 x RJ-45

HDMI

2 x HDMI 1.4

Antenna

2 x Antenna Mounting with Dust Protection Cover

AC/DC Input

1 x Lockable DC Jack

Graphic Chipset

Intel® HD Graphics 520 (i7-6600U, i-5-6300U, i3-6100U)
Intel® HD Graphics 510 (Celeron 3955U)

Resolution

2 x HDMI 1.4: Max. Resolution 4096x2160@24Hz

Audio Codec

Realtek ALC888S

LAN Chipset

1 x Intel® I210AT
1 x Intel® I219LM

Specification

10/100/1000 Base-Tx Gigabit Ethernet Compatible

ACPI

Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Adapter

Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter

OS

Win 10, Win 8, Win 7, Linux

Certification Information

CE, FCC Class B, UKCA

Operating Temp.

With extended temperature peripherals: -10°C ~ 60°C (14°F ~ 140°F) with 0.5m/s air flow
With extended temperature peripherals: -10°C ~ 50°C (14°F ~ 122°F) with 0.2m/s air flow
With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow

Storage Temp.

-30~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

177mm x 123mm x 50mm (7” x 4.8” x 2.0")

Weight

2.65lbs(1.2KG)

Vibration Test

With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis

Shock Test

With SSD : 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

Mounting Kit

Stand (Default)
VESA Mount kit (Factory Option)
Din Rail kit (Factory Option)

Ordering Information

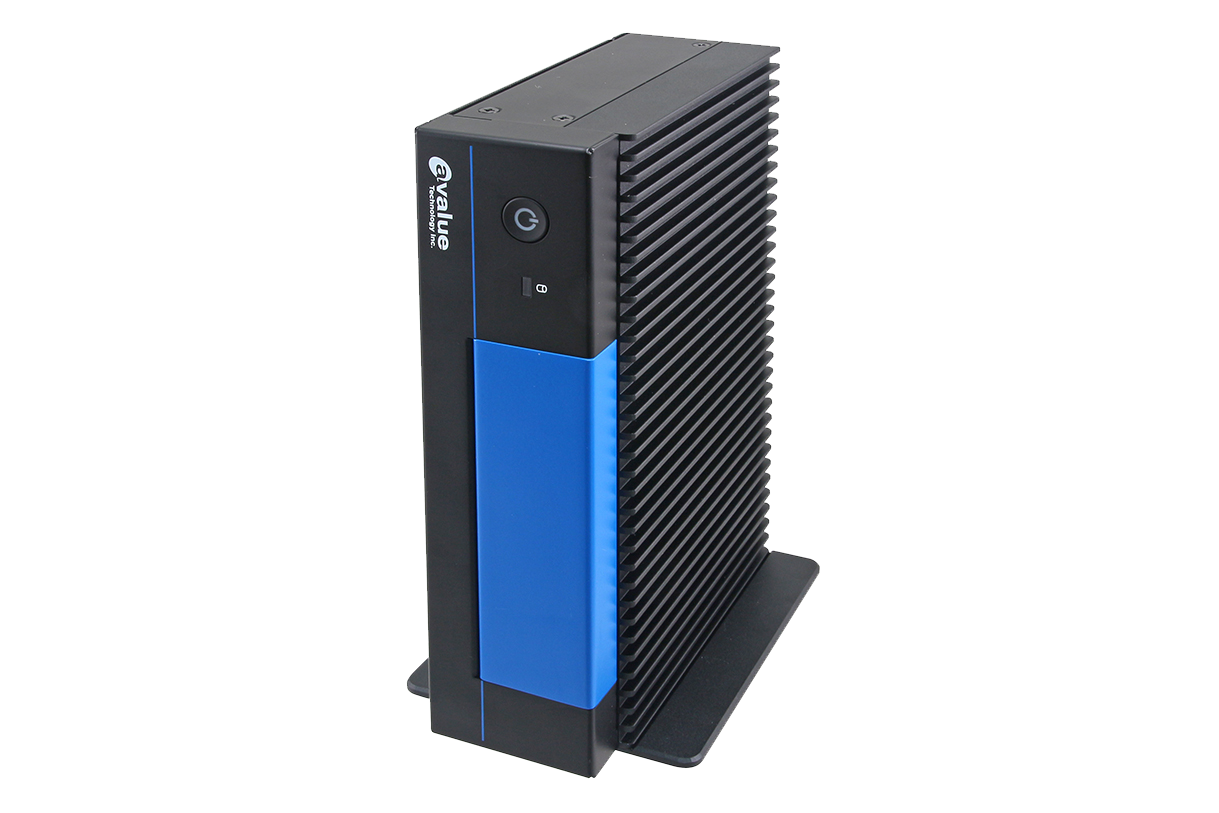

6th Gen Intel®Core™ Processor Core™ i7/i5/i3/Celeron Fanless Tiny System

EPC-SKLU-66-C2-1R (i7-6600U)
EPC-SKLU-63-C2-1R (i5-6300U)
EPC-SKLU-61-C2-1R (i3-6100U)
EPC-SKLU-39-C2-1R (3955U)
