EPC-RPU

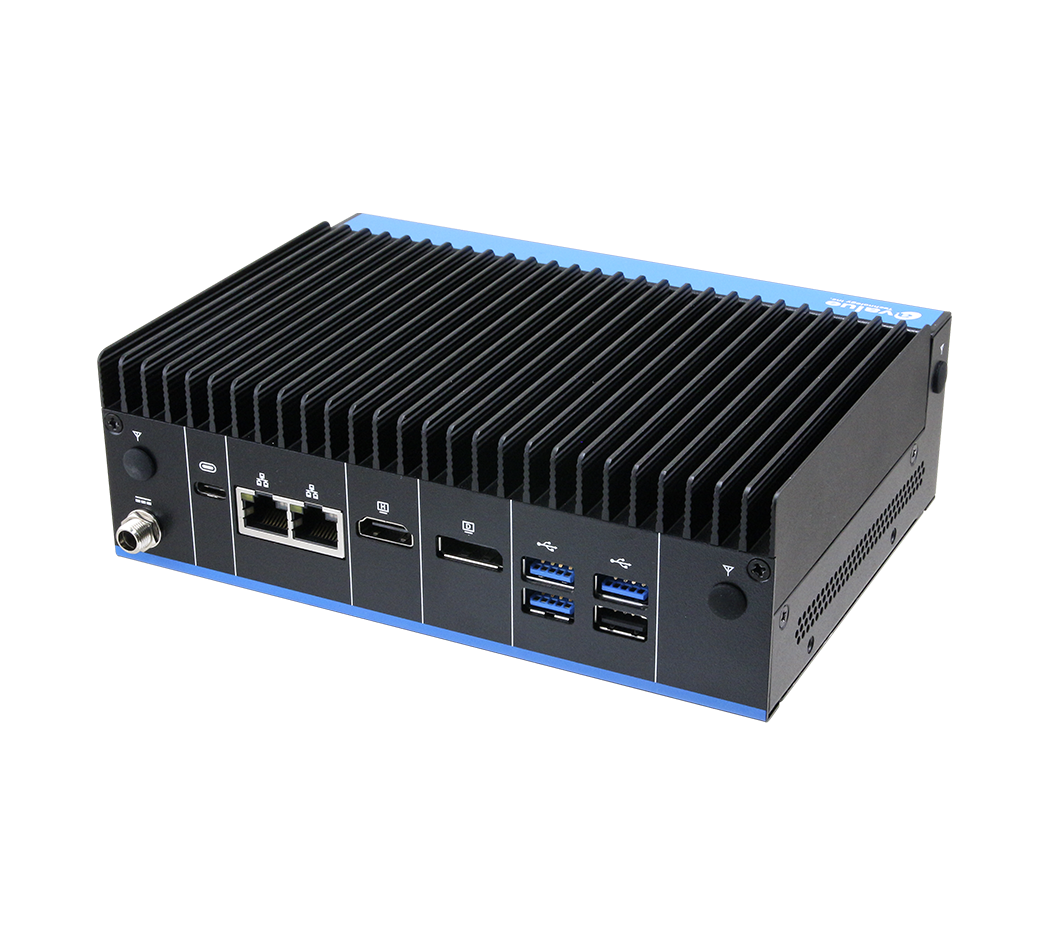

13th Gen Intel® Raptor Lake-P Fanless Compact System
FEATURE
Intel® 13th Gen Raptor Lake-P Core™ Processor
Intel® Iris® Xe / UHD Graphics for 13th Gen Intel® Processors
One SO-DIMM Socket, Max. Up Max. up to 32GB DDR5 5200
Triple Display, HDMI 2.0, DP 1.4 , USB Type C (Support DP)
Dual Intel® 2.5 Gigabit Ethernet
Triple Storage , 2.5" Drive Bay, M.2 Key B, Key-M (NVMe)
Support TPM2.0, RAID 0/1, Wall Mount
12-24V DC Wide Range Power Input
Specification
Download
Related Information
System Information
Processor
Intel® Core™ i5-1335UE Processor (15W)
Intel® Core™ i3-1315UE Processor (15W)
System Memory
1 x 262-pin SO-DIMM socket Max. up to 32GB DDR5 4800MHz
I/O Chipset
EC iTE IT5782VG
BIOS Information
AMI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor
System temperature monitoring and Voltages monitoring
RAID
RAID 0/1 (SATA)
TPM
Onboard TPM 2.0 IC
SBC
ECM-RPL
Expansion
M.2
1 x M.2 Key-B 3042/3052/2242 (SATA3, USB3.0, w/SIM Card Slot)
1 x M.2 Key-M 2280(PCIe,Gen4x4)
1 x M.2 Key-E 2230(PCIe, USB2.0)
Storage
M.2
1 x M.2 Key-B 2242 (SATA3)
1 x M.2 Key-M 2280 (NVMe, PCIe Gen4 x 4)
2.5 Drive Bay
1 x Internal 2.5 Drive Bay (7mm)

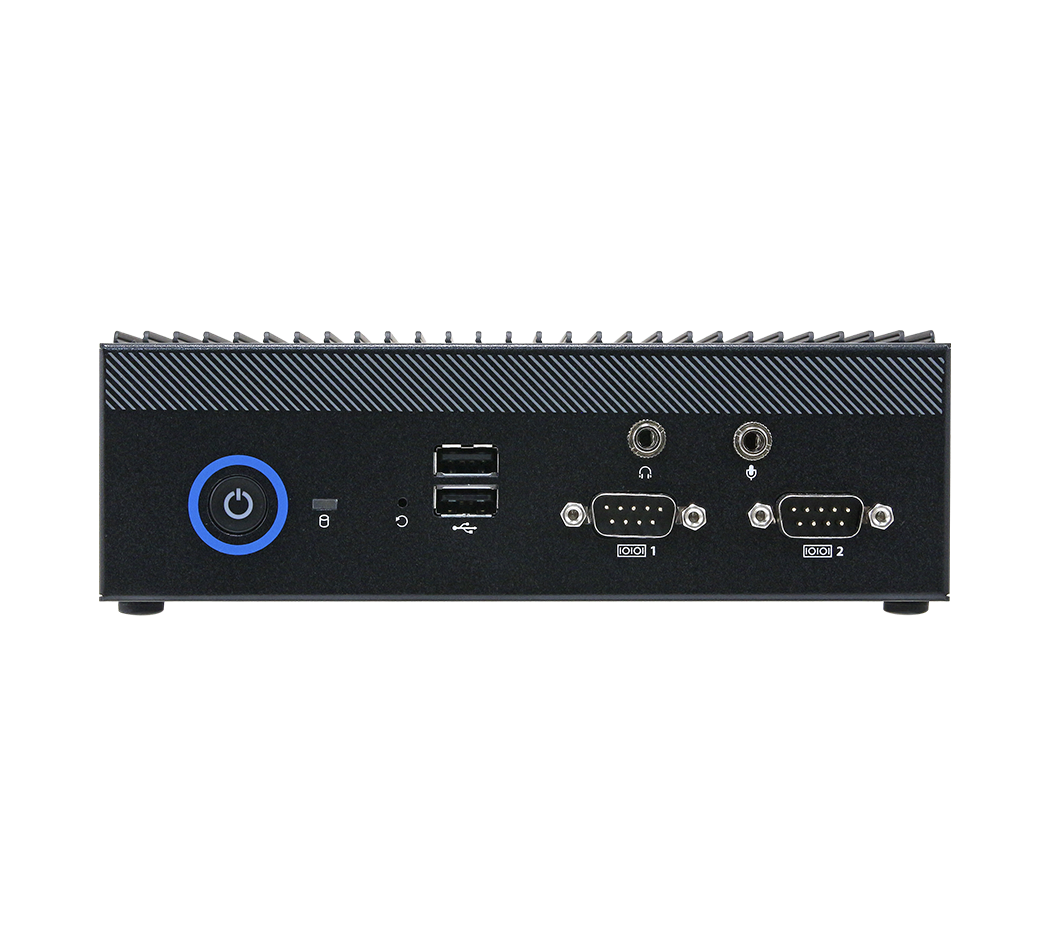

Front I/O
USB
2 x USB 2.0
Power Button
1 x Power Button
Reset Button
1 x Reset button
COM Port
2 x RS232/422/485
LED Indicator
1 x Power on/off LED
1 x Storage Access LED
Audio
1 x Mic-in
1 x Line-out

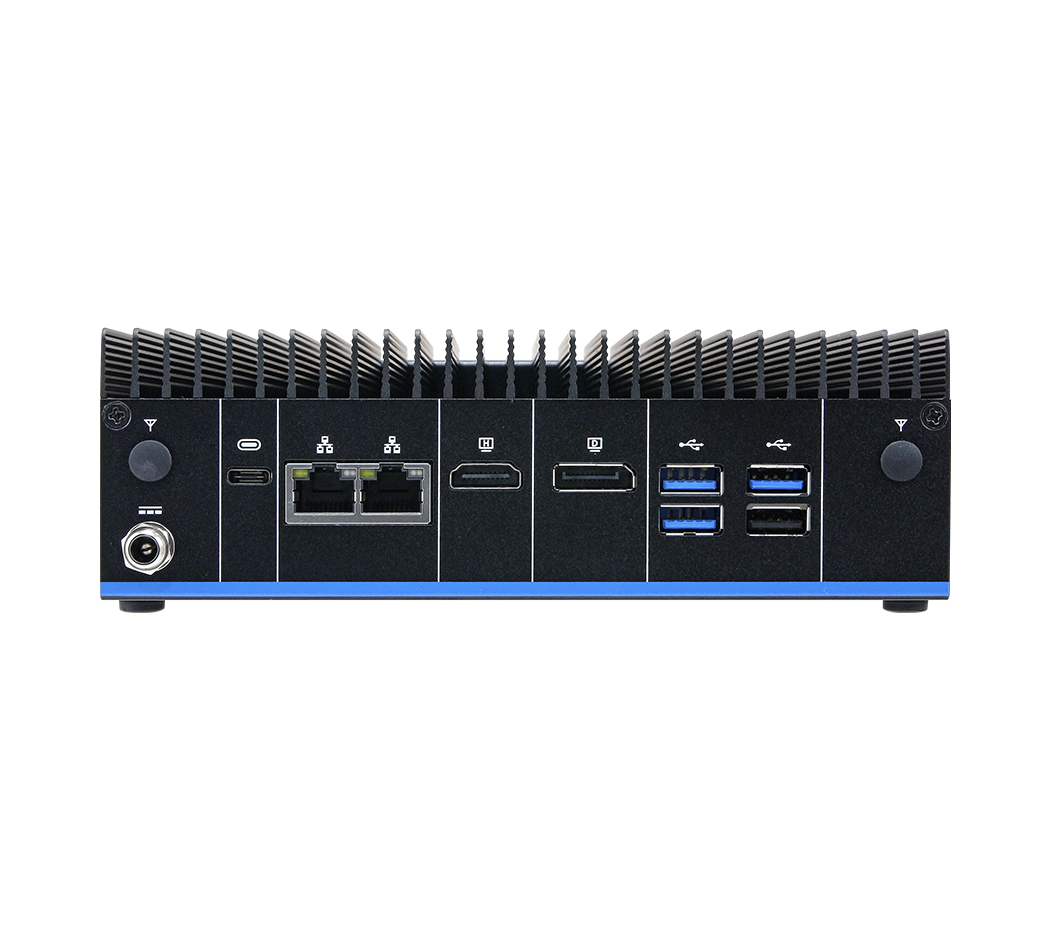

Rear I/O
USB
3 x USB 3.2 Gen2
4 x USB 2.0
1 x USB Type C support DP/USB 3.2 Gen 1/PD 5V x 3A
LAN Port
2 x RJ45
DP
1 x DP 2.1
HDMI
1 x HDMI 2.0b
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
1 x Antenna Mounting with Dust Protection Cover
Left I/O
Antenna
1 x Antenna Mounting with Dust Protection Cover
Display
Graphic Chipset
Intel® Iris®Xe/UHD Graphics for 13th Gen Intel® Processors
Resolution
1 x DP 1.4 : Max. 7680 x 4320@60Hz
1 x HDMI 2.0b : Max. 4096 x 2160@60Hz
1 x DP 1.4 (from USB Type C): Max. 4096 x 2304@60Hz
Audio
Audio Codec
Realtek ALC888S
Ethernet
LAN Chipset
2 x Intel® I226LM
Specification
2 x 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
Voltage Input Spec.
Typical 12V/24V Power Input
Voltage Input Connector
Lockable DC Jack
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/10A AC-DC 120W Adapter
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE, FCC, Class B, UKCA
Mechanical & Environmental
Operating Temp.
With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
177x 126 x 57mm (6.97” x 4.94” x 2.24")
Vibration Test
With SSD : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test
With SSD : 10 Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
Wall Mount Kit
Ordering Information
Ordering Information
13th Gen Intel® Raptor Lake-P Core™ i5/i3 Fanless Compact System
EPC-RPU-I5E-A1-1R (i5-1335UE)
EPC-RPU-I3E-A1-1R (i3-1315UE)
