EPC-EHL-8COM
Intel® Elkhart Lake Fanless Compact System
FEATURE
Intel Atom® x6413E Processor
Intel® UHD Graphics, Max. Up to 32EU
1-Memory Socket, Max. Up to 32GB DDR4 3200
Rich I/O, 4-USB, 1-HDMI, 1-DP, 2-LAN, 8-RS232, 1-Mic-in, 1-Line-out
2-M.2, Key-E/B for Wi-Fi, LTE, SSD, I/O module
Fanless Operating Temp, -40 ~ 70°C
Wide Range DC Power Input, +9V~36V
Default dTPM 2.0, Wall Mount Kit
Specification
Download
System Information
Processor
Intel Atom® x6413E Processor
System Memory
1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MTs
BIOS Information
AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor
Monitoring System Temperature and Voltage with Auto Throttling Control
TPM
TPM 2.0
SBC
ECM-EHL
Expansion
M.2
1 x M.2 (Key-E, 2230, PCIex1, USB2.0)
Storage
2.5 Drive Bay
1 x 2.5 Drive Bay (7mm)
Front I/O
Power Button
1 x Power Button
COM Port
4 x RS232
LED Indicator
1 x Power on/off LED
1 x Storage Access LED

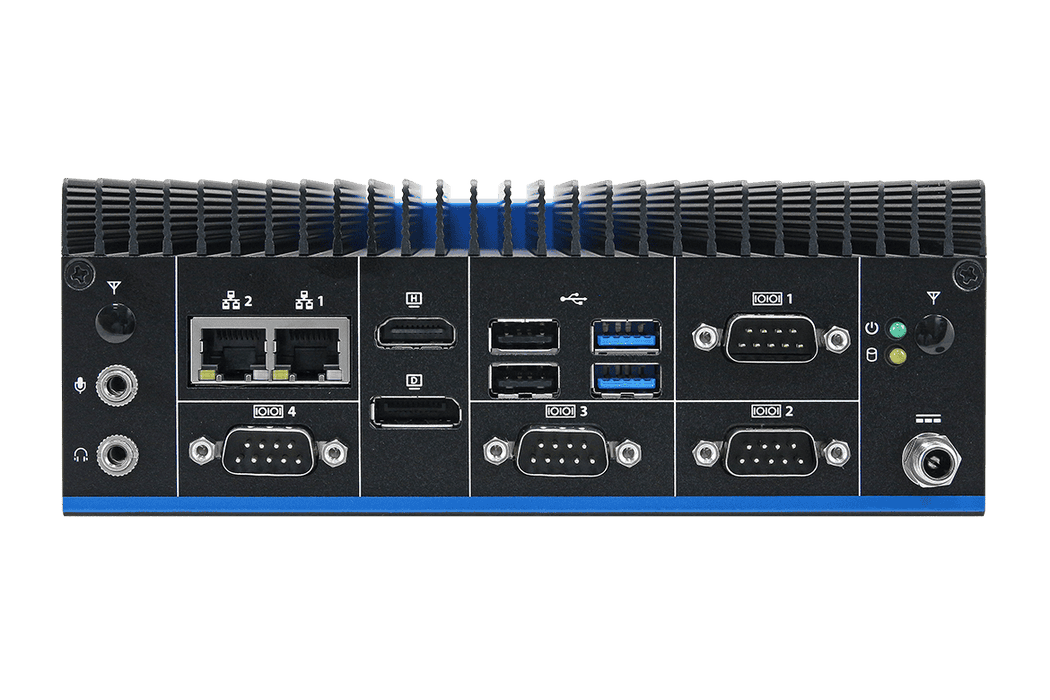

Rear I/O
USB
2 x USB 3.1 Gen2 (10Gbps)
2 x USB2.0
COM Port
4 x RS232
LED Indicator
1 x Power on/off LED
1 x Storage Access LED
LAN Port
2 x RJ45
Audio
1 x Mic-in, 1 x Line-out
DP
1 x DP 1.4a
HDMI
1 x HDMI 2.0b
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Display
Graphic Chipset
Intel® UHD Graphics for 10th Gen Intel® Processors
Resolution
1 x HDMI 2.0b Max resolution 4096x2160@60Hz
1 x DP 1.4a Max resolution 4096x2160@60Hz
Audio
Audio Codec
Realtek ALC888S
Ethernet
LAN Chipset
2 x Intel® I226IT
Specification
2 x 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter
Software Support
OS
Win10, Win11, Linux
Certification
Certification Information
CE, FCC Class B
Mechanical & Environmental
Operating Temp.
-40°C ~ 60°C (-40°F ~ 140°F) with 0.2m/s air flow
-40°C ~ 70°C (-40°F ~ 158°F) with 0.5m/s air flow
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
177 x 123 x 65mm
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test
With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, 3Axis, 6 Face
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
Wall Mount Kit (Default)
Ordering Information
Ordering Information
EPC-EHL-X13-B1-3R：Intel® ATOM® Processor x6413E Fanless Compact System, w/8COM
