ECS-APCL

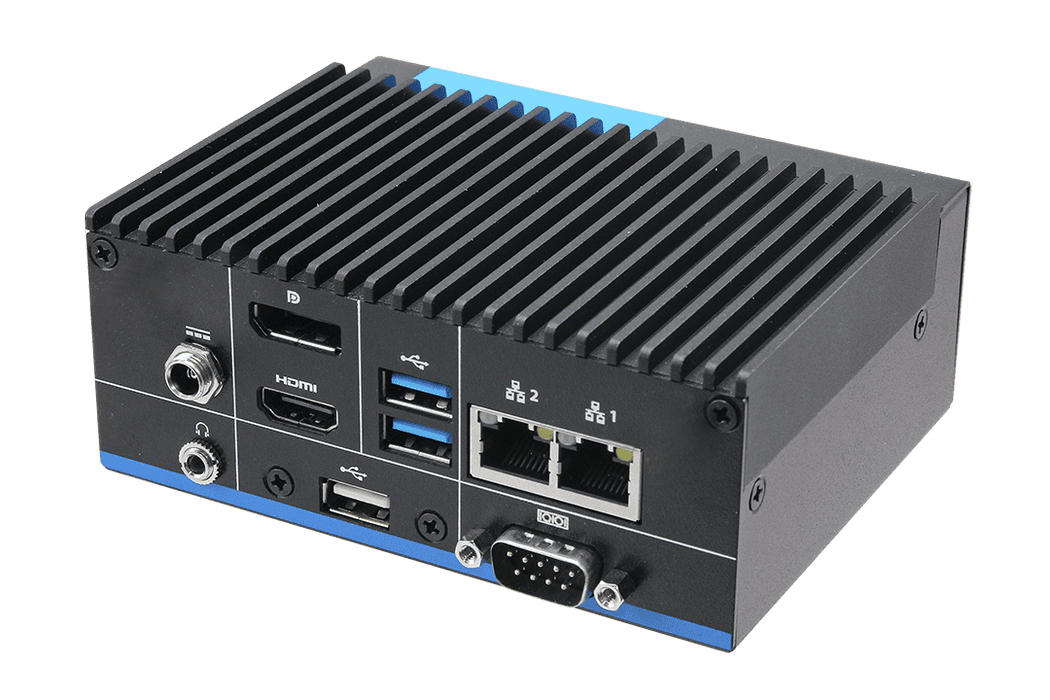

Intel® Celeron® J3455 Processor Pico-ITX Fanless Box PC
FEATURE
Intel® Celeron® Processor J3455
1 x 204-pin DDR3L1600/1333MHz SO-DIMM socket, supports up to 8GB, 4GB installed as default.
2 x USB 3.0, 2 x USB 2.0
1 x DP++, 1 x HDMI (Dual Display)
1 x M.2 Key B 3042/2242/2260 supports SSD, 64GB installed as default.
1 x M.2 Key A 2230 supports WiFi module
2 x Intel i211AT Gigabit Ethernet
2 x SMA connector (optional)
60W Adapter (DC in 12V@5A)
Specification
Download
System Information
Processor
Intel® Celeron® Processor J3455
2M Cache, up to 2.30 GHz
System Memory
1 x 204-pin DDR3L 1600MHz SO-DIMM, supports up to 8 GB, 4GB installed as default.
Watchdog Timer
H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
SBC
EPX-APLP
Expansion
M.2
1 x M.2 Key A 2230 supports WiFi module
Storage
M.2
1 x M.2 Key B 3042/2242/2260 supports SSD, 64GB installed as default.
Front I/O
USB
1 x USB 2.0
Power Button
1 x Power on/off Button w/ LED
Rear I/O
USB
2 x USB 3.0
1 x USB 2.0
COM Port
1 x RS-232
LAN Port
2 x RJ45
Audio
Line-Out
Antenna
2 x SMA Connector (Optional)
AC/DC Input
DC Jack (lockable)
Display
Graphic Chipset
Intel® Celeron® SoC Integrated Graphics
Resolution
DP++: 4096 x 2160 @ 60Hz
HDMI: 3840 x 2160 @ 30Hz, 2560 x 1600 @ 30Hz
Audio
Audio Codec
Realtek ALC897
Ethernet
LAN Chipset
2 x Intel i211AT GbE controller
Specification
10/100/1000 Base-Tx GbE compatible
Power Requirement
Power Mode
ATX
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (12V @ 5A)
Software Support
OS
Win 10, Linux
Mechanical & Environmental
Operating Temp.
-10°C ~ 50°C (32°F ~ 122°F) (w/SSD), ambient w/0.5 m/s air flow
-10°C ~ 40°C (32°F ~ 104°F) (w/SSD), ambient w/0.2 m/s air flow
Storage Temp.
-20°C ~ 75°C (-4°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
120.6 x 95.2 x 49.8 mm
Weight
1Kg
Mounting Kit
L-bracket (Optional)
Ordering Information
Ordering Information
ECS-APCL-3455-B1R：Intel® Celeron® J3455 Processor Pico-ITX Fanless Box PC
