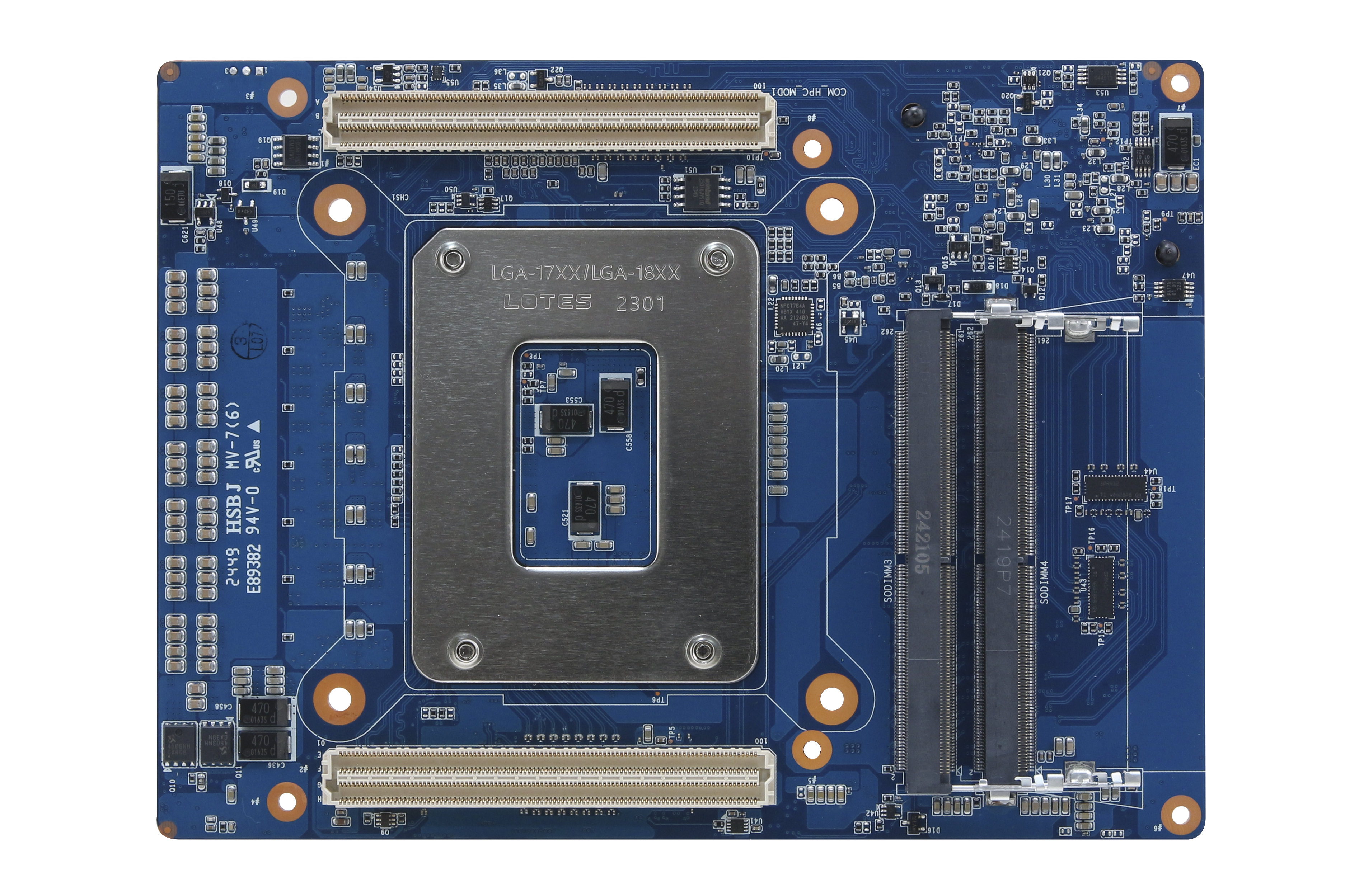

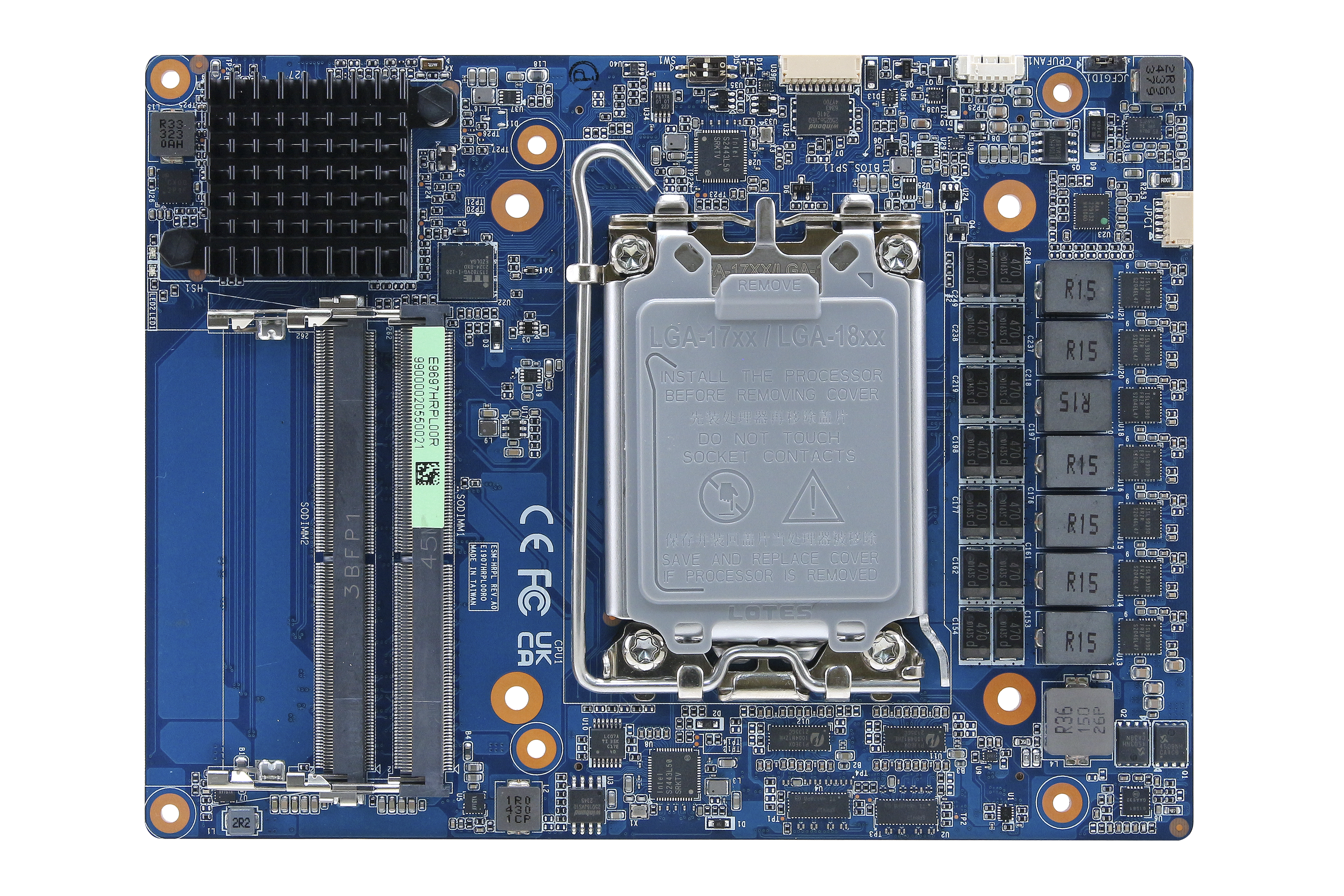

ESM-HRPL
Intel® 12/13/14th Gen Core™ Processors COM-HPC® Client Size C Module
FEATURE
Intel® R680E chipset
Intel® 12/13/14th Core™ i9/i7/i5/i3 Processor, supports up to 65W Max
4 x 262-Pin DDR5 SO-DIMM supports up to 128GB, 3600MT/s, optional ECC support (CPU depending)
1 x PCIex16 Gen5, 1 x PEGx4, 2 x PCIex4, 9 x PCIex1 Gen3, 1 x PCIex1 Gen3 for BMC
2 x Intel® i226-LM 2.5G Gigabit Ethernet Controller
3 x DDI, 1 x eDP
4 x USB3.2 Gen2x2, 8 x USB2.0, 2x SATAIII
1 x Audio, 1 x I2C, 1 x SMBus, 1 x GSPI, 1 x IPMB, 1 x SPI
Standard 0°C ~ 60°C (32°F ~ 140°F)
Specification
Download
System Information
Processor
Intel® 12/13/14th Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 65W Max
Platform Controller Hub
Intel® R680E chipsets
System Memory
4 x 262-Pin DDR5 SO-DIMMs support up to 128GB, 3600MT/s, optional ECC support (CPU depending)
I/O Chipset
EC iTE IT5782
Watchdog Timer
H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step
BIOS
AMI uEFI BIOS, 256 Mbit SPI Flash ROM
H/W Status Monitor
Monitoring System Temperature
Voltage and FAN Status with Auto Throttling Control
TPM
Optional NuvoTon NPCT754AADYX TPM 2.0
Expansion
Expansion
1 x PCIex16 Gen5, bifurcatable to 2 x PCIex8 Gen5
1 x PEGx4
2 x PCIex4, 9 x PCIex1 Gen3
1 x PCIex1 Gen3 for BMC (owned by carrier board)
Display
Graphic Chipset
Intel® UHD Graphics 770 up to 32EUs
Spec. & Resolution
3 x DDI ports support configurable DP1.4a or HDMI2.1b
1 x eDP1.4b
Multiple Display
Quadruple Independent Displays
Ethernet
LAN Chipset
2 x Intel® i226LM 2.5G Gigabit Ethernet Controller
Software Support
OS
Windows 11 LTSC
Linux
I/O
USB
4 ports support USB3.2 Gen2x2
8 ports support USB2.0
SMBus
1 port supports SMBus
SATA
2 ports support SATAIII
DIO
12 ports support GPIO
Other
1 x Smart FAN on COM-HPC module
1 port supports Smart FAN for carrier
Each 1 port supports Audio, I2C, GSPI, IPMB, SPI
UART
2 x UART (2 wire)
Mechanical & Environmental
Operating Temp.
With CPU cooler, supports 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temp.
-20°C ~ 75°C (-4°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (L x W)
120 x 160mm
(COM-HPC Client size C)
