Processor

Intel® 13th Gen Core™ i9/i7/i5/i3 Processor (35W/65W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x SODIMM sockets support Dual Channel DDR5 4800MHz up to 64GB

BIOS Information

AMI uEFI BIOS, 256Mb SPI Flash ROM

Watchdog Timer

1 Sec ~ 255 Sec Timer

TPM

dTPM 2.0

SBC

MX610H, BMX-T820 DB-A

M.2

1 x M.2 Key-E 2230 CNVi (PCIe x 1, USB 2.0)
1 x M.2 Key-M 2242/2280 (PCIe x 4)Located in the same storage share)

PCIe

1 x PCIe x 16 (Gen 4)

M.2

1 x M.2 Key-M 2242/2280 NVMe (PCIe x 4, SATA3)

2.5 Drive Bay

3 x Internal 2.5”Drive Bay (12.5mm)/ 2 x Internal 2.5”Drive Bay (12.5mm)+ 1 x Internal 3.5”Drive Bay (12.5mm)/ 2 x Internal 3.5” Drive Bay

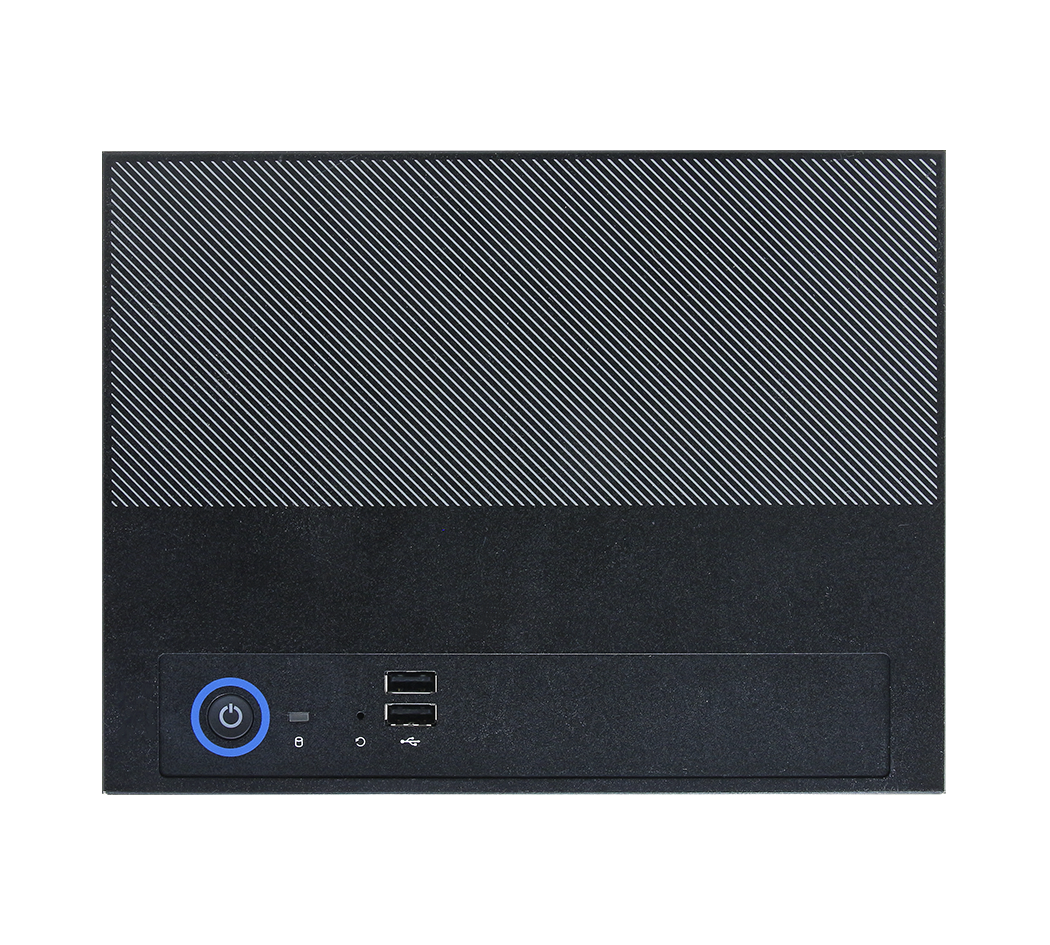

USB

2 x USB 2.0

Power Button

1 x PWR BTN w/LED

Reset Button

1 x RST Hidden BTN (Wire)

LED Indicator

1 x Data Access LED

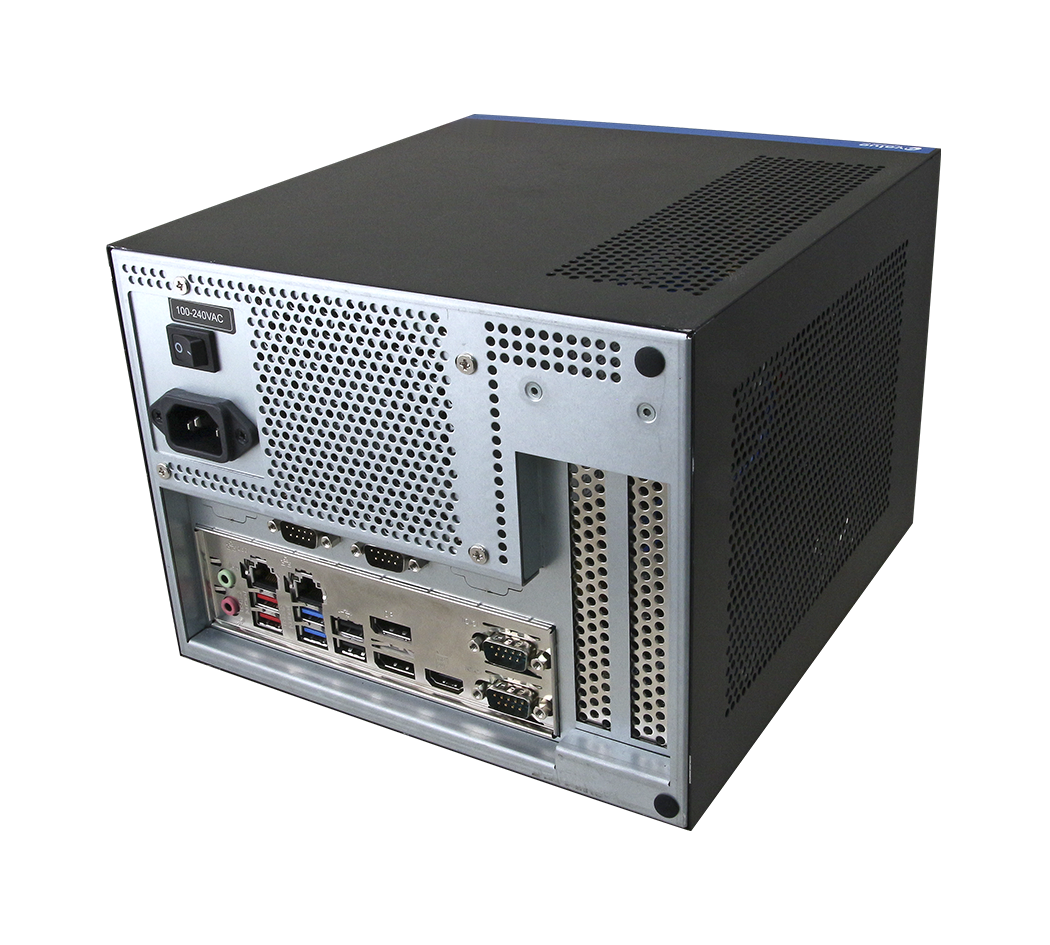

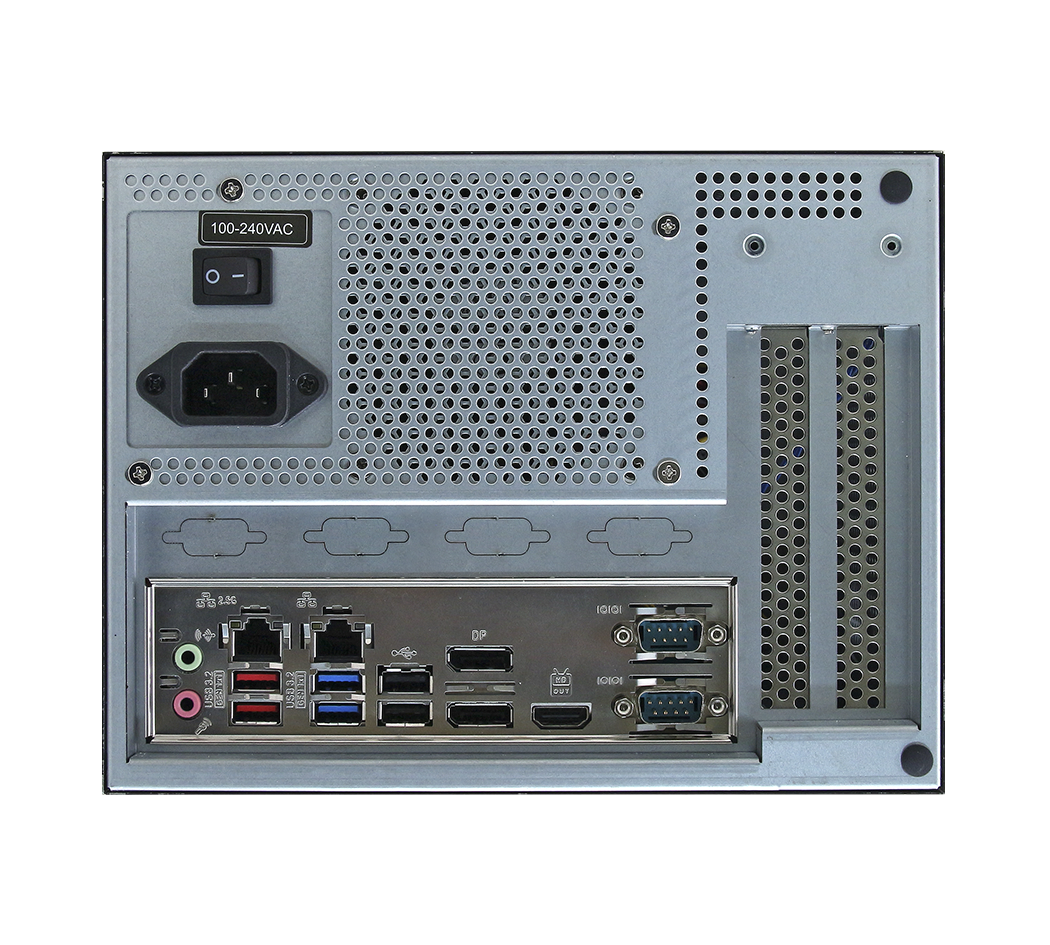

USB

2 x USB 2.0
4 x USB 3.2

COM Port

2 x RSx232/422/485
additional COM3-4 support RS-232 via optional cable

DP

2 x DP

HDMI

1 x HDMI

Audio

1 x Line-Out
1 x Mic-In

Antenna

2 x Antenna w/cover

AC/DC Input

1 x Vac Input

LAN Port

2 x RJ45

System Fan

1 x Smart Fan (65W CPU only)

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)

Resolution

HDMI 1.4b: 3840x2160@30Hz
DP++ 1.4a: 4096x2304@60Hz

Audio Codec

Realtek HD Audio

LAN Chipset

Intel® Ethernet Connection I219-LM
Intel® Ethernet Controller I225-V

Data Rate Per Port

1GbE (I219-LM)
2.5GbE (I225-V)

Power Supply Unit

AC to ATX PSU

Voltage Input Spec.

100Vac~240Vac

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX (ATX is default setting)

Voltage Input Connector

IEC 320 (C14)

OS

Win10, Win11, Linux

Certification Information

CE/ FCC/ UKCA

Operating Temp.

0°C~40°C (32°F~104°F) with 0.5m/s air flow

Storage Temp.

-30~70C° (-22°F~158°F)

Operating Humidity

40°C@95% Relative Humidity, Non-condensing

Dimension (W x L x H)

169 x 223 x 232mm

Vibration Test

With SSD : 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Shock Test

10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6

Mounting Kit

Robber foots for Vertical/horizontal

Items

1 x BMX-T840
2 x SATA PWR/signal cable
1 x Screw kit (For M.2, Storage)
4 x Rubber Foot

Ordering Information

Intel® 13th Gen Core™ i9/i7/i5/i3® Processor with CPU Cooler System (CPU 35W)
BMX-T840-I9H-A1-1R (i9-13900TE)
BMX-T840-I7H-A1-1R (i7-13700TE)
BMX-T840-I5H-A1-1R (i5-13500TE)
BMX-T840-I3H-A1-1R (i3-13100TE)

For inquiries regarding the Intel® 13th Gen Core™ i9/i7/i5/i3® Processor with CPU Cooler System (65W), please contact your sales representative.
