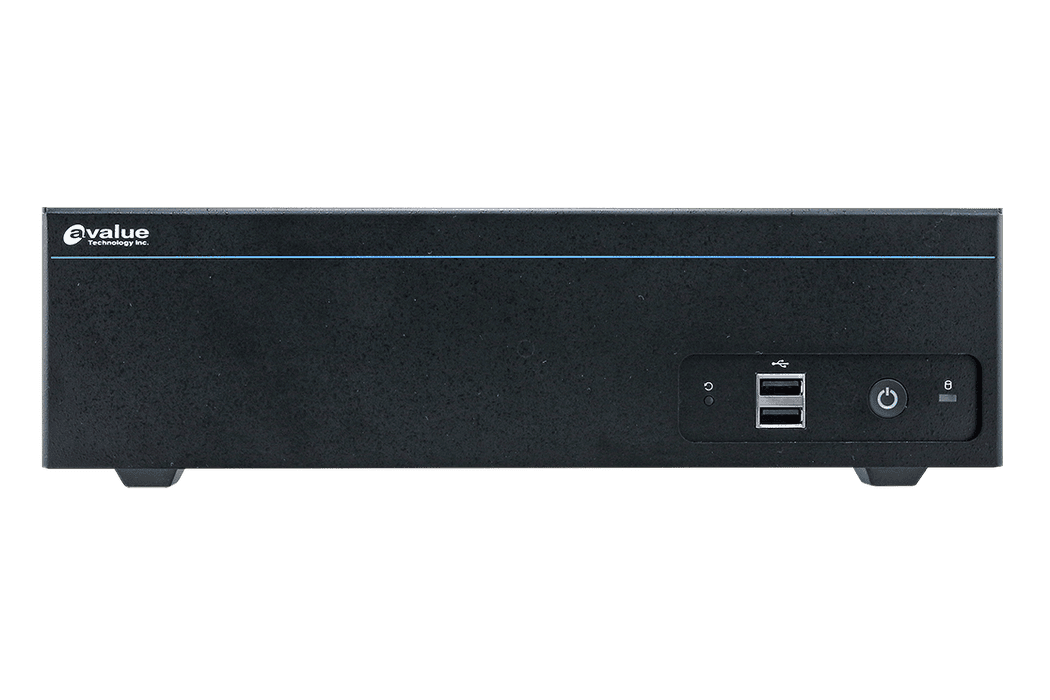

BMX-T550
Desktop Chassis and Barebone system
FEATURE
8/9th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®/Processor
Intel® H310 Express Chipset
Intel® UHD Graphics 610/630
2-Memory Socket, Max. Up to 64GB DDR4 2666
2-Storage, 2.5” Drive Bay
3-Display, HDMI, VGA, DP++
3-Expansion Slot, PCIe x 16, M.2 Key B/E
4-Intel® Gigabit Ethernet
12-USB, 6-USB 2.0, 6-USB 3.1
0~50°C (32˚F ~ 122˚F) Operating Temperature
Specification
Download
System Information
Processor
8/9th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®/Processor
Platform Controller Hub
Intel® H310 Chipset
System Memory
2 x 260-pin DDR4 2666 MHz SO-DIMM up to 64GB
Watchdog Timer
H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
TPM
Onboard Infineon SLB9665 supports TPM 2.0
SBC
EMX-H310P(Mini ITX Board)
Expansion
M.2
1 x M.2 (2242/2260/2280) B-Key, supports WWAN+GNSS with SIM card slot & SSD (SATA)
1 x M.2 (2230) E-Key, supports WiFi module
PCIe
1 x PCIe x 16
Storage
2.5 Drive Bay
2 x 2.5" SSD/HDD
Front I/O
USB
2 x USB 2.0
Rear I/O
USB
4 x USB 2.0, 6 x USB 3.1 (Gen1)
COM Port
Optional via rear IO Expansion Shield
LAN Port
4 x RJ-45
DC Output
AC Jack (IEC 320 C14)
Display
Graphic Chipset
Intel® 9/8th Generation CPU integrated
Resolution
VGA: 2048 x 1536 @ 60 Hz
HDMI: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz
DP++: 4096x2160 @ 30Hz
Ethernet
LAN Chipset
1 x Intel® I219-LM PCI-e Gigabit Ethernet PHY
3 x Intel® I211-AT PCI-e Gigabit Ethernet
Specification
10/100/1000 Base-Tx GbE compatible
Power Requirement
Power Supply Unit
Standard 220W Flex ATX Power Supply
Power Mode
AT/ATX Mode (Default: ATX mode)
Software Support
OS
Win10 64bit
Linux
Certification
Certification Information
CE
FCC Class B
Mechanical & Environmental
Operating Temp.
0°C ~ 50°C (32°F ~ 122°F),(w/SSD) ambient w/ air flow
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
280 mm x 265 mm x 75 mm
Weight
5.6 kg (w_Package)
Vibration Test
With SSD : 2 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis
Shock Test
With SSD : 10 Grms, IEC 60068-2-27, Half Sine, 11ms
Ordering Information
Ordering Information
BMX-T550-A1-1R：STD desktop chassis w/o motherboard
BMX-T550-A1-2R：STD IMB desktop system w/i7-8700T
BMX-T550-A1-3R：STD IMB desktop system w/i5-8500T
BMX-T550-A1-4R：STD IMB desktop system w/i3-8100T
