BMX-T540-C246
Mini ITX Barebone System with Intel® C246 Chipset
FEATURE
8/9th Gen Core™ Pentium® / Celeron /i7/ i5/ i3 Processors (Max. TDP at 95W) /Intel® Xeon®Processor E3-2000 Family (Workstation)
2 x 260-pin DDR4 2666MHz SO-DIMM socket, supports up to 64GB
2 x 2.5" SSD/HDD
1 x VGA, 2 x HDMI, Triple Display
1 x M.2 (2242/2260/2280) M-Key, support PCI-e x4 SSD
1 x M.2 (2230) E-Key, support WiFi Module
Front: 2 x USB 2.0; Rear: 8 x USB 3.1 (Gen1),2 x USB 2.0
6 x COM, 4 x LAN, 2 PCI-e x 8
1 x PS/2 Keyboard/Mouse Combo Jack
Support RAID 0,1,5,10
Onboard Infineon SLB9665 support TPM2.0
400W 100-240Vac Power Supply (80 Plus Gold Certified)
Specification
Download
System Information
Processor
Intel® LGA1151 Socket Supports 8/9th Gen Core™ Pentium® / Celeron /i7/ i5/ i3 Processors (Max. TDP at 95W) /Intel® Xeon®Processor E3-2000 Family (Workstation)
Platform Controller Hub
Intel® C246 Chipset
System Memory
2 x 260-pin DDR4 2666 MHz SO-DIMM up to 64GB
Watchdog Timer
H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
TPM
Onboard Infineon SLB9665 supports TPM 2.0
SBC
EMX-C246P
Expansion
M.2
1 x M.2 ((2242/2260/2280) M-Key, support Intel RST, PCI-e x4 SSD)
1 x M.2 ((2230) E-Key E, support WiFi module supports CNVio)
PCIe
2 x PCIe x 8
Storage
2.5 Drive Bay
2 x 2.5" SSD/HDD

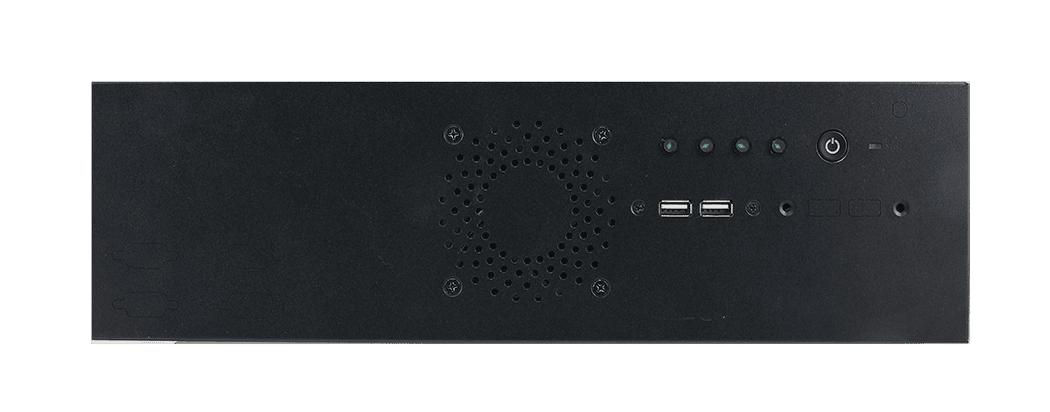

Front I/O
USB
2 x USB 2.0

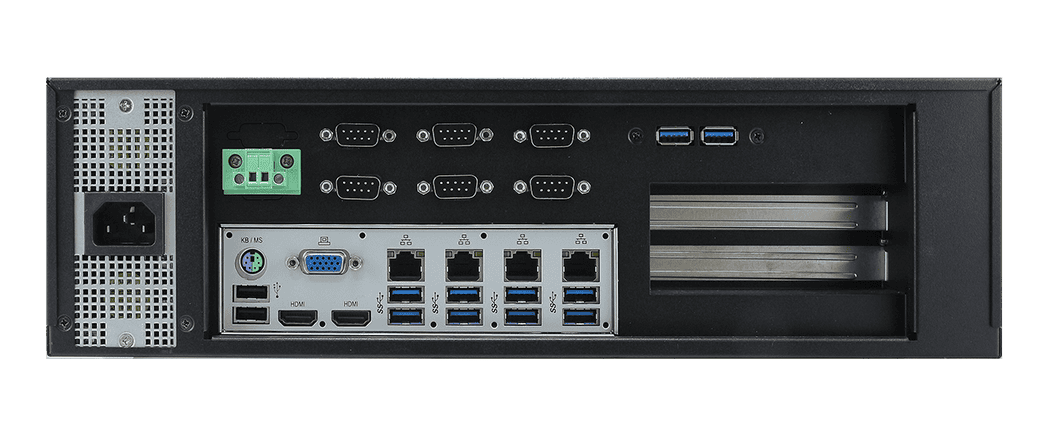

Rear I/O
USB
2 x USB 2.0, 8 x USB 3.1 (Gen1)
COM Port
6 x RS232 (default RS232, 2 of 6 COM can be replaced RS-232/RS422/485 by BIOS -OEM demand )
LAN Port
4 x RJ-45
Wire-Control Power On/Off
2-Pin Terminal Block
AC/DC Input
AC Jack (IEC 320 C14)
Display
Graphic Chipset
Intel® 9/8th Generation CPU integrated
Resolution
VGA: 2048 x 1536 @ 60 Hz
HDMI: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 60 Hz
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller with 3W Amplifier
Ethernet
LAN Chipset
1 x Intel® I219-LM PCI-e Gigabit Ethernet PHY
3 x Intel® I210-AT PCI-e Gigabit Ethernet
Specification
10/100/1000 Base-Tx GbE compatible
Power Requirement
Power Supply Unit
Standard 400W Power Supply
Power Mode
AT/ATX Mode (Default: ATX mode)
Software Support
OS
Win10 64bit
Linux
Certification
Certification Information
CE
FCC Class B
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F),(w/SSD) ambient w/ air flow
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
372cmm x 307 mm x 107mm
Weight
6.4 kg (w_Package)
Vibration Test
With SSD : 2 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis
Shock Test
With SSD : 10 Grms, IEC 60068-2-27, Half Sine, 11ms
Ordering Information
Ordering Information
BMX-T540-C246-A1R：Mini ITX System with Intel® C246 chipset
