BMX-T528

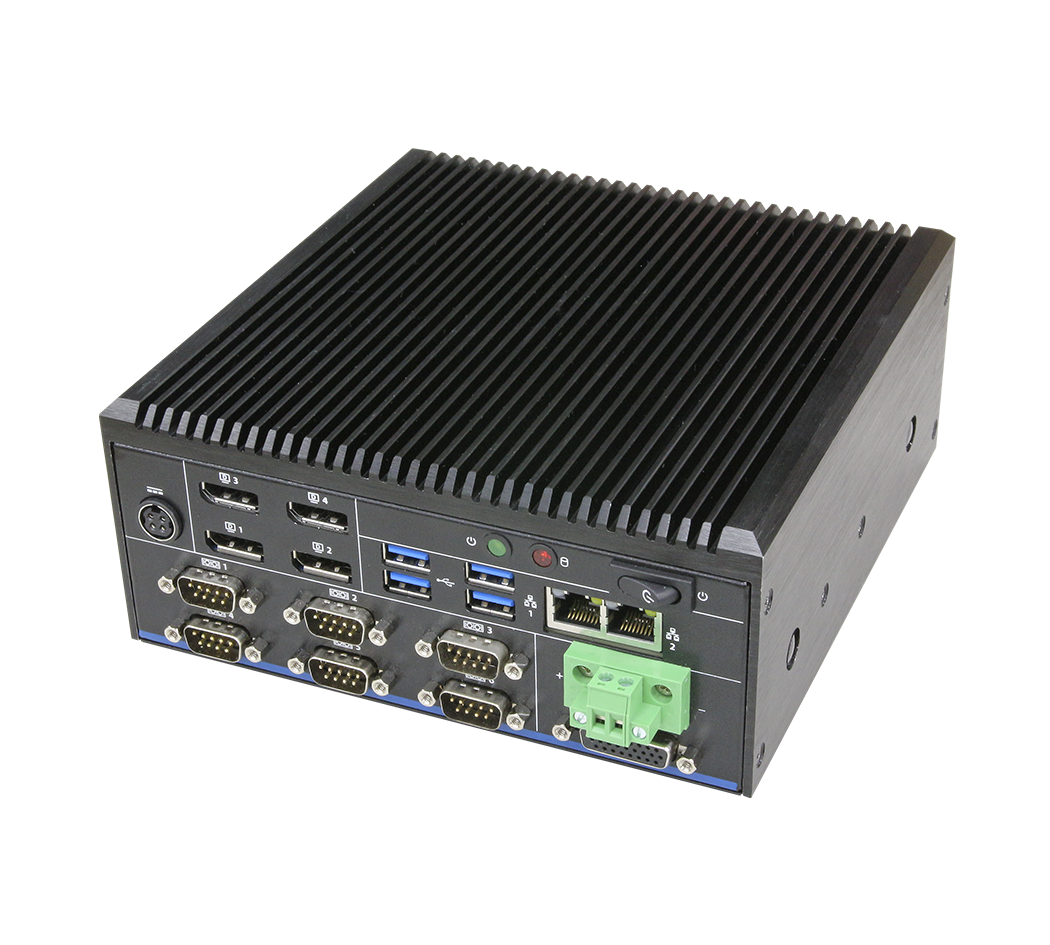

mITX Fanless BOX with EMX-TGLC-B1 inside
FEATURE
11th Generation Intel® Tiger Lake-UP3 Processors
Intel® Iris® Xe/ UHD Graphics Engine
Two 260-pin DDR4 SODIMM Socket, Supports Up to 64GB DDR4 3200MTs SDRAM

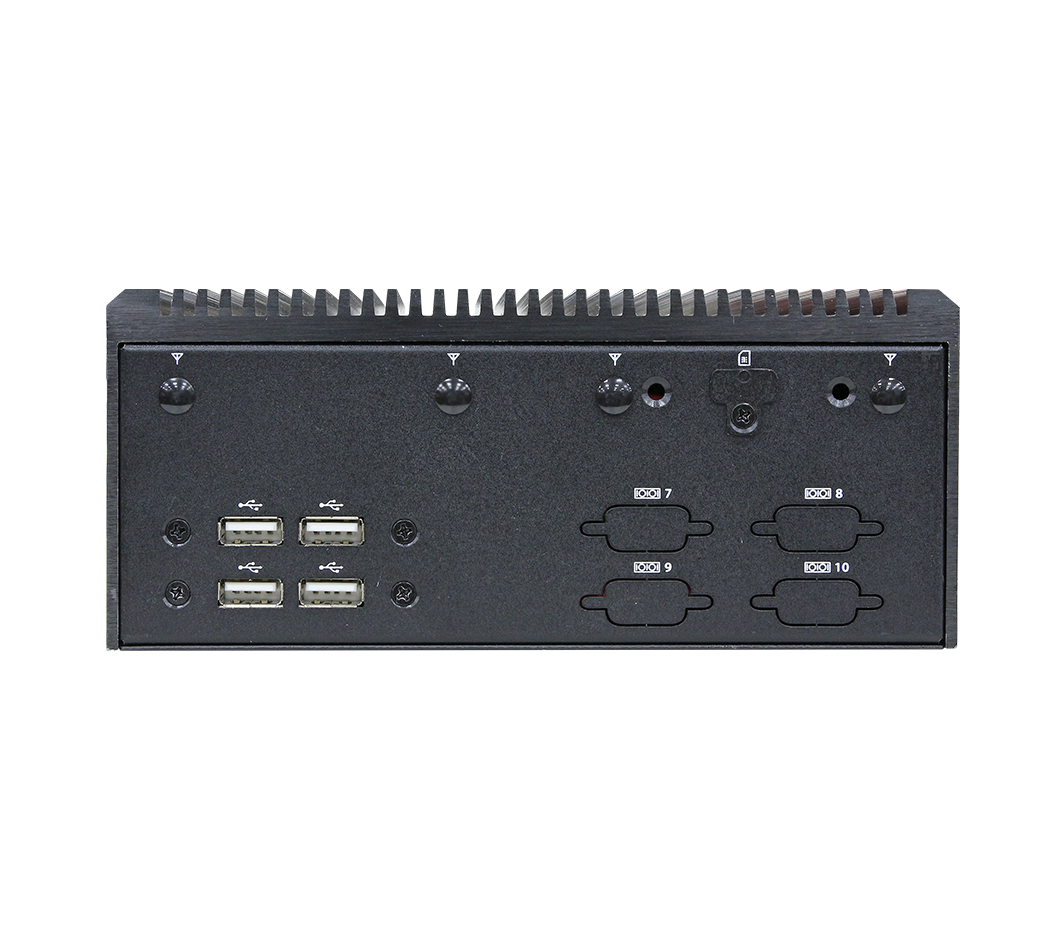

Front IO：4xUSB2.0, 6xDB9 , 4xAntenna，1x SIM slot，all for optional

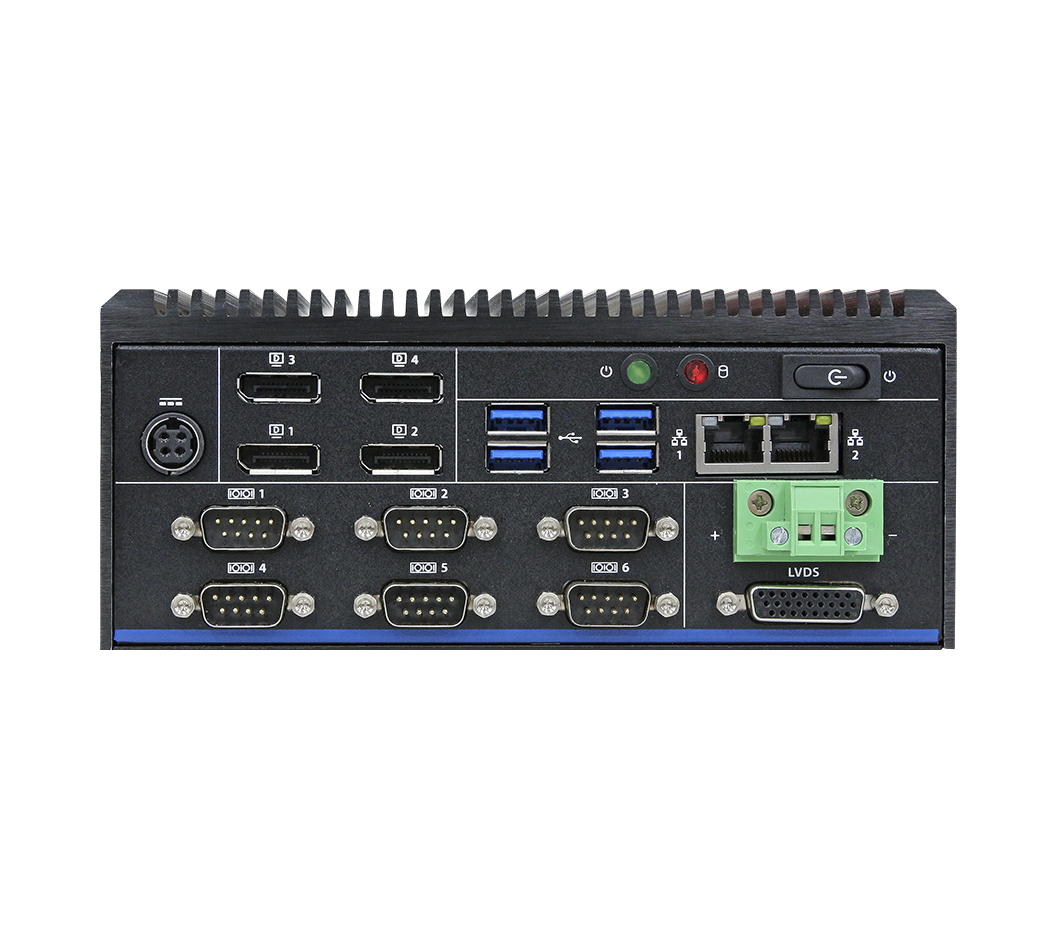

Rear IO：2xDP or 4xDP, 4xUSB3.2 Gen1, 2xLAN, 2P-Terminal Black预留 /DB26机构预留/Power Button/LED预留
2-Intel® Ethernet Controller (1GbE, 2.5GbE)
2 x DP or 4DP 1 x LVDS for DB26 optional with BIOS and Cables
Support 5G (Sub-6G) module（SIM Card extrapolation）
Fanless operation Temperature from 0°C ~ 50°C
DC power input from +24V
Win10/Win 11 64bit, Linux
Specification
Download
System Information
Processor
Intel® Core™ i7-1165G7 Processor (15W)
Intel® Core™ i5-1135G7 Processor (15W)
*According to the EMX-TGLC-B1 standard BOM
Platform Controller Hub
Soc
System Memory
Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB Max (non ECC only)
I/O Chipset
NuvoTon_NCT6126D
BIOS Information
AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor
CPU temperature monitoring
Voltage monitoring
CPU fan speed control
RAID
RAID0/1 (only Core i)
TPM
dTPM 2.0
SBC
EMX-TGLC-B1
Expansion
M.2
1-M.2 Type B 3042/3052/2242/2260/2280
Support PCI-e x1/ 1x SATA/1xUSB3.0/1xUSB2.0 with 1 x Nano SIM card slot with co-lay FPC connector, support WWAN+GNSS or NVMe (SATA) SSD
*SATA 2 share with M.2 key B SATA
*Only supports one SIM card
*Does not support I2S and PCM functions
*Only Support PCI-e x1 signal module
1-M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)
*Does not support PCM/I2S and UART/SDIO functions
*Due to support Intel CNVI function, please do not use support UART or SDIO module to avoid misfunction.
Storage
M.2
1-M.2 Type B 3042/3052/2242/2260/2280 NVMe SSD
*SATA 2 share with M.2 key B SATA
*Only Support PCI-e x1 signal module
2.5 Drive Bay
2-2.5” Drive Bay (9.5mm)
Front I/O
USB
4 x USB2.0 optional
COM Port
4 x COM optional
SIM Slot
1 x Internal SIM slot
Antenna
4 x Antenna with dust cover
Rear I/O
USB
4-USB 3.1 Gen2
Power Button
1 x Push Button for Power on/off
COM Port
2 x RS/232/RS422/485, 4 x RS-232
LED Indicator
1 x Power LED (Green)
1 x Storage LED (Red)
LAN Port
2 x RJ45
HDMI
2 x DP or 4 x DP
AC/DC Input
1-4P Mini Din Jack (Edge)
1-2P Terminal Black (cable)
LVDS
1 x LVDS for DB26 Optional
Right I/O
Antenna
2 x Antenna with dust cover
Left I/O
Antenna
2 x Antenna with dust cover
Display
Graphic Chipset
Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)
Resolution
˙DP (DP1.4): Max: 7680 x 4320@60 Hz
Note: This resolution is actual test result. Intel resolution as below:
˙2 x DP++: 1920 x 1080@60 Hz (with passive Displayport(DP) to HDMI Dongle/Adapter)
˙LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513 eDP to LVDS)
˙eDP 4096 x 2304@60 Hz
*2 x DP++, LVDS
Multiple Display
Triple Display
Multiple Display: DP+DP+eDP or DP+DP+LVDS
Audio
Audio Codec
Realtek ALC897 co-lay ALC888S
Ethernet
LAN Chipset
1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2)
1 x Intel® I219LM Gigabit Ethernet PHY (LAN1)
*according to the EMX-TGLC-B1 standard BOM
Data Rate Per Port
10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet
Power Requirement
Voltage Input Spec.
+24Vdc
ACPI
Single power ATX Support S0,S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Voltage Input Connector
1-4P Mini Din Jack (Edge)
1-2P Terminal Black (cable)
Software Support
OS
Win10, Win11, Linux
Mechanical & Environmental
Operating Temp.
0°C ~ 50°C (w/SSD) ambient w/ 0.5 air flow
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
1800mm x 182mm x 82.2 mm (Standard)
Weight
Net weight:2.2KG
Gross weight: 3.4KG
Vibration Test
With SSD:5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test
With SSD:50Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed
Mounting Kit
Wall mount kit (optional)
DIN RAIL (optional)
Onboard I/O
Clear CMOS Button
1 x 3 pin, pitch 2.00mm connector for CMOS clear (JRTC1)
EC Debug
1 x 3 pin, pitch 2.00mm connector for EC SPI debug (JEC1)
Front Panel
1 x 2 x 5 pin, pitch 2.54mm connector for front panel_1 (JFP1)
DC-Input
1 x 4P Mini Din Jack
1 x 2 x 2 pin, pitch 4.20mm connector for power input connector (PWR1)
BIOS EC
1 x 2 x 4 pin, pitch 2.00mm connector for BIOS SPI (JBIOS1)
SATA Signal
2 x 7 pin SATAIII Interface connector
eSPI
1 x 2 x 6 pin, pitch 2.00mm connector for eSPI debug (JESPI1)
RTC Battery
1 x 2 Pin Pitch 1.25mm SMT type battery connector (CR2032 Battery) JBAT1
AT/ATX Selector
1 x 1 x 3 pin pitch 2.54mm connector for AT/ATX jumper (JAT1)
SATA PWR
2 x 4-Pin Wafer (2.0mm) for 5V/12V Power SATA Power,1A
Packing List
Items
4 x 角垫Rubber foot E199RF00010R
2 x L型固定支架（E195BMBMT52100R for Optional）
1 x 120W adapter optional
1 x Power cord (optional)
Ordering Information
Ordering Information
BMX-T528-3G4-B2C
BMX-T528-5G7-B2C
BMX-T528-7G7-B2C
C971XBMT528001R
C971XBMT528002R
C971XBMT528003R
Chipset
2
Audio
2
Graphics
1
LAN
1
Manual
1
Other Driver
2
0
Chipset
Total 2 Files
Audio
Total 2 Files
Graphics
Total 1 Files
LAN
Total 1 Files
Manual
Total 1 Files
