BMX-P820
Intel® 14th Gen Core™ i7/i5/i3 Processor (35W) CPU Fanless Barebone System
FEATURE
14th Generation Intel® Raptor Lake-S Refresh (35 W ) Processors
Two 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 64GB Max. (non ECC only)
2 x Intel® i219LM, I226V Ethernet
RealTek ALC897 Audio Codec
1 x HDMI 1.4b 4K@30Hz, 2 x DP++ 1.4a 4K@60Hz
3 x SATA III
4 x USB 3.2 Gen1 x 1, 4 x USB 2.0 Type-A
1 x PCIe x16 (Gen4), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
Onboard infineon SLB 9670VQ2.0 support TPM2.0
3 x Audio (Mic in and Line out for Rear IO, Mic in/Line out for Front IO)
ATX power
Specification
Download
System Information
Processor
Intel® Core™ i7-14700T / i5-14500T Processor (35W, Default)
Platform Controller Hub
Intel® H610E Chipset
System Memory
2 x 262P SO-DIMM Socket (Capacity Max. Up to 64GB DDR5 4800)
I/O Chipset
nuvoton NCT6126D
BIOS Information
AMI 256Mb UEFI BIOS
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
TPM
Onboard infineon SLB 9670VQ2.0 support TPM2.0
SBC
Mini-ITX 170mmx170mm (MX610H)
Expansion
M.2
1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
PCIe
PCIex 16 (NVIDIA RTX 2000 Ada Generation graphic card, by optional)
Storage
M.2
1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)
2.5 Drive Bay
2 x Internal 2.5” Drive Bay

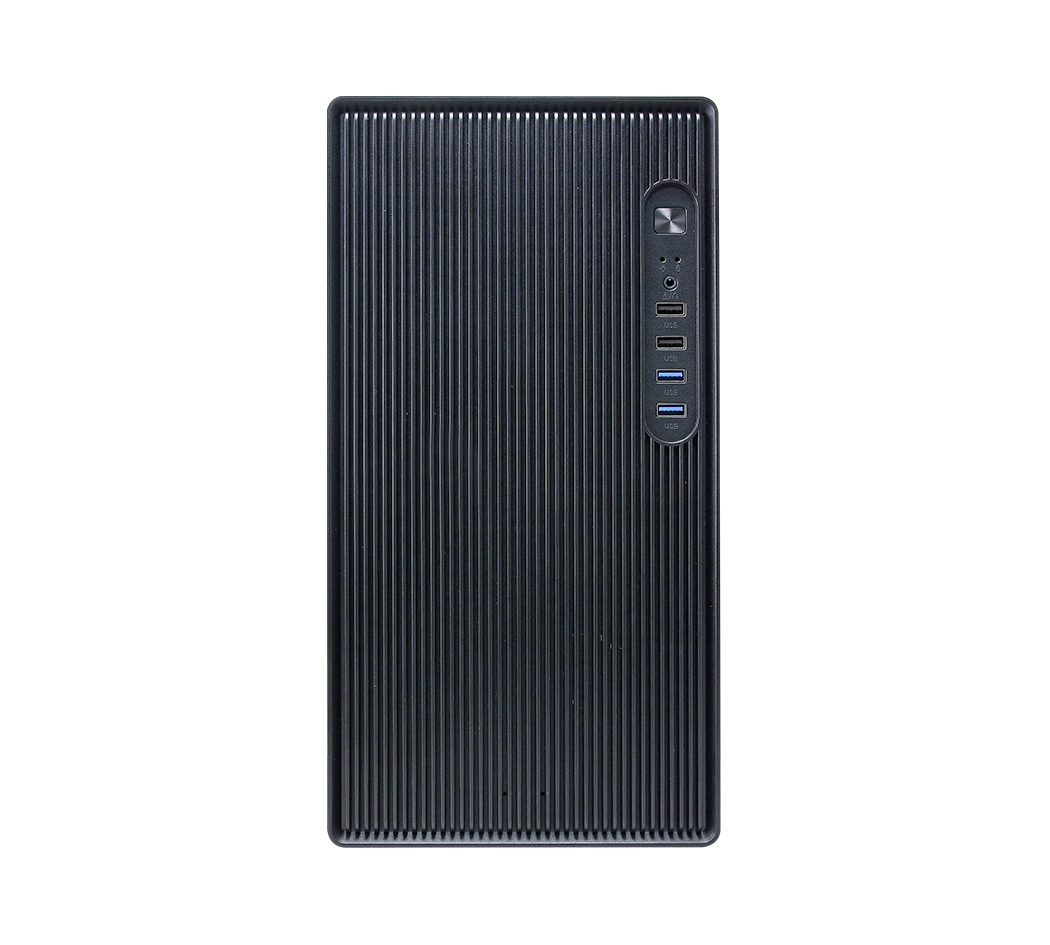

Front I/O
USB
2 x USB 2.0
2 x USB 3.2 (Gen 1 x 1)
Power Button
1 x PWR
LED Indicator
1 x PWR LED
1 x Data Access LED
Audio
1 x Audio jack(Mic in/Line out)

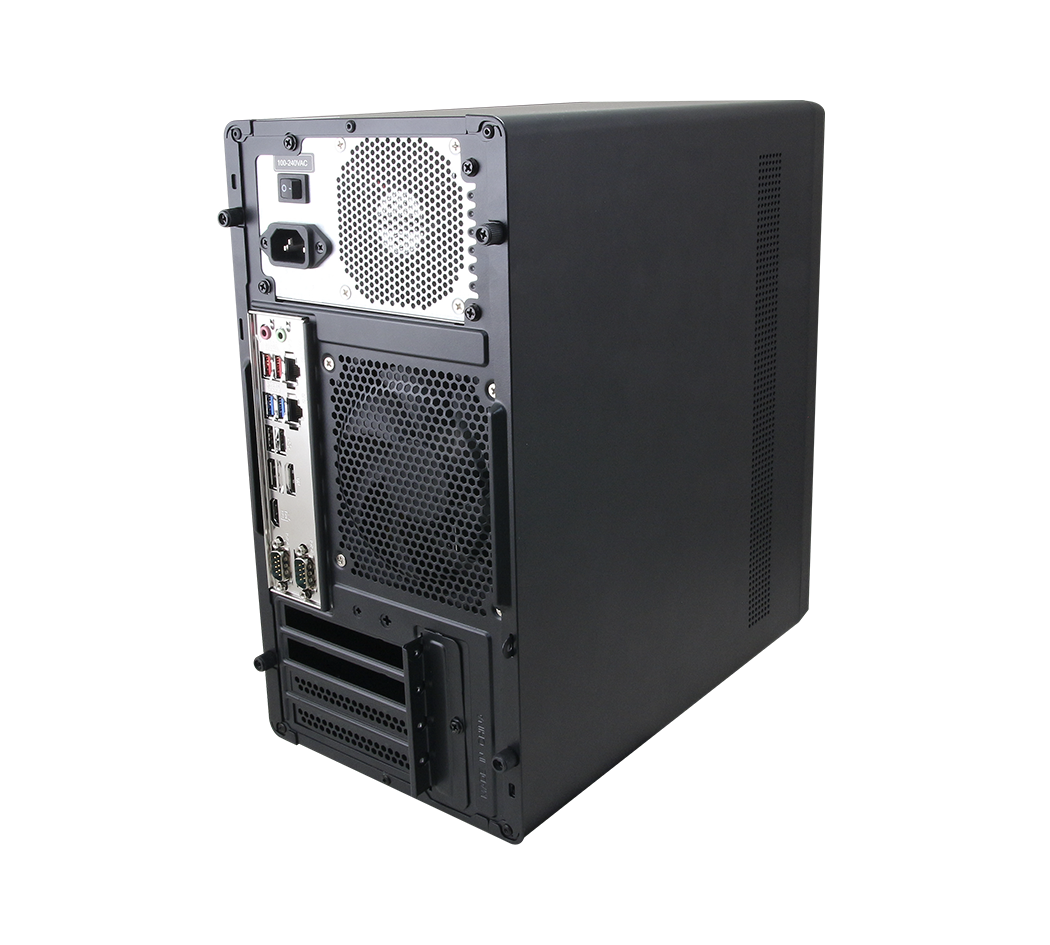

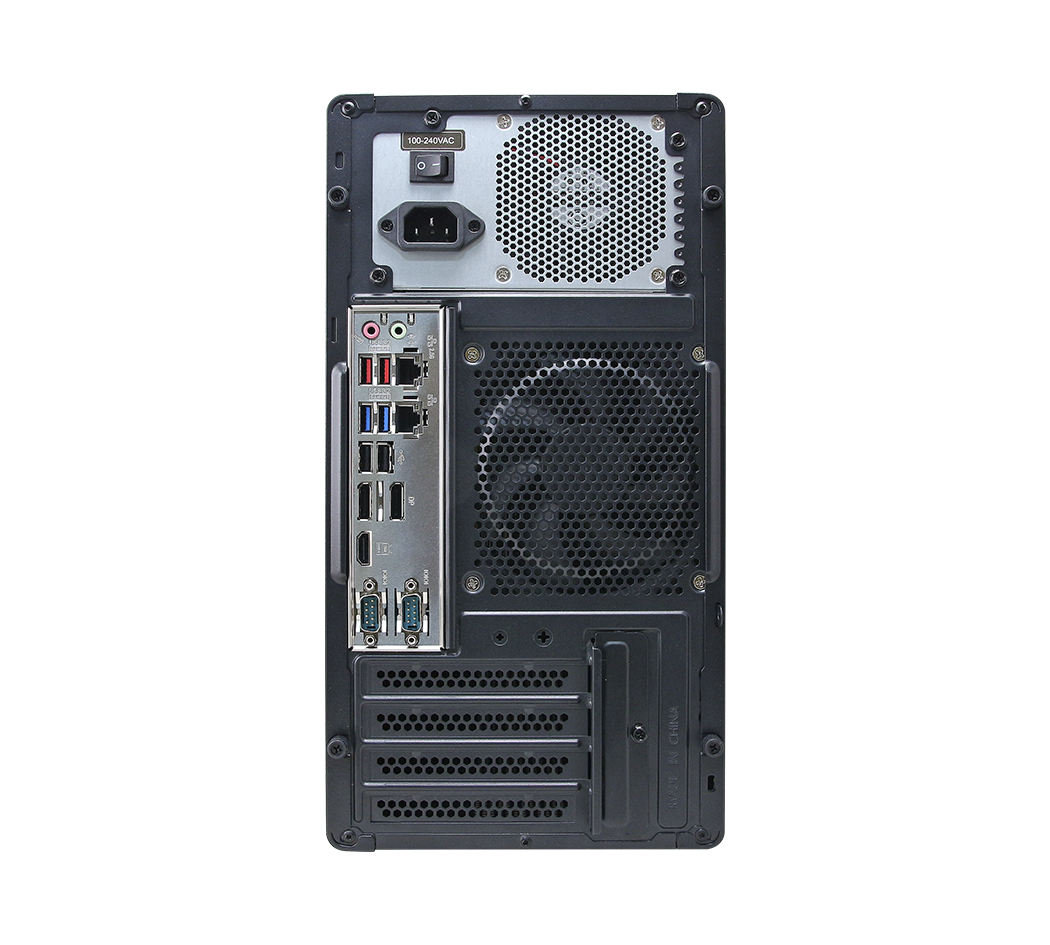

Rear I/O
USB
4 x USB 3.2 Gen1x1
2 x USB 2.0
COM Port
2 x RS-232/422/485
LAN Port
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® i226V 2.5 Gigabit Ethernet
DP
2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz
HDMI
1 x HDMI 1.4b 4K@30Hz
Audio
Mic-in, Line-out
Display
Graphic Chipset
Intel® UHD Graphics 770 (Depends on CPU)
Resolution
HDMI 1.4b 4K@60Hz
Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz
Audio
Audio Codec
RealTek ALC897
Ethernet
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® i226V 2.5 Gigabit Ethernet
Power Requirement
Power Supply Unit
AC to ATX PSU
Voltage Input Spec.
+12V/+5V/5VSB/+3.3V/-12V (ATX power)
ACPI
Single power ATX support S0, S3, S4, S5
Power Mode
AT/ATX (ATX is default setting)
Voltage Input Connector
4P ATX connector
DC Output Spec.
ATX power
Software Support
OS
Win10, Win11, Linux
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow
Storage Temp.
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
309 x 185 x 354mm (12.16”x 7.28”x 13.93”)
Onboard I/O
CPU/System FAN
CPU FAN: Fanless
System FAN: 2 x SYS FAN
Packing List
Items
1-BMX-P820
1 x AC 350W / 500W PSU (by opt.)
1 x Screws kit (For M.2, SATA 2.5” cables)
