BMX-P54S-Q17K
Mini Server with 4 hot-swap drive bays
FEATURE
6/7th Gen Intel® Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors
2 x 260-pin DDR4 2133MHz SO-DIMM socket, supports up to 32GB Max

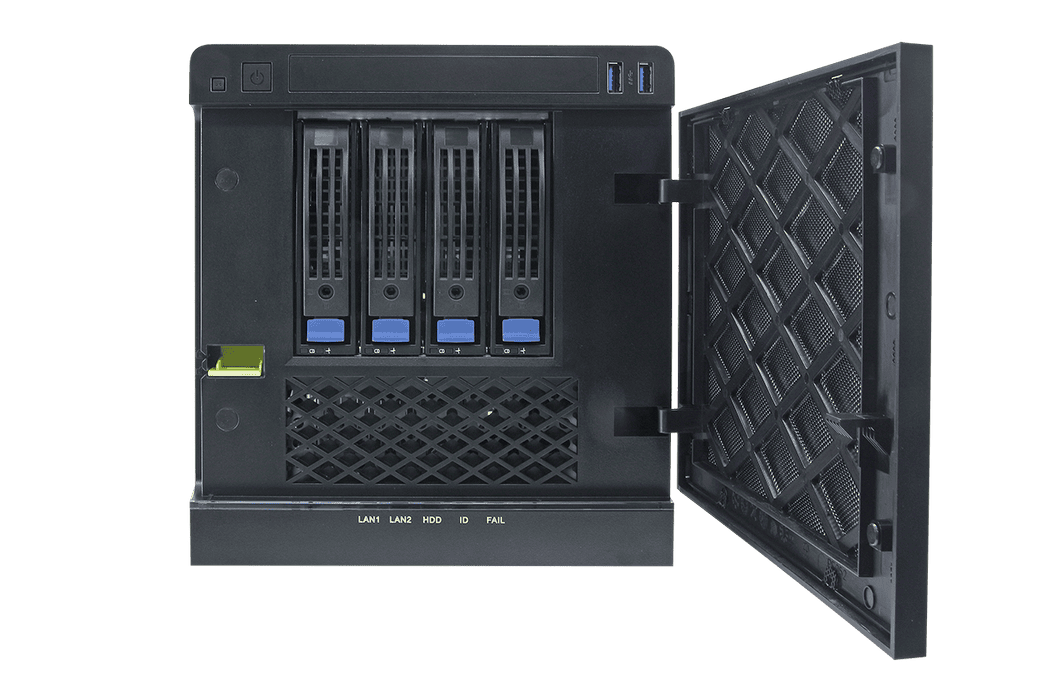

4 x 2.5" or 3.5" hot-swap HDD trays
1 x 2.5" internal drive bay
1 x Slim ODD bay (Optional 2.5" HDD bracket)
M/B Tray for easy maintenance
120 x 25 mm rear PWM fan for system cooling
Kensington slot and padlock loop
Supports 6Gb/s SATA backplane
1 x Low profile slot
265W 1U Flex 100-240Vac Power Supply
Specification
Download
System Information
Processor
Intel® LGA1151 Socket Supports 6/7th Generation Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors
Platform Controller Hub
Intel® Q170 Chipset
System Memory
2 x 260-pin DDR4 2133MHz SO-DIMM up to 32 GB
I/O Chipset
Nuvoton® NCT6106D
BIOS Information
AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec./min. 1sec. or 1min. step
H/W Status Monitor
CPU temperature monitoring
Voltages monitoring
CPU fan speed control
TPM
Onboard Infineon SLB9665 support TPM 2.0
SBC
EMX-Q170KP
Expansion
Expansion
1 x Low profile expansion slot
Storage
2.5 Drive Bay
4 x 2.5" or 3.5" hot-swap HDD trays
1 x 2.5" internal drive bay
Front I/O
USB
2 x USB 2.0

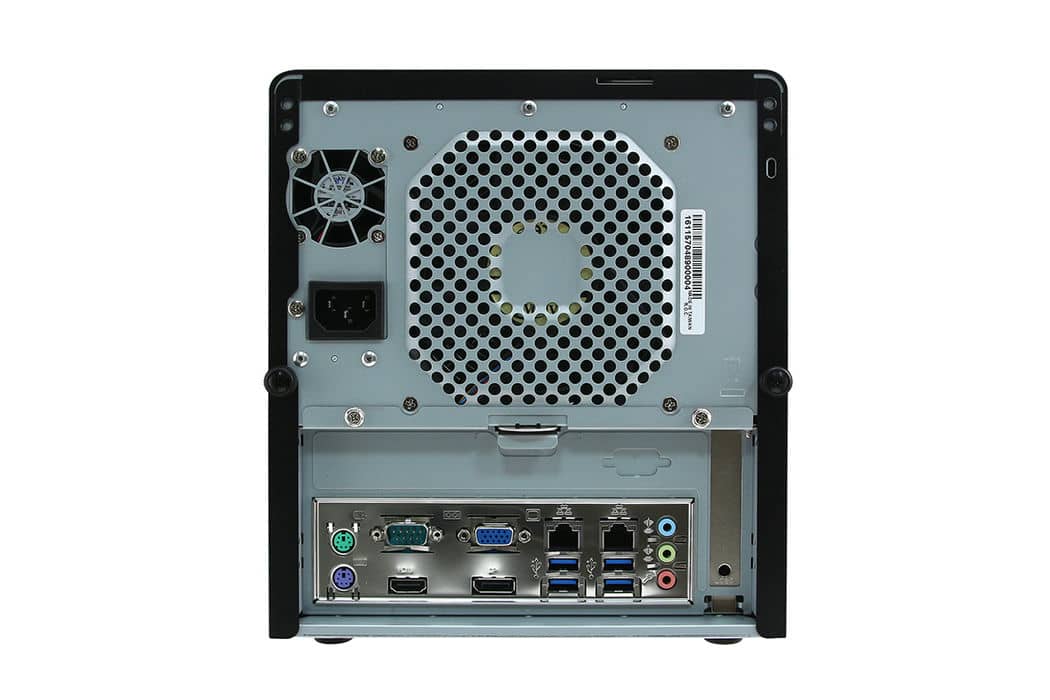

Rear I/O
USB
4 x USB 3.0
COM Port
1 x RS-232
LAN Port
2 x RJ-45
Audio
Mic-In, Line-In and Line-Out
PS2 KB/MS
1 x PS/2 Keyboard or Mouse
Display
Graphic Chipset
Intel® 7th Generation CPU integrated
Resolution
VGA: 2560 x 1600 @ 60 Hz
HDMI:3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz
DP:4096 x 2304 @ 60Hz
VGA + HDMI + DP
Audio
Audio Codec
Realtek ALC888S
Audio Amplifier
2 x 6W Amplifier
Ethernet
LAN Chipset
1 x Intel® I219LM
1 x Intel® I210AT
Power Requirement
Adapter
265W 1U Flex 100-240Vac Power Supply
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
275 x 210 x 230 mm
Ordering Information
Ordering Information
BMX-P54S-Q17K-B1R：Mini Server 4bays Storage System with Intel® 6/7th Generation Core™ Processors ATX Motherboard & Intel® Q170 Chipset
