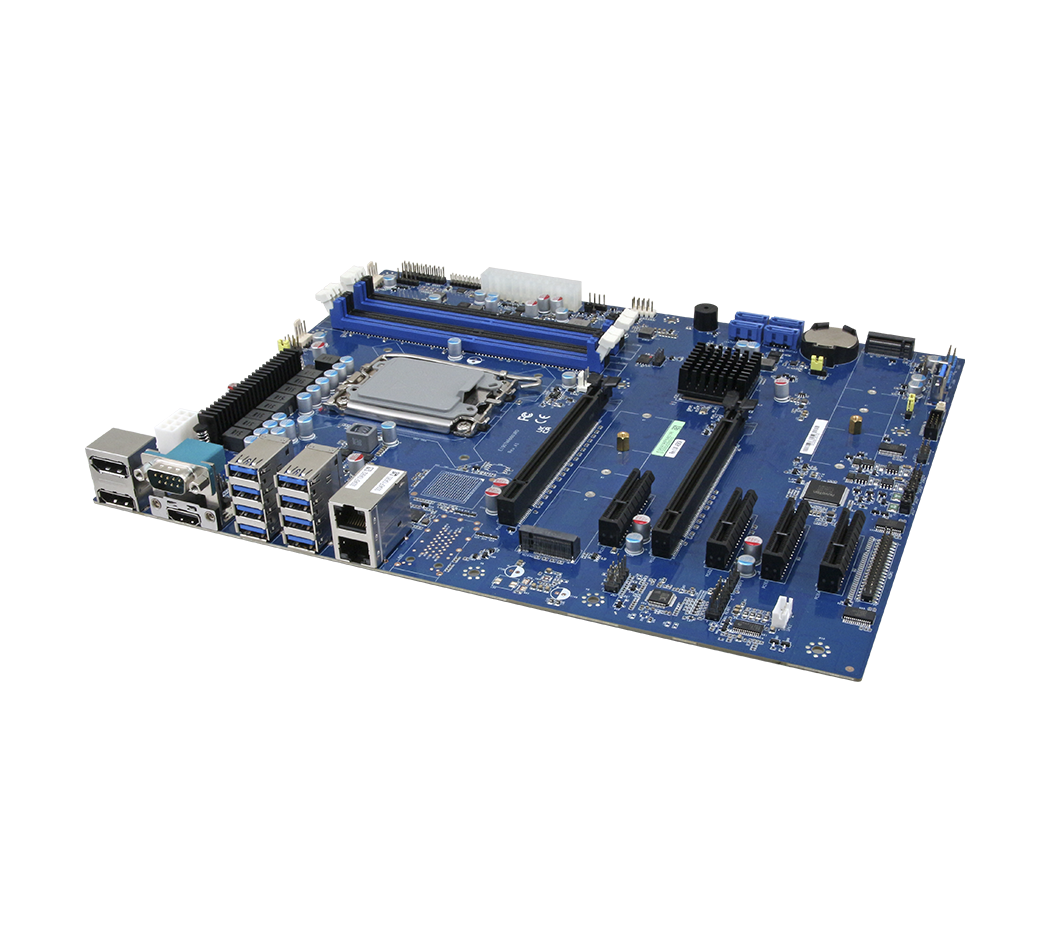

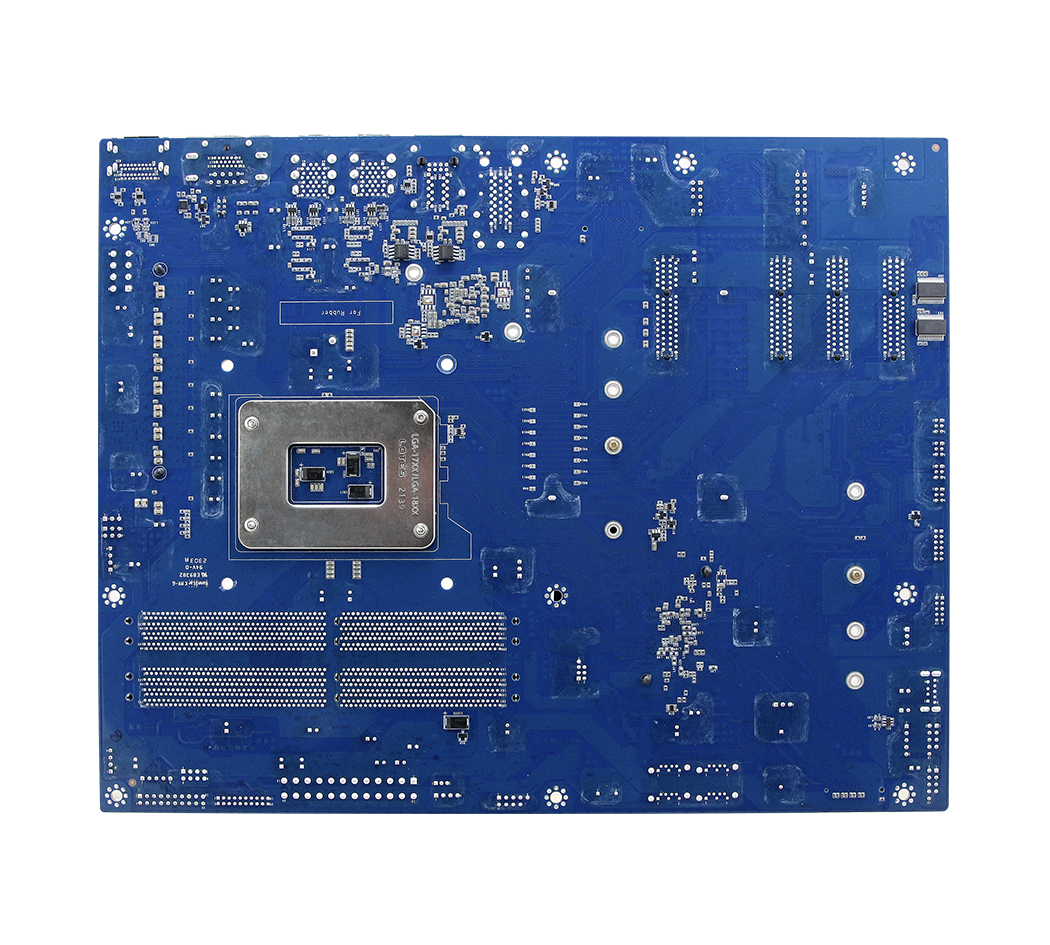

EAX-R680FP
12/13/14th Gen Intel® Core™ i9/i7/i5/i3 Processors, supports LGA1700 CPU Up to 125W Max
FEATURE
12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max, Intel® R680E Chipset
4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
2 x DP++, 1 x HDMI2.0b
2 x PCIe x16 Slots for 1 x PCIe x16 (Gen5) Default or 2 x PCIe x8 (Gen5), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3)
2 x Intel® i225LM 2.5G Gigabit Controller
8 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 Vertical Type A, 5 x USB by Pin-header
2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
6 x RS232, 2 x RS232/422/485 (COM2 & 3 By BIOS Selection)
ATX Power
Specification
Download
System Information
Processor
LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 125W)
Platform Controller Hub
Intel® R680E Chipset
System Memory
4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
I/O Chipset
nuvoton NCT6126D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard nuvoTon NPCT750AADYX Supports TPM 2.0
Board
ATX
Expansion
Expansion
2 x PCIe x16 slots for 1 x PCIe x16 Gen5 default or 2 x PCIe x8 Gen5
2 x PCIe x4 Gen4
1 x PCIe x4 Gen3
1 x PCIe x4 slot for 1 x PCIe x2 Gen3
Storage
Storage
2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
4 x SATAIII
Display
Graphic Chipset
Intel® 12th/13/14th Generation CPU Integrated
Spec. & Resolution
2 x DP (DP1.4a): Max (Combined): 7680 x 4320@60Hz
(DP++ Via dongle: 1920 x 1080@60 Hz)
1 x HDMI (HDMI 2.0b): Max Resolution 4K x 2K@60Hz (With HDR)
Multiple Display
Triple Display
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Mic-in, Line-out, 5.1-CH Audio
Audio Amplifier
2 x 6W 8Ω Amplifier
Ethernet
LAN Chipset
2 x Intel® i225LM 2.5G Gigabit Controller
LAN Port
2 x 2.5G LAN
Power Requirement
Power Mode
AT/ATX (Default Setting: ATX)
Software Support
OS
Windows 10, Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

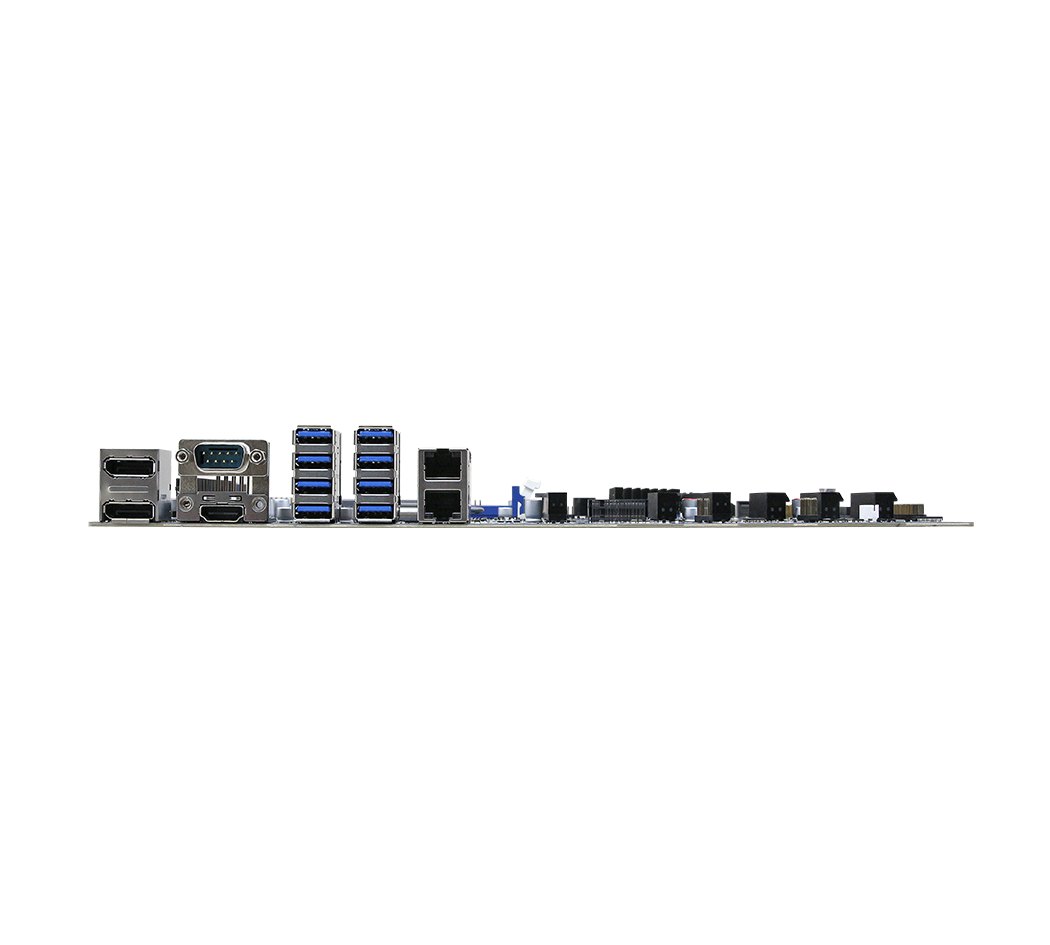

I/O
USB
8 x USB 3.2 Gen2
1 x USB 3.2 Gen1 Vertical Type A
5 x USB 2.0
COM Port
1 x RS232 on rear I/O, 2 x RS232/422/485 by pin-header, 3 x RS232 by pin header
SATA
4 x SATA III
RAID
Support RAID 0, 1, 5, 10
DIO
1 x 16-bit GPIO
Mechanical & Environmental
Operating Temp.
0~55°C (32~131°F), 0.5m/s Air Flow
Storage Temp.
-40~ +75°C (-40~167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
1.54lbs (0.7kg)
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
12" x 9.6" (304.8mm x 243.84mm)
Ordering Information
Ordering Information
EAX-R680FP-A1-1R: Intel R680E, 1 x PCIex16, without 10G
EAX-R680FP-A1-2R: Intel R680E, 2 x PCIex8, without 10G
