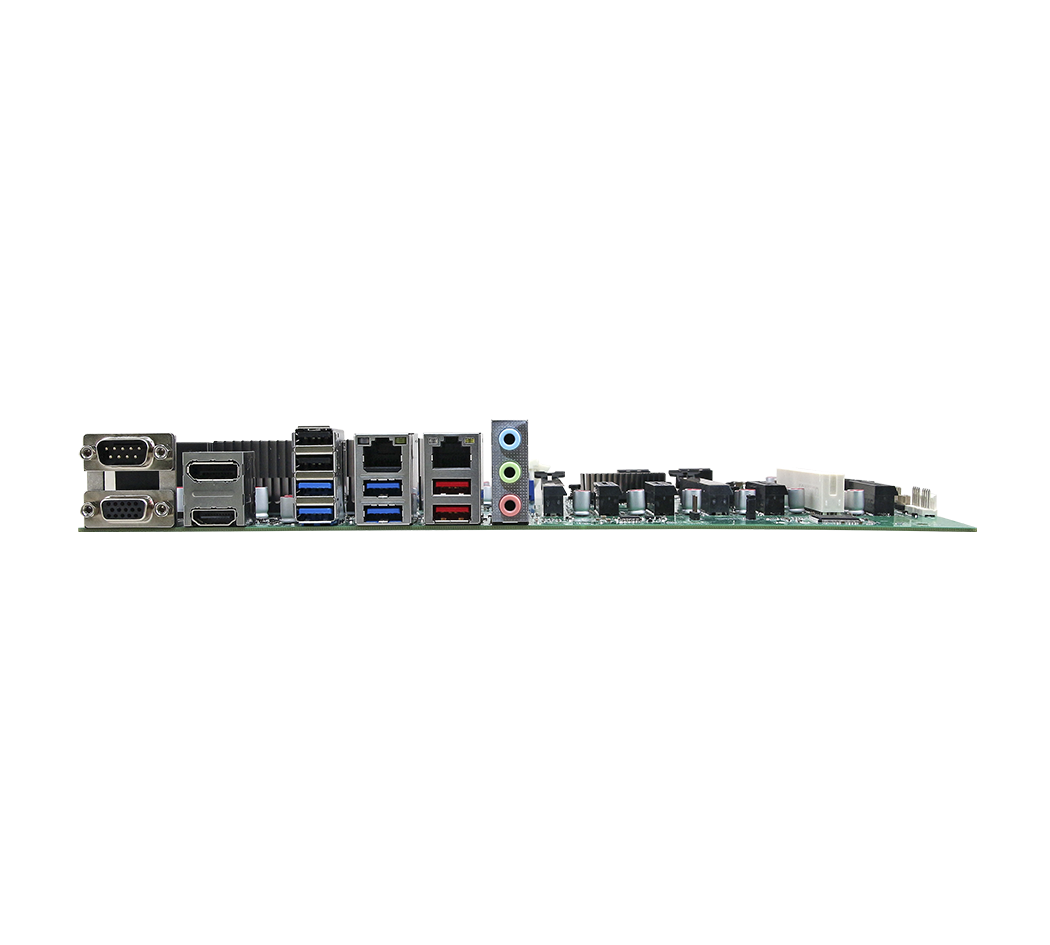

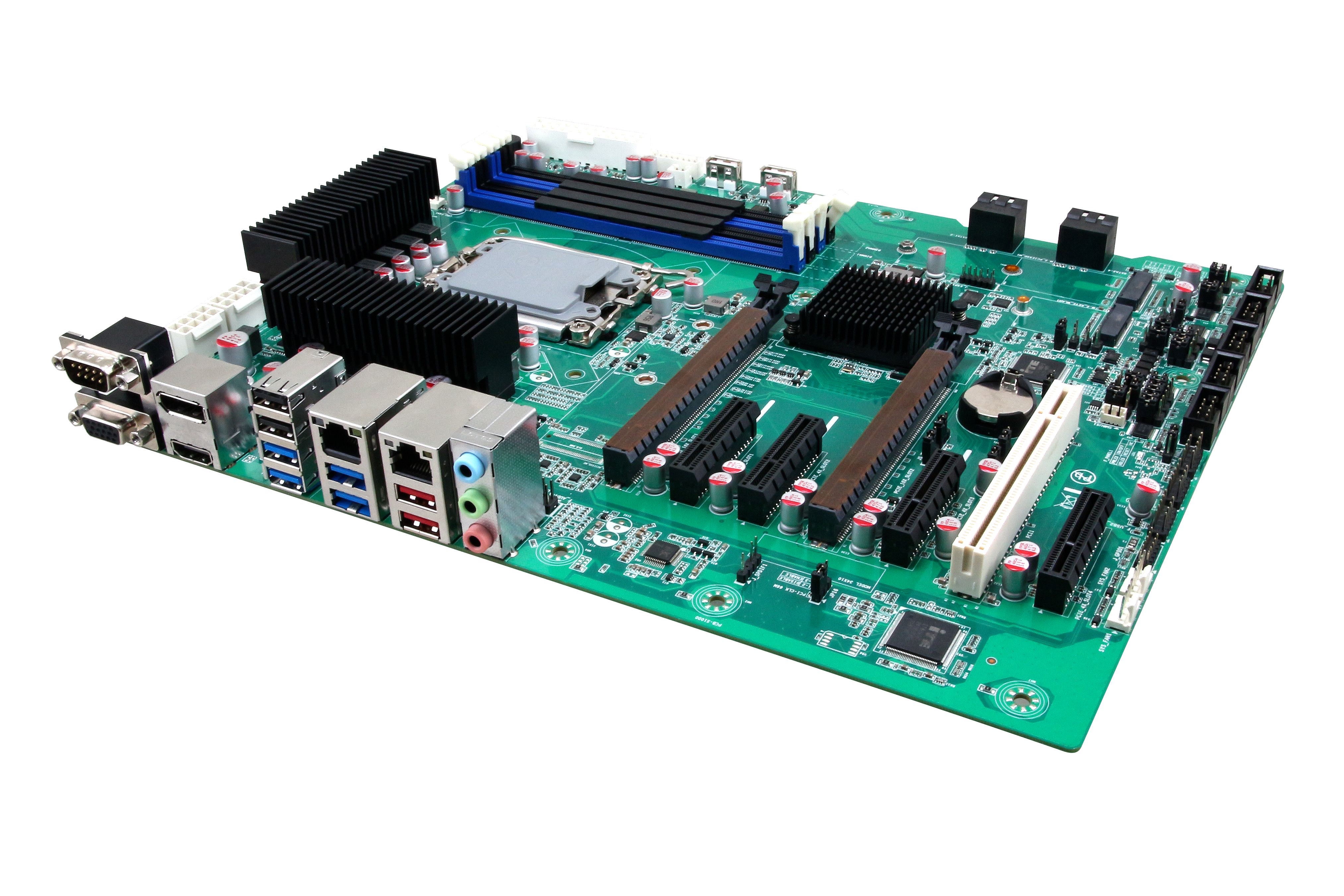

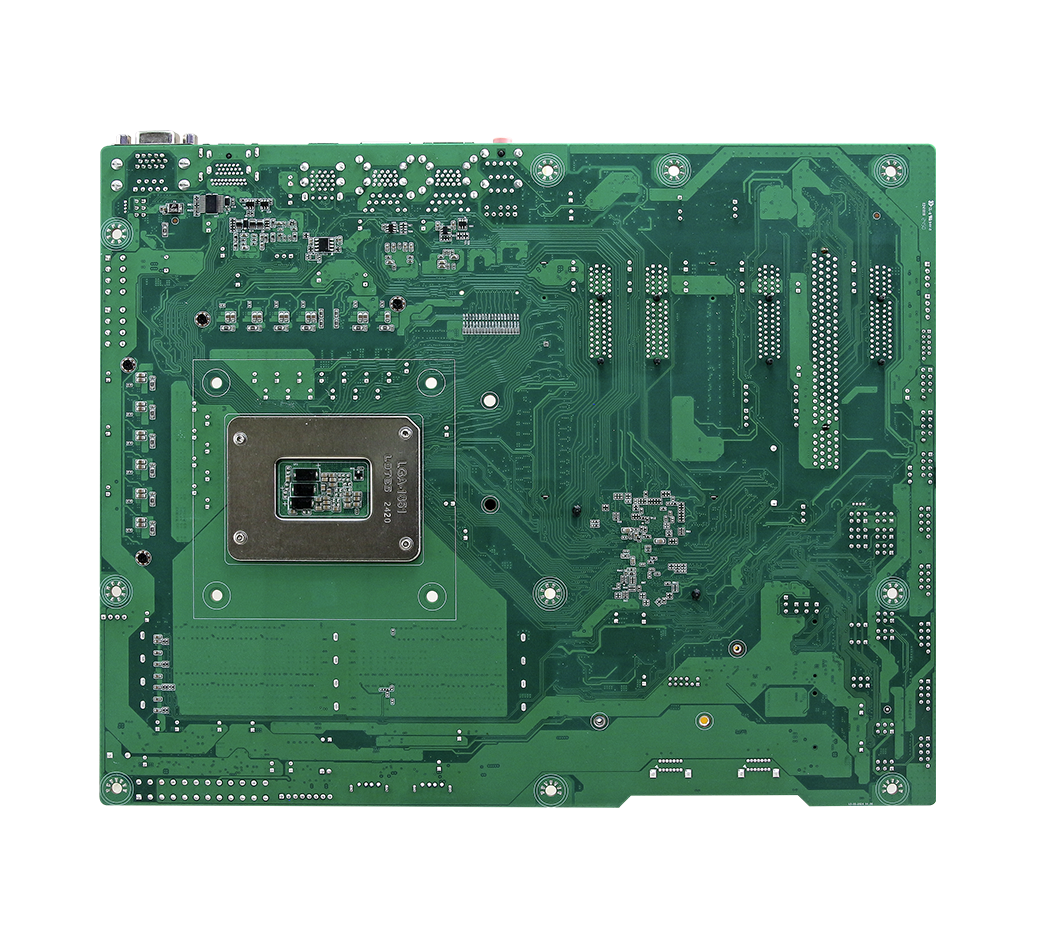

Processor

15th Intel® Core™ Ultra 9/7/5 Processor

Platform Controller Hub

Intel® Q870 Chipset

System Memory

4 x 288-Pin DDR5-4400/5600MHz U-DIMM Socket Supports Up to 192GB

I/O Chipset

ITE8786

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT750AADYX Supports TPM 2.0

Board

ATX

Expansion

1 x PCI-E x16 Slot (PCIe x16, GEN5) or 2 x PCI-E x16 Slot (PCIe x8, GEN4)
4 x PCI-E x4 Slot (PCIe x4, GEN4)
1 x PCI Slot
1 x PCI CLK 66MHz Enable/Disable Select Jumper
Note：PCIE x4 Slot4 PCIe x4 Gen3 Signal Colay with M.2 Key M
1 x M.2 E-Key 2230 (PCIE+USB2.0, support WiFi+ Bluetooth)

Storage

2 x M.2 Key M
4 x SATA Gen3 6Gbps

Graphic Chipset

Intel® 15th Generation CPU Integrated

Spec. & Resolution

1 x HDMI2.0, max resolution up to 4096x2160@30Hz
1 x DP++, max resolution up to 4096x2160@60Hz
1 x VGA, max resolution up to 1920x1200@60Hz

Multiple Display

Triple Display

Audio Codec

Realtek Audio HDA Codec

Audio Interface

1, Line-out + Line-in + MIC 3.5mm Jack
1, Front Audio Header (Line-Out + MIC)
1, SPDIF Out Header

LAN Chipset

1 x Intel® i210-AT Gigabit Controller
1 x Intel® i219-V Gigabit Controller

Ethernet Interface

100/1000 Base-T

LAN Port

2 x RJ-45

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB3.2 Gen1x1
2 x USB3.2 Gen2x1
5 x USB2.0

COM Port

4 x RS232 full, COM2/5/6, DCD/5V and RI/12V selectable by Jumper
1 x RS422/485/232, COM3, selected by Jumper, default RS232
1 x RS232/485, COM4, selected by Jumper, default RS232

SATA

4 x SATA III

DIO

4 x GPI, 4 x GPO

Operating Temp.

0~55°C (32~131°F), 0.5m/s Air Flow

Storage Temp.

-40~ +75°C (-40~167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

1.54lbs (0.7kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm)

Ordering Information

EAX-Q870C-A1R
ATX w/LGA1851/6COM/11USB/i210AT+I219V/A1
