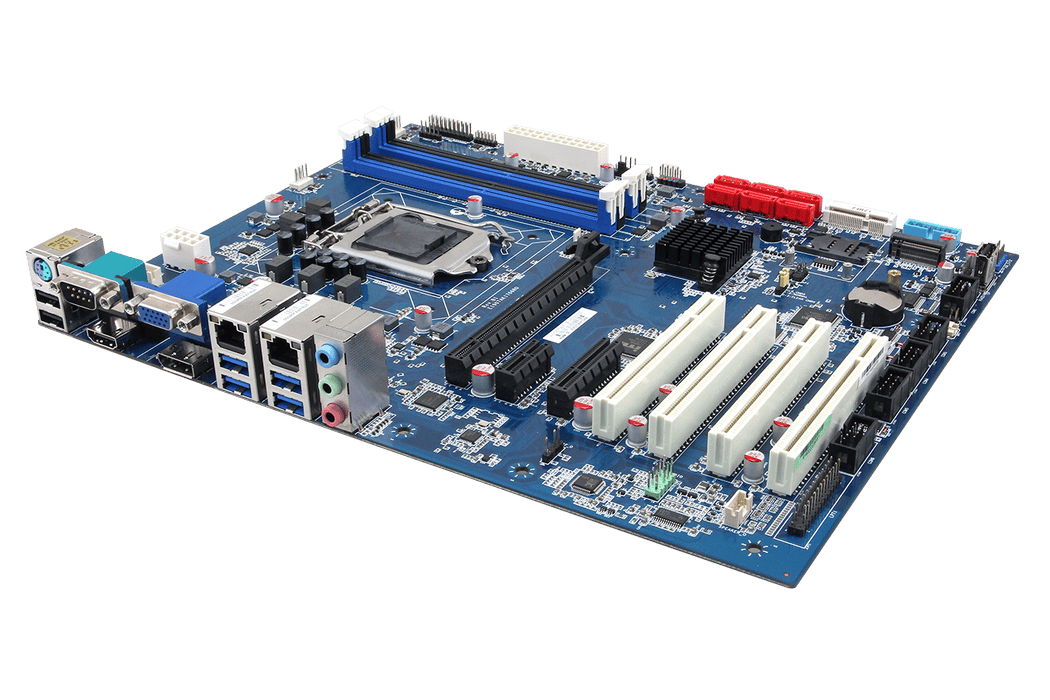

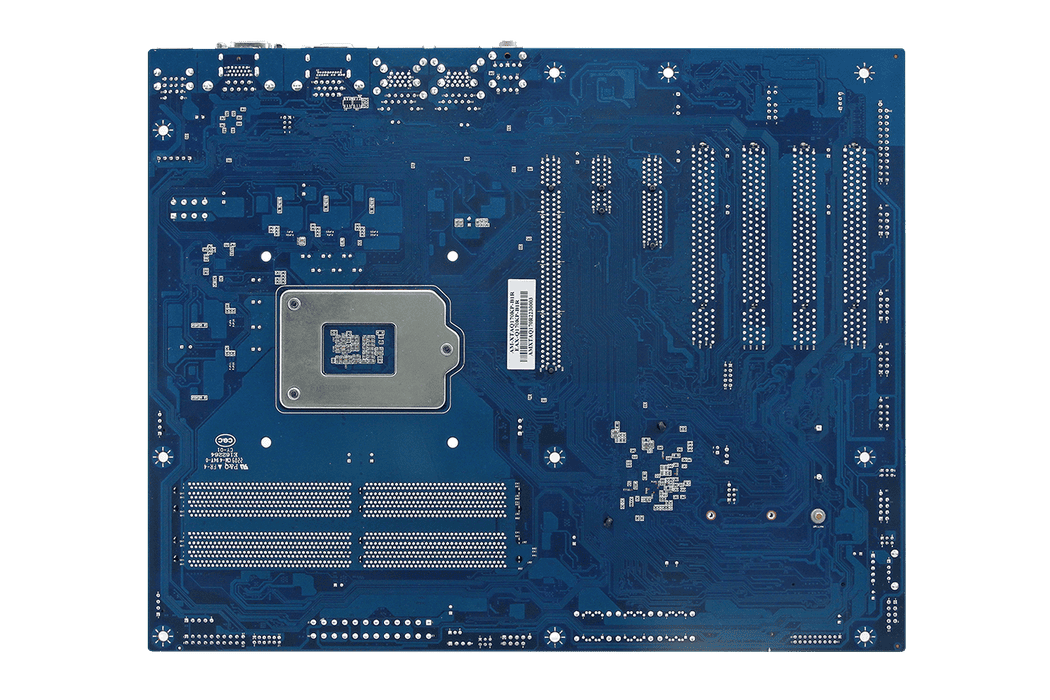

EAX-Q170KP
6/7th Gen. Intel® Core™ Processors ATX Motherboard With Intel® Q170 Chipset
FEATURE
6/7th Generation Intel® Core™ Processor (Max. TDP at 95W) with Intel® Q170 Chipset
4 x 288-pin DDR4 2133MHz DIMM Socket, Supports Up to 64GB
1x VGA, 1 x HDMI, 1 x DP
1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 1 x Mini PCIe, 4 x PCI
1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I210AT PCIe Gigabit Ethernet
6 x USB3.0, 6 x USB2.0, 5 x RS232, 1 x RS232/422/485
1 x M.2 (2230) A-Key, Support WiFi Module
5 x RS232, 1 x RS232/422/485
ATX/AT Power
Specification
Download
System Information
Processor
LGA1151 Socket Supports 6/7th Generation Intel® Core™ i7/ i5/ i3 / Pentium® / Celeron® Processors (Max. TDP at 95W)
Platform Controller Hub
Intel® Q170 Chipset
System Memory
4 x 288-Pin DDR4 2133MHz DIMM Supports Up to 64GB
I/O Chipset
nuvoton NCT6106D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 128Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard infineon SLB9665 Supports TPM 2.0
Board
ATX
Expansion
Expansion
4 x PCI
1 x PCIe x16
1 x PCIe x4
1 x PCIe x1
1 x M.2 (2230) A-Key, Supports WiFi Module
1 x SIM Card Slot
1 x Full/Half Size Mini-PCIe Supports mSATA (Auto Switch IC)
Display
Graphic Chipset
Intel® 6/7th Generation CPU Integrated
Spec. & Resolution
VGA: 2048 x 1536@50Hz
HDMI: 4096 x 2160@24Hz
DP: 4096 x 2304@60Hz
Multiple Display
Triple Display
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Line-in, Mic-in, Line-out
Audio Amplifier
2 x 6W 8Ω Amplifier
Ethernet
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I210AT PCIe Gigabit Ethernet
LAN Port
2 x RJ-45
Power Requirement
Power Mode
AT/ATX (Default Setting: ATX)
Software Support
OS
Windows 7, Windows 10, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

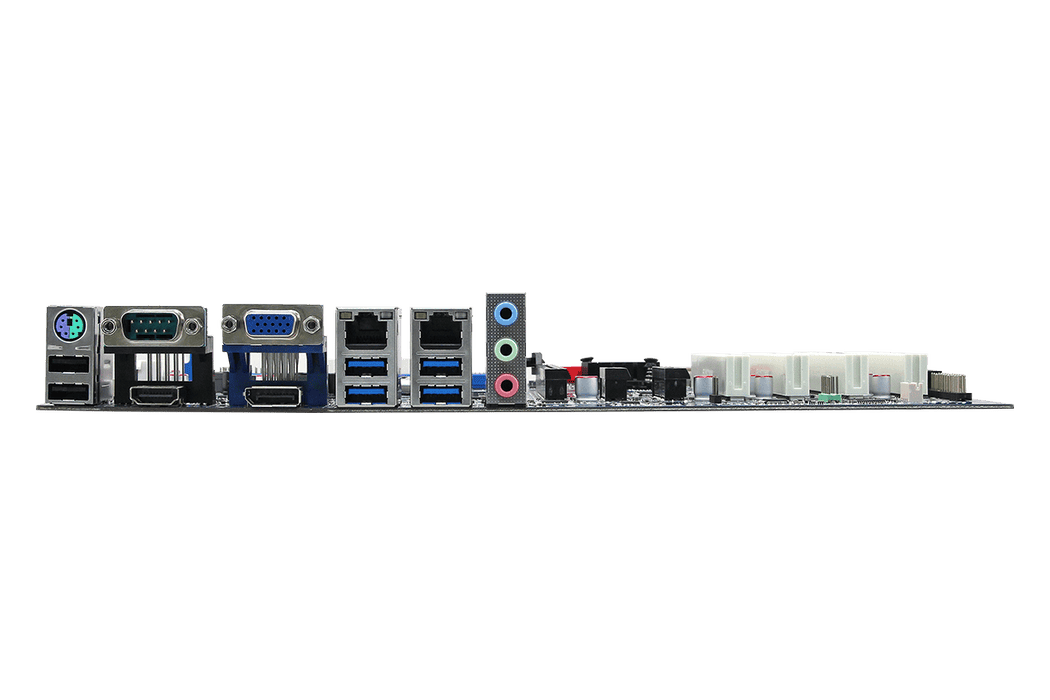

I/O
USB
6 x USB 3.0
2 x USB 2.0
COM Port
5 x RS232
1 x RS232/422/485
SATA
5 x SATA III
1 x SATA III & 1 x mSATA III Switch By Auto Switch IC
RAID
Support RAID 0, 1, 5, 10
DIO
1 x 8-bit GPIO
MIO
1 x PS/2 Keyboard or 1 x PS/2 Mouse
Mechanical & Environmental
Operating Temp.
0~60°C (32~140°F)
Storage Temp.
-40~ +75°C (-40~167°F)
Operating Humidity
40°C @ 95% relative humidity, non-condensing
Weight
1.32lbs (0.6kg)
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
12" x 9.6" (304.8mm x 243.84mm)
Ordering Information
Ordering Information
EAX-Q170KP-B1R
Intel® 6/7th Generation Core™ Processor ATX Motherboard With Intel® Q170 Chipset
