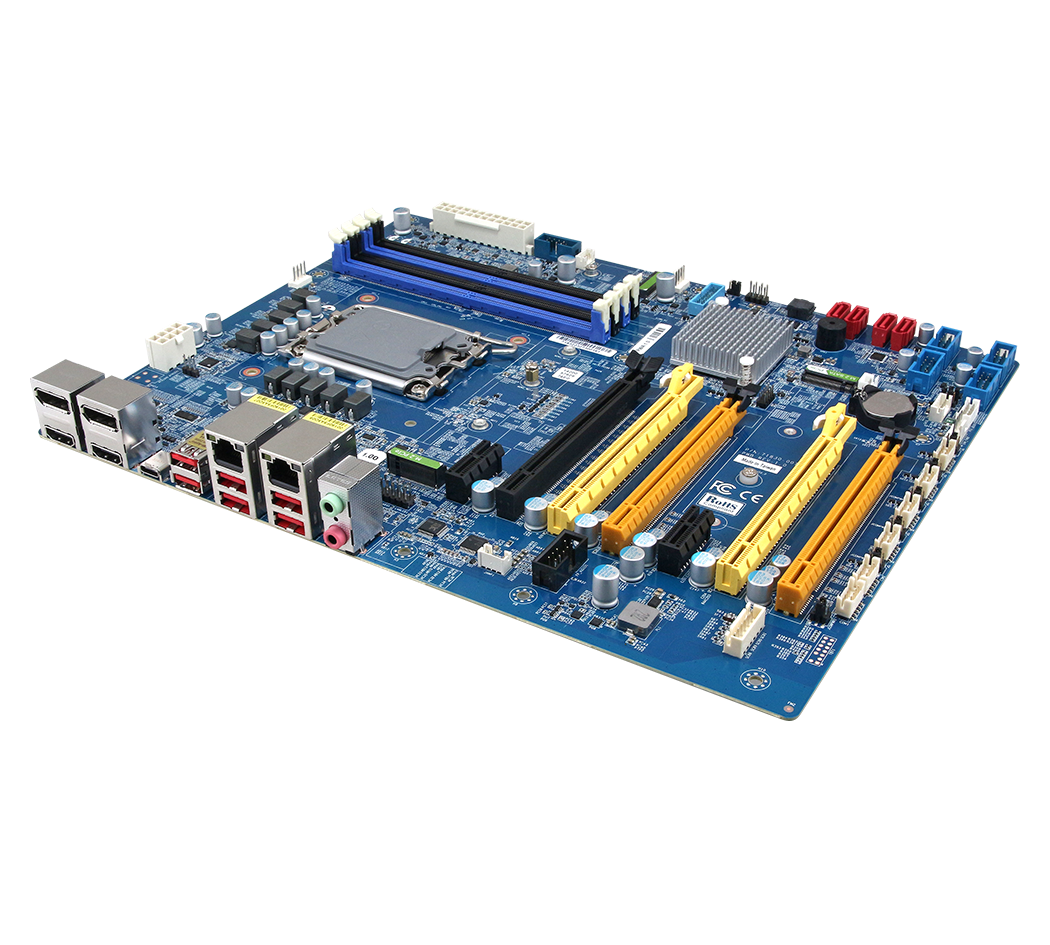

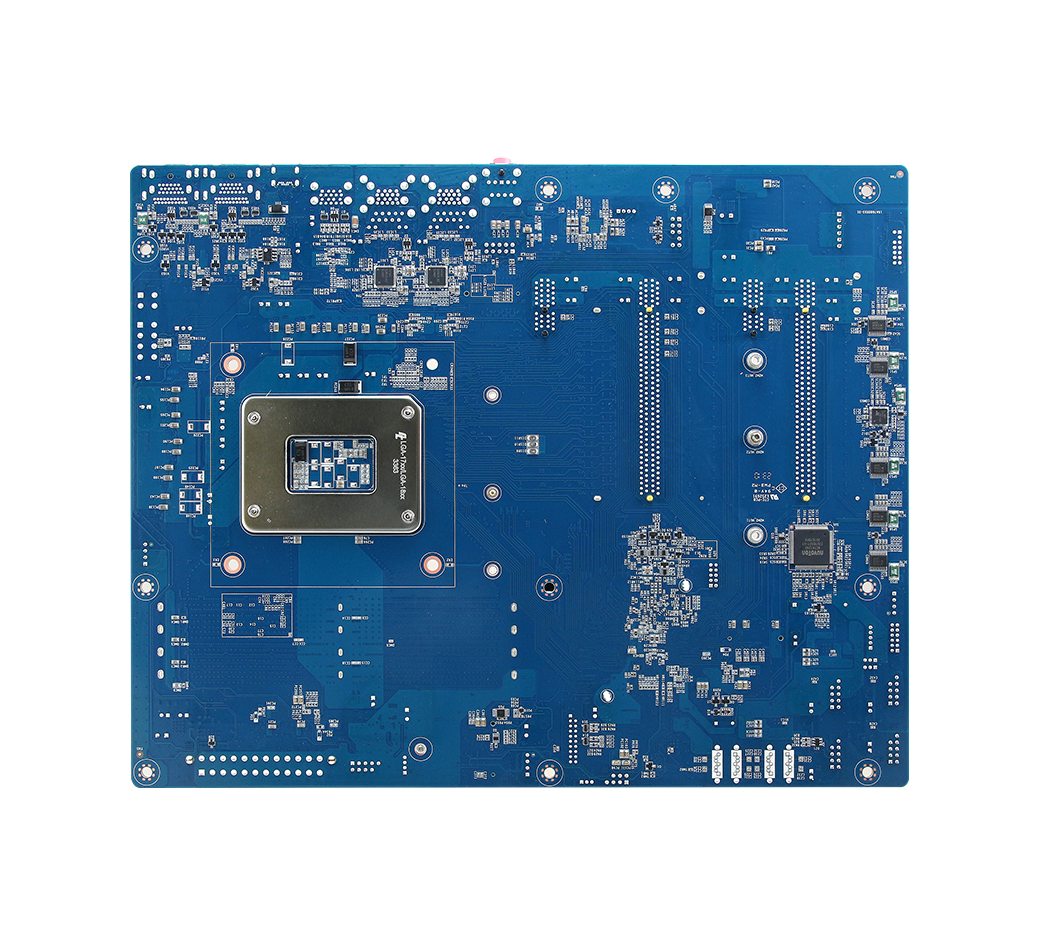

BC680R
12th/13th Gen. Intel® Core™ i9/i7/i5/i3 Processors, LGA 1700 Socket, ATX Motherboard With Intel® R680E
FEATURE
LGA 1700 Socket supports 12/13th Generation Intel® Core™ processors, Intel® R680E Chipset
4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket, up to 128GB.
2 x HDMI 2.0b and 2 x DP 1.4a, supporting 4K@60Hz.
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4, 1 x Gen3 PCIe x1, 2 x Gen 3 PCIe x1 Open End.
2 x Intel® I225-LM 2.5G Gigabit Controller
1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2x, 8x USB 2.0 (Headers), 2 x USB 3.2 Gen 2 (Headers)
1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230 with CNVi Support
6 x COM
ATX Power
Specification
Download
System Information
Processor
LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)
Platform Controller Hub
Intel® R680E Chipset
System Memory
4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
I/O Chipset
nuvoton NCT6126D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS 256Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard infineon TPM 2.0 SLB9670VQ2.0
Board
ATX
Expansion
Expansion
1 x Gen5 PCIe x16,
2 x Gen4 PCIe x4,
1 x Gen3 PCIe x4,
1 x Gen3 PCIe x1,
2 x Gen3 PCIe x1, Open End
1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 + SATA III)
1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 Only)
1 x M.2 Key E 2230 with CNVi Support (PCIe x 1 + USB 2.0)
Storage
Storage
1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 + SATA III)
1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 Only)
4 x SATA III
Display
Graphic Chipset
Intel® 12/13th Generation CPU Integrated
Spec. & Resolution
2 x HDMI (2.0b): 4K@60Hz
2 x Dual Mode DisplayPort (1.4a): 4K@60Hz
Multiple Display
Four Diaplay
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Mic-in, Line-out
Audio Amplifier
2 x 6W 8Ω Amplifier
Ethernet
LAN Chipset
2 x Intel® I225LM 2.5G Gigabit Ethernet
LAN Port
2 x RJ-45
Power Requirement
Power Mode
AT/ATX (Default Setting: ATX)
Software Support
OS
Windows 10, Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
6 x USB 3.2 Gen2x1
1 x USB 3.2 Gen2x2 Type-C
8 x USB 2.0 by pin header
2 x USB 3.2 Gen2 by pin header
COM Port
5 x RS-232
1 x RS-232/422/485
SATA
4 x SATA III
RAID
Support RAID 0, 1, 5, 10
DIO
1 x 8-bit GPIO
MIO
1 x PS/2 Header
Mechanical & Environmental
Operating Temp.
0~60°C (32~140°F)
Storage Temp.
-20 ~ 80°C (-4~176°F)
Operating Humidity
5% to 90% non-condensing
Weight
1.85lbs (0.85kg)
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
12" x 9.6" (304.8mm x 243.84mm)
Ordering Information
Ordering Information
71832-IA
LGA 1700 Socket Supports 12/13th Gen Intel® Core™ i9/i7/i5/i3 Processor, ATX Motherboard with Intel® R680E PCH
