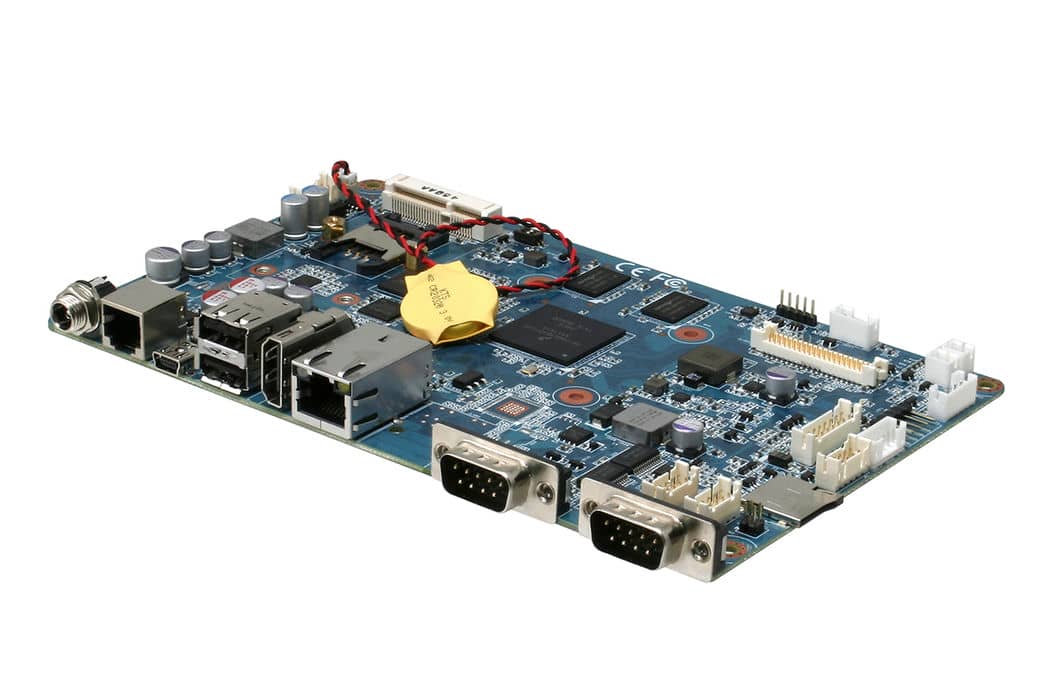

ACP-IMX6POS
NXP i.MX6 Cortex-A9 SBC
FEATURE
NXP i.MX6 Cortex-A9 Dual lite/Quad 1GHz CPU
Onboard 1GB(Dual Lite) or 2GB(Quad) DDR3 SDRAM
Onboard 4GB eMMC, up to 8GB
Quad(VGA+HDMI or LVDS+HDMI or VGA+LVDS) Dual Lite(LVDS+HDMI)
1x GLAN, Optional 2nd GLAN
4x UART (2x RS232, 2x RS232/485)
USB Touch Controller Penmount 6000 (5W RES)
Optional Freescale G Sensor MMA8451
Cash Drawer interface (RJ11)
12~24V DC Input
Specification
Download
System Information
Processor
NXP i.MX 6 Dual Lite
NXP i.MX 6 Quad Core
System Memory
1 GB DDR3 (Dual Lite)
2 GB DDR3 (Quad Core)
expandable to 2 GB
Storage
Storage
eMMC 4 GB
Display
Multiple Display
Quad(VGA+HDMI or LVDS+HDMI or VGA+LVDS)
Dual Lite(LVDS+HDMI)
Audio
Audio Codec
Wolfson WM8962
Audio Interface
2P Pin Header x 2 (Speaker-out R & L) (Driver Per Channel Max 2W)
Ethernet
Ethernet Interface
2 x RJ45 Connectors for Dual Gigabit LAN
LAN Chipset
LAN 1: From i.MX6 MAC, PHY is Micrel KSZ9031RNX LAN 2: Intel 82574L by PCIe Interface (Optional)
Power Requirement
DC Input
DC 12 ~ 24V Power Input
Power Mode
2.5mm DC Jack
Software Support
OS
Android 4.4
Yocto 1.7
Certification
Certification Information
CE
FCC Class B
I/O
External I/O Connector
1 x USB2.0 Type A x2 (Double deck)
1 x 10/100/1000 LAN
Optional 2nd 1 x 10/100/1000 LAN (RJ45 x 1)
1 x HDMI Connector (Vertical Type)
1 x Mini USB Connector
1 x RJ11 Connector for Cash Drawer
2 x DB9 Male Connector
(COM 1 & 2 can be select from RS232/422/485)
1 x DC 12V Power Input by Power DC Jack
1 x Micro SD socket
COM Port
2 x RS232
USB
3 x USB 2.0 Port (1x OTG)
Internal I/O Connector
2 x RS232, 1 x debug port
1 x LVDS 24bit x2, 1 x Backlight control
1 x VGA, 1 x I2C
3 x USB pin header
1 x 5-wire Resistive Touch Interface
1 x Dual Channel 24-bit LVDS
1 x Stereo Speaker-out
1 x Mini PCIe (Full size)
1 x SIM Socket
1 x Front Panel Connector
with Power Button & Indicate
LED for Power & WIFI
1 x Battery connector for RTC
Mechanical & Environmental
Operating Temp.
A Version 0°C ~ 60°C (32°F ~ 140°F)
B Version -20°C ~ 85°C (-4°F ~ 185°F)
Storage Temp.
-40°C ~ 85°C (-40°F ~ 185°F)
Dimension (L x W)
(175mm x 110mm)
Weight
0.16kg
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Power Requirement
DC 12 ~ 24V Power Input
Ordering Information
Ordering Information
ACP-X6Q12J-A1R-00
ACP-IMX6POS Rev.A1 Qual CPU, DDR3 2GB, 4GB eMMC, 0 ~ 60°C
ACP-X6L12H-A1R-00
ACP-IMX6POS Rev.A1 Dual Lite CPU, DDR3 1GB, 4GB eMMC, 0 ~ 60°C
BCC-WLAN-04R
Wi-Fi 802.11a/b/g/n/ac + Bluetooth4.1 Module with PCI-e Half-Mini Card
