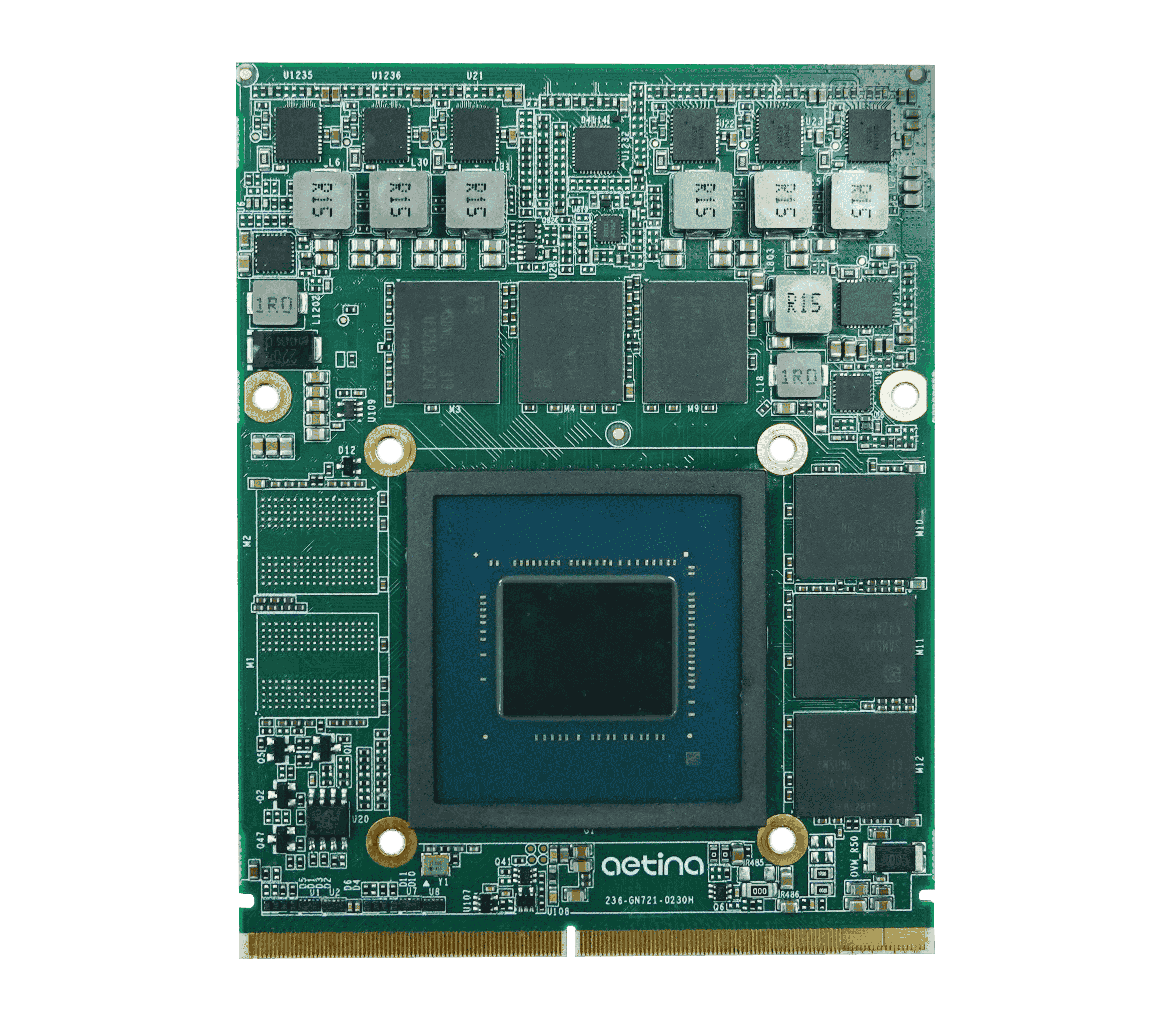

MX3500A-SA
FEATURE
NVIDIA RTX 3500 Ada Generation Embedded GPU based on NVIDIA Ada Lovelace architecture
5120 CUDA cores, 40 RT cores and 160 Tensor cores, 12GB GDDR6 memory
PCIe Gen 4 x16 interface
23.04 TFLOPS peak FP32 performance
Support Error Correction Code(ECC)
Specification
Download
Expansion Interface & Mechanical Form
Bus Type
PCI Express 4.0 x16
Form Factor
MXM graphics module version 3.1, Type B
GPU Engine
GPU Architecture
NVIDIA Ada Lovelace
Graphics Processing Unit
NVIDIA RTX™ 3500 Ada Generation Embedded GPU
NVIDIA CUDA Cores
5120
Tensor Cores
160
RT Cores
40
Graphics Clock (MHz)
1725 / 2250
Floating Point
23.04 TFLOPS
Memory
Memory Size
12GB GDDR6
Memory Clock
18 Gbps
Memory Interface Width
192-bit
Memory Bandwidth
432 GB/sec
Feature Support
DirectX
12 Ultimate
Vulkan
1.2
OpenGL
4.6
Operation System
Windows 10/11 64-bit /Linux 64-bit
Display
Max. Displays per Board
Max: 4x DisplayPort 1.4a
Max. Digital Resoultion
7680 x 4320
Outputs
Outputs
DisplayPort 1.4a
Power
Total Graphics Power (TGP)
115 W
Mechanical & Environment
Dimensions (mm)
82.0 x 105.0
Operation Temperature(Standard)
0℃ ~ +55℃ (32°F ~ 131°F)
Storage Temperature
-40°C ~ +85℃ (-40℉ ~ +185℉)
Humidity
40°C@ 95%, Non-condensing
Certification
CE/FCC/UKCA
