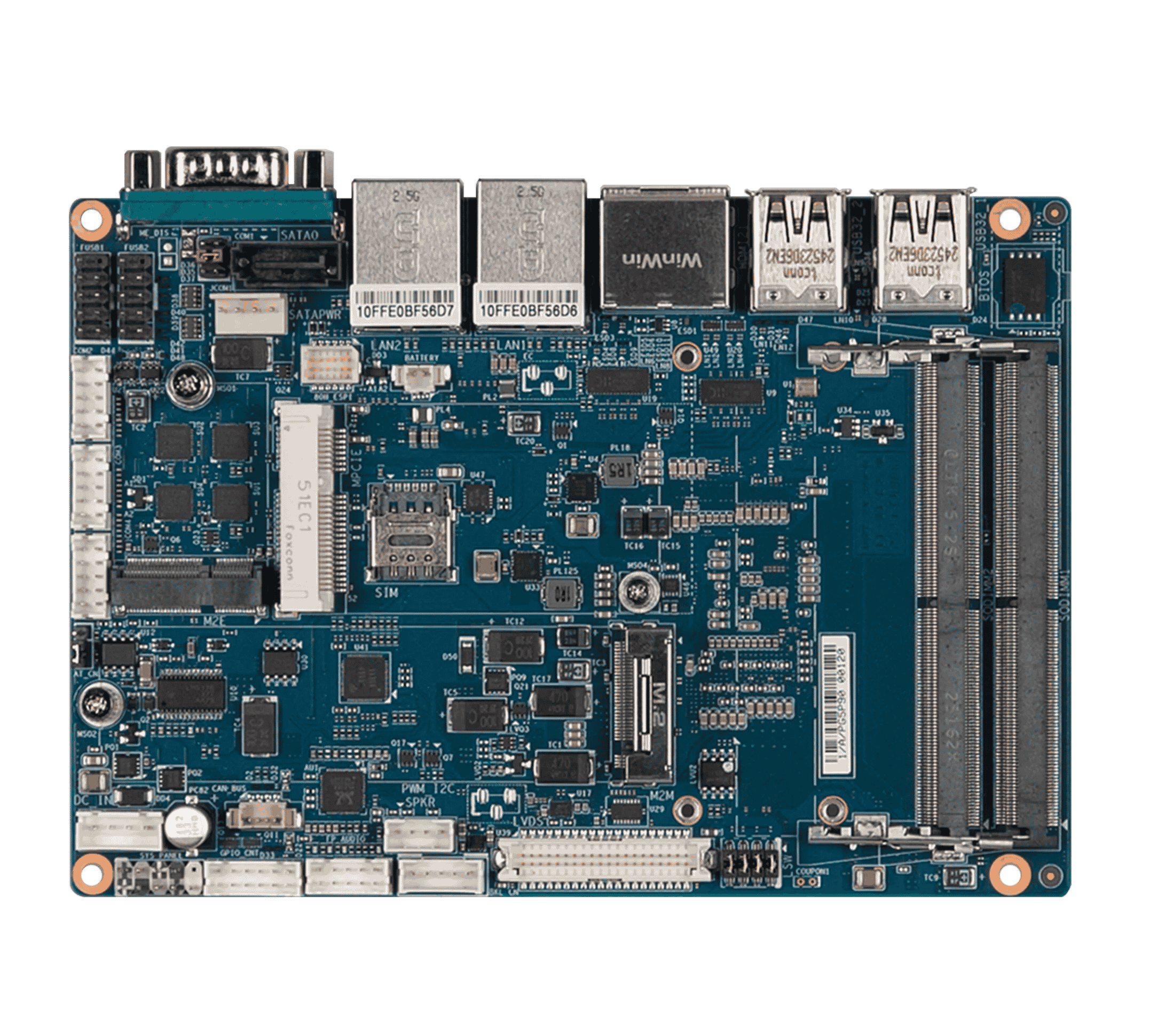

QBiP-225UB
3.5" SubCompact Board with Intel® Core™ Ultra 5 Processor 225U, Dual Channel DDR5 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0
FEATURE
Intel® Core™ Ultra 5 Processor 225U
Dual Channel DDR5, 2 x SO-DIMMs / CSO-DIMMs
2 x HDMI, LVDS ports for multiple display
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x CAN Bus header
Specification
Download
System Information
Processor
Intel® Core™ Ultra 5 Processor 225U
Intel® 3, 12 cores, 2P+8E+2LPE, 14 threads, up to 4.8 GHz
TDP 15W
12 MB Smart Cache
System Memory
2 x DDR5 SO-DIMM/CSO-DIMM sockets, Max. Capacity 128 GB
Support Dual Channel DDR5 5600/6400 MHz memory modules
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672XU2.0
Expansion
Expansion
1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Storage
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Display
Digital Display Interface
Integrated Graphics Processor - Intel® Graphics:
2 x HDMI2.1 port, supporting a maximum resolution of 7680x4320 @60Hz (HDMI 2 port support HDMI CEC)
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Ethernet
LAN Chipset
Intel® I226V & I226LM
LAN Port
2 x 2.5GbE LAN Ports
Power Requirement
DC Input
DC in +9V~36VDC
DC Input Connector
1 x 4-pin box power connector
Software Support
OS
Windows 10/11 (x64)
Certification
Certification Information
CE, FCC, RoHS Compliant
External I/O
USB
4 x USB 3.2 Gen 2x1
LAN Port
2 x RJ45 LAN Ports
I/O
USB
4 x USB 3.2 Gen 2x1
COM Port
1 x COM Port (RS-232/422/485 & RI/5V/12V)
3 x COM Ports (RS-232/422/485)
SATA
1 x SATA 6Gb/s Port (SATA RAID 0/1)
RAID
SATA RAID 0/1

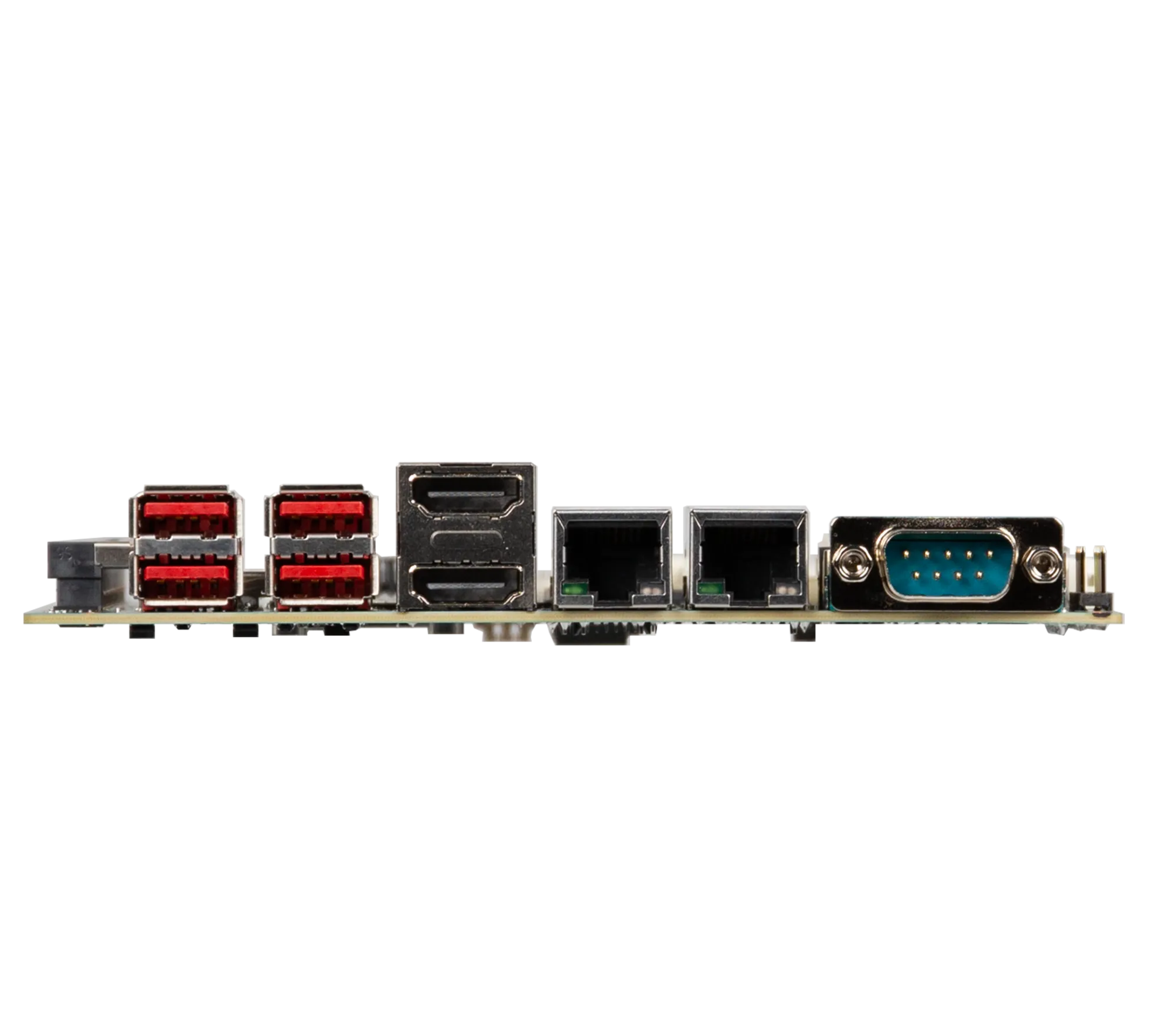

External I/O Connector
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
Internal I/O Connector
1 x 4-pin box power connector (DC in +9V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x CANBus header
DC In / Out Connector
Input Power Connector
4-pin box power connector
Reliability
Operating Humidity
60°C @ 20-95% (non-condensing)
Mechanical & Environmental
Operating Temp.
0°C to 60°C
Storage Temp.
-40°C to 85°C
Operating Humidity
60°C @ 20-95% (non-condensing)
Weight
0.35 lbs
Power Mode
AT/ATX mode
Dimension (L x W)
3.5" SBC
146W x 101.7D(mm)
Ordering Information
Ordering Information
9MARU5BSMR-SI (Box Packing)
