Processor

Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz)
Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz)
Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.90 GHz) Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz)

System Memory

2 x 260-Pin DDR4 2400Mhz SO-DIMM Socket, Supports Up to 64GB Max.

I/O Chipset

EC iTE IT8528E

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

Monitoring CPU Temperature, Voltage and FAN Status with Auto Throttling Control

TPM

Onboard TPM 2.0

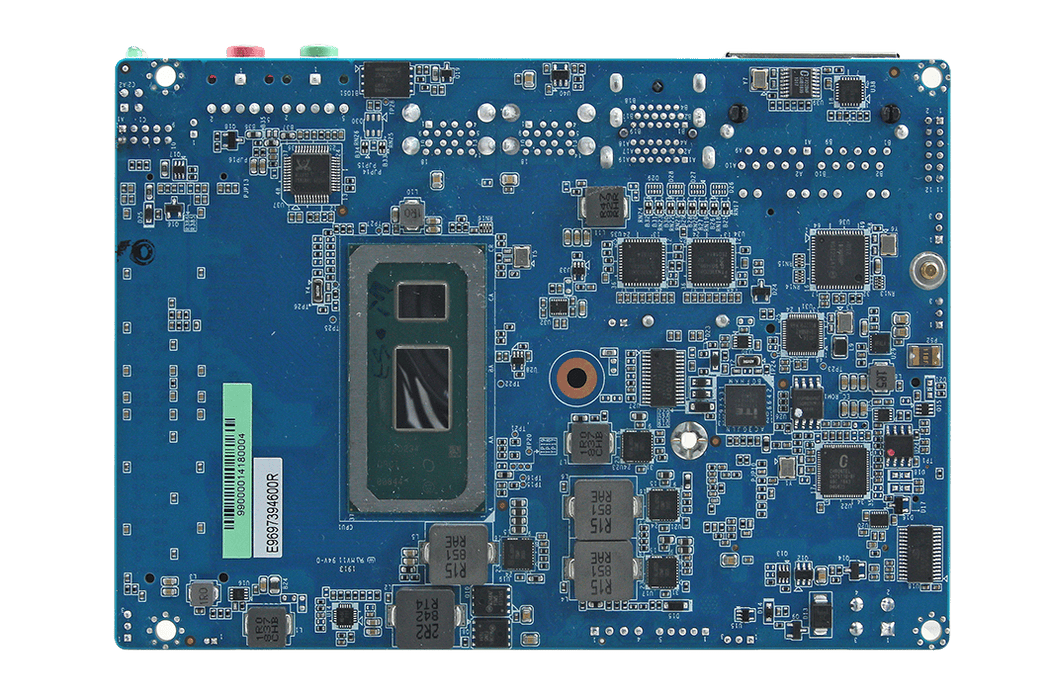

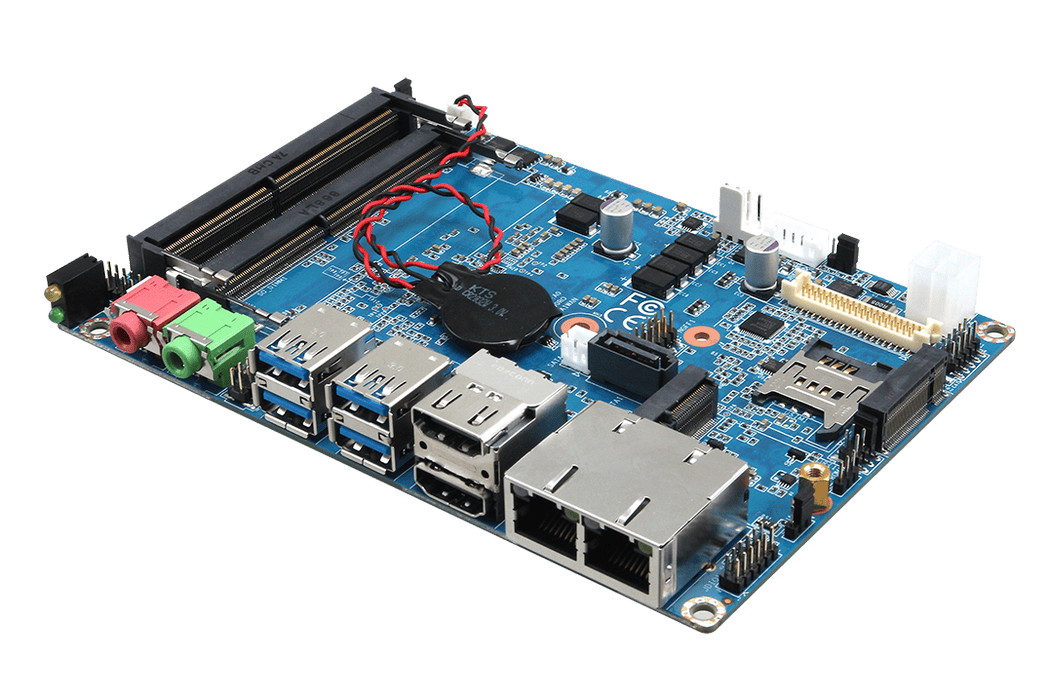

Board

3.5"

Expansion

1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot)
1 x M.2 (Key-E, 2230, PCIe, USB2.0, CNVi)

Storage

1 x M.2 (Key-B, 2242)
1 x SATA III
Support RAID 0/1

Graphic Chipset

Intel® UHD Graphics 620 (i7-8665UE, i5-8365UE, i3-8145UE)
Intel® UHD Graphics 610 (4305UE)

Spec. & Resolution

2 x HDMI 1.4: Max. resolution 4096 x 2160@24/30Hz
1 x Dual Channel 18/24-bit LVDS: Max. resolution 1920 x 1200@60Hz

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-In, Line-Out

LAN Chipset

1 x Intel® I210AT
1 x Intel® I219LM

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 10, Linux

Certification Information

CE, FCC, RoHS Compliant

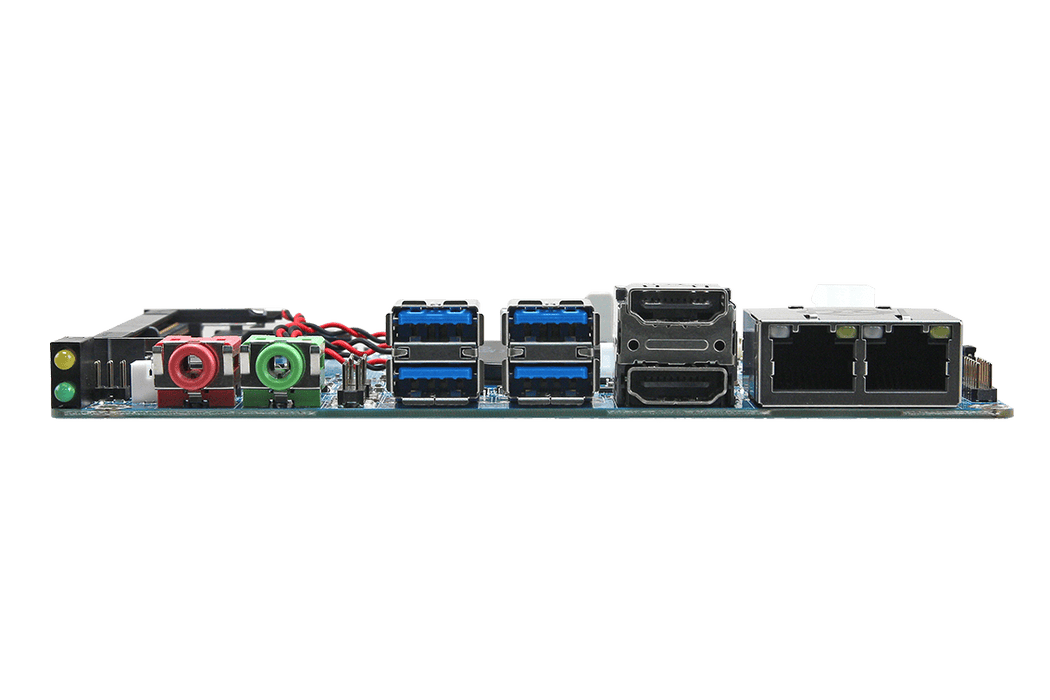

USB

4 x USB 3.1 (Gen. 2)
2 x USB 2.0

COM Port

1 x RS-232

SATA

1 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x LPC
1 x SPI
1 x SMBus
1 x SIM Card Slot

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F), with 0.2m/s Air Flow

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.041lbs(0.03kg)

Power Requirement

DC in +12V

Dimension (L x W)

5.7" x 4" (146mm x 101mm)

Ordering Information

ECM-WHL-4305-B2R
3.5” w/Celeron 4305UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler

ECM-WHL-8145-B2R
3.5” w/i3-8145UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler

ECM-WHL-8365-B2R
3.5” w/i5-8365UE /2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler

ECM-WHL-8665-B2R
3.5” w/i7-8665UE/2-DRAM Socket/2-HDMI/6-USB/2-LAN/2-M.2/TPM2.0/Cooler
