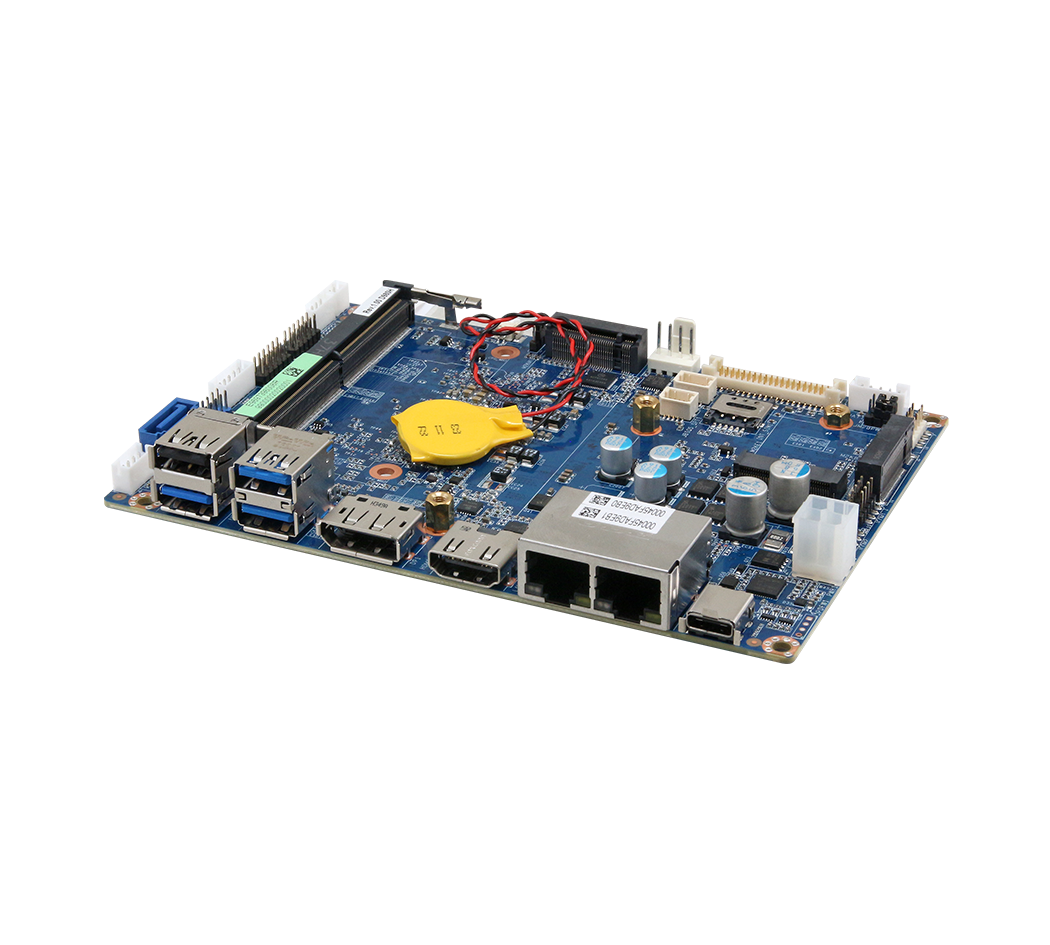

ECM-RPL
13th Gen Intel® Core™ SoC i7/i5/i3/Pentium® BGA Processor 3.5” Micro Module
FEATURE

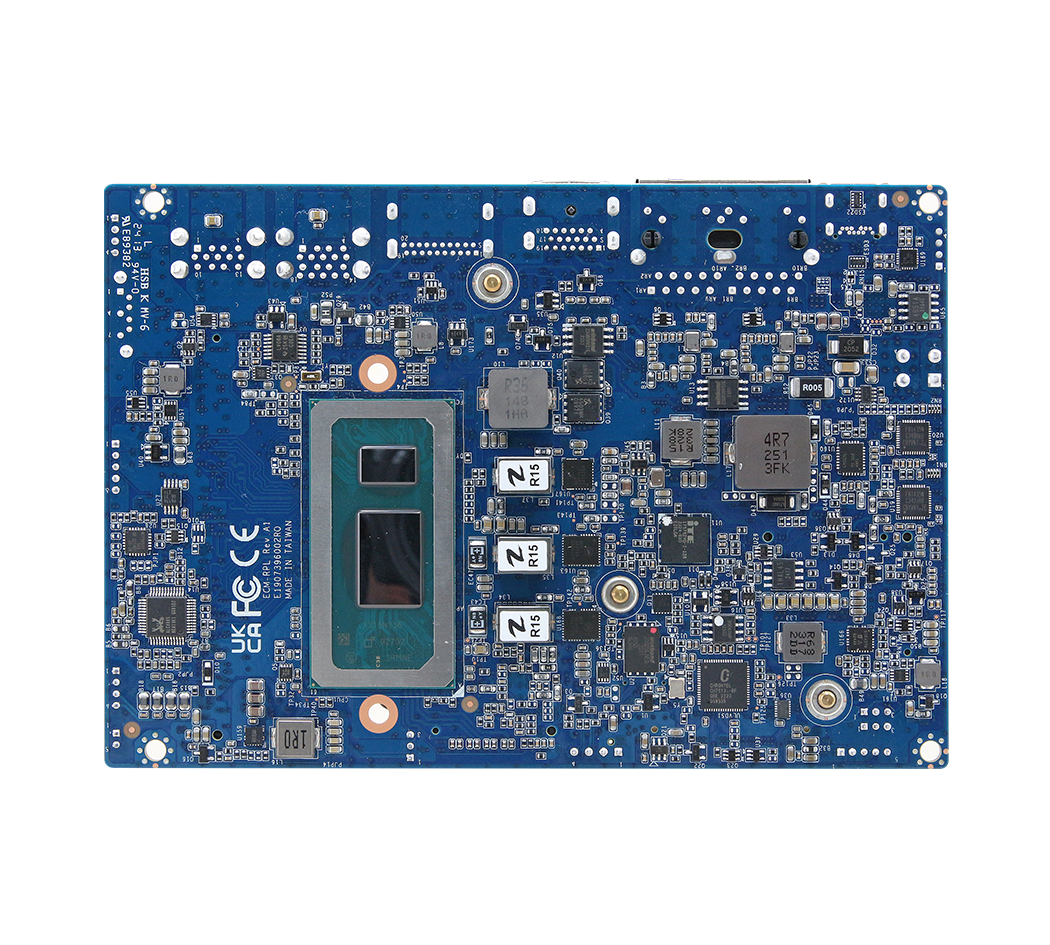

Bottom Layer Soldered Processor
One 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max. (non ECC only)
Four Display, 1 x DP++, 1 x HDMI, 1 x 2CH LVDS or eDP, 1 x USB Type C support DP
Expansion Slot, M.2 Key-B, M.2 Key-E, M.2 Key-M
Two Gigabit Ethernet, 2 x 2.5GbE
DC in +9V ~ +36V or USB Type C Adapter (20V) Note: DCIN & USB Type C Adapter Can Only Use Either One
Specification
Download
System Information
Processor
13th Gen. Intel® Core™ i7/i5/i3/Pentium® BGA Processor, support Up to 15/28W Max
System Memory
1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max. (non ECC only)
I/O Chipset
EC iTE IT5782VG
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
BIOS
AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU & system temperature monitoring Voltages monitoring
TPM
Onboard NuvoTon NPCT760AABYX/NPCT754AADYX (for extend temperature) supports TPM 2.0
Board
3.5"
Expansion
Expansion
1 x M.2 Type M 2280 (with 1 x PCIe Gen4 x4)
1 x M.2 Type B 3042/3052/2242 (with PCIe x1 Gen3, SATA and USB 2.0, USB 3.0, with 1 x SIM card slot, supports WWAN+GNSS or SSD)
* Only supports one SIM card (co-lay 1 x 10pin FPC connector for uSIM card adapter) support 5G (3.3V & 3.8V)
1 x M.2 Type E 2230 support CNVi and WiFi 6E module (1 x PCIe x1 & USB 2.0 Signal)
Storage
Storage
1 x M.2 (Type M, 2280)
1 x M.2 (Type B, 3042/3052/2242)
1 x SATA III
Display
Graphic Chipset
Intel® UHD Graphics or Iris® Xe Graphics CPU integrated
Spec. & Resolution
1 x DP 1.4: 7680 x 4320@60 Hz
1 x DP++: 1920 x 1080@60 Hz
1 x USB Type C support DP: 3840 x 2160@60Hz
1 x HDMI 2.0b: 3840 x 2160@60Hz
Note: This resolution is actual test result. Intel resolution as below:
1 x DP 1.4: Max 7680 x 4320@60 Hz
1 x USB Type C support DP: 4096 x 2304@60Hz
1 x HDMI 2.0b: 4096x2160@60Hz
1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes), default LVDS
Note: JLVDS1 Support 1 x LVDS or 1 x eDP
Multiple Display
Four Display
LVDS
1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes) Default LVDS.
Note: JLVDS1 Support 1 x LVDS or 1 x eDP
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Line-in, Mic-in, Line-out
Audio Amplifier
2 x 2W 4Ω Amplifier
Ethernet
LAN Chipset
2 x Intel® I226LM for standard temperature/Intel® I226IT for extend temperature
Ethernet Interface
10/100/1000/2.5G Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
Power Mode
AT/ATX (Default Setting: AT)
Software Support
OS
Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

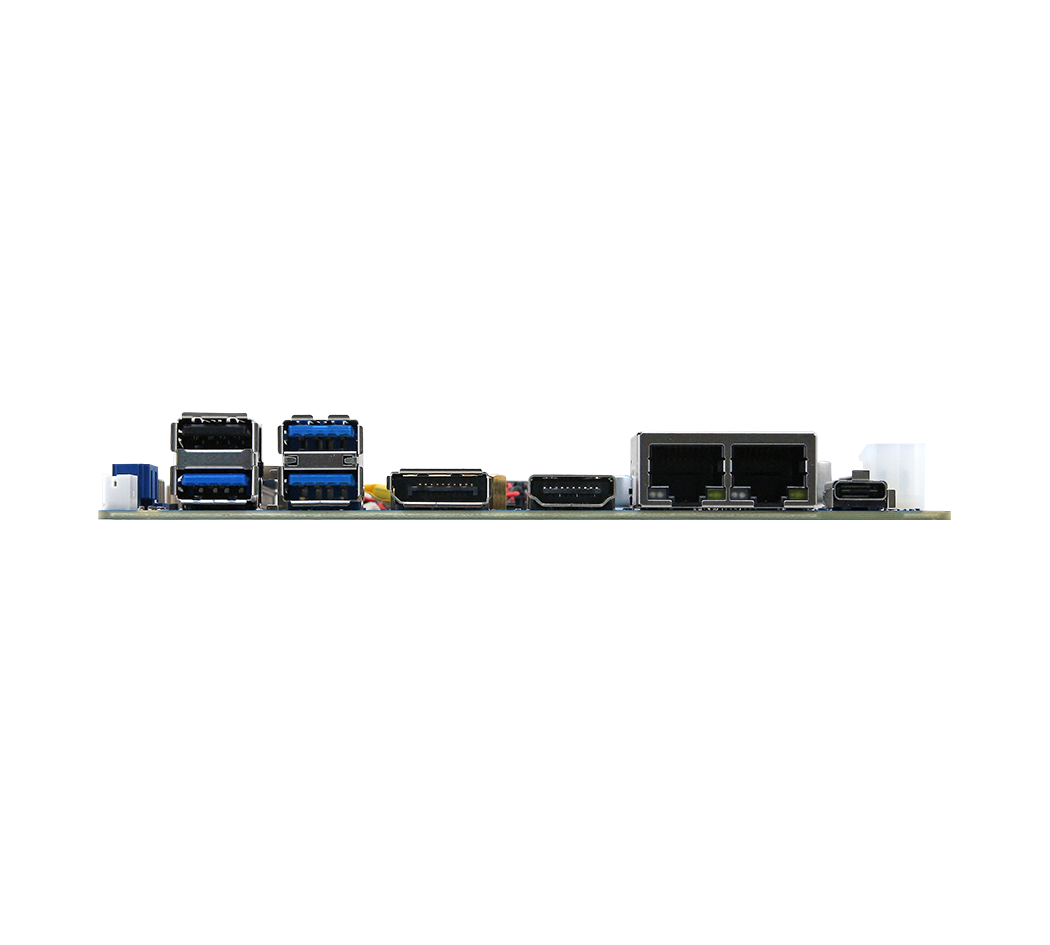

I/O
USB
3 x USB 3.2 Gen2
4 x USB 2.0
1 x USB Type C support DP/USB 3.2 Gen 1, 5V x 3A
COM Port
2 x RS-232/422/485
SATA
1 x SATA III
DIO
1 x 8-bit GPIO
MIO
1 x eSPI
1 x SIM Card Slot
Mechanical & Environmental
Operating Temp.
Standard Temperature CPU SKU: 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow
Extend Temperature CPU SKU: -40°C ~ 70°C(-40~°158F) with 0.5m/s Air Flow for Wide Temp CPU SKU
Storage Temp.
-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.44lbs (0.2kg)
Power Requirement
DC in +9V ~ +36V or USB type C Adapter (20V) Note: DCIN & USB type C Adapter can only use either one.
Dimension (L x W)
5.7" x 4" (146mm x 101mm)
Ordering Information
Ordering Information
ECM-RPL-300-A1R
3.5" w/U300E/2COM/8USB/I226/15W/A1
ECM-RPL-15S-A1R
3.5" w/i3-1315UE/2COM/8USB/I226/15W/A1
ECM-RPL-35S-A1R
3.5" w/i5-1335UE/2COM/8USB/I226/15W/A1
ECM-RPL-65S-A1R
3.5" w/i7-1365UE/2COM/8USB/I226/15W/A1
ECM-RPL-20S-A1R
3.5" w/i3-1320PE/2COM/8USB/I226/28W/A1
ECM-RPL-40S-A1R
3.5" w/i5-1340PE/2COM/8USB/I226/28W/A1
ECM-RPL-70S-A1R
3.5" w/i7-1370PE/2COM/8USB/I226/28W/A1
ECM-RPL-15W-A1R
3.5" w/i3-1315URE/2COM/8USB/I226/15W/A1
ECM-RPL-45W-A1R
3.5" w/i5-1345URE/2COM/8USB/I226/15W/A1
ECM-RPL-65W-A1R
3.5" w/i7-1365URE/2COM/8USB/I226/15W/A1
ECM-RPL-20W-A1R
3.5" w/i3-1320PRE/2COM/8USB/I226/28W/A1
ECM-RPL-50W-A1R
3.5" w/i5-1350PRE/2COM/8USB/I226/28W/A1
ECM-RPL-70W-A1R
3.5" w/i7-1370PRE/6COM/8USB/28W/I226/B1
