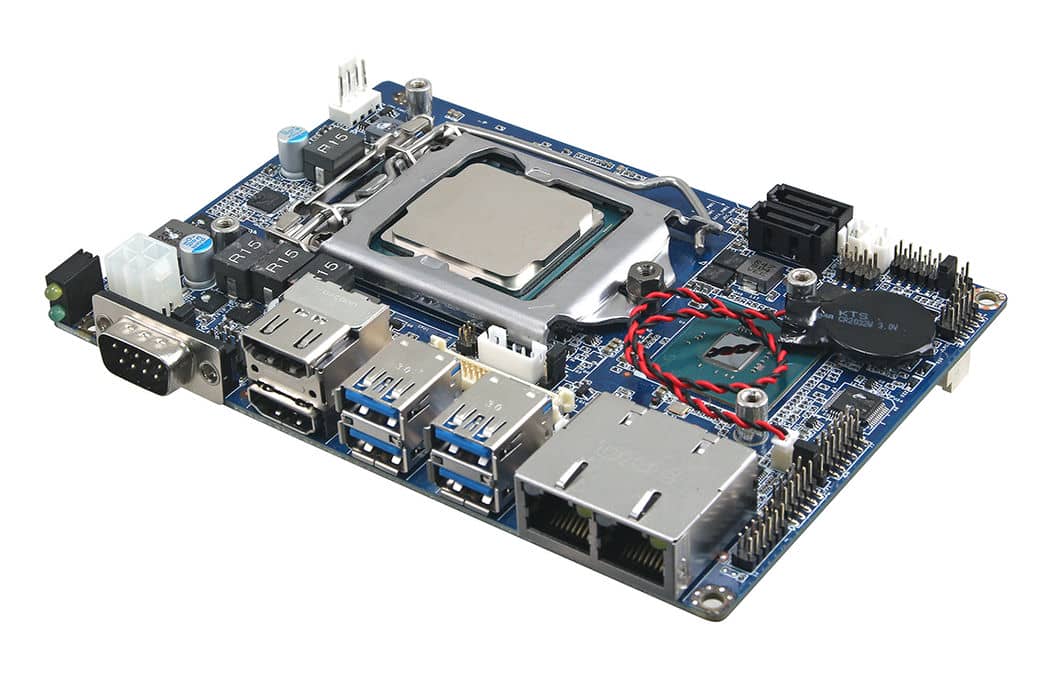

Processor

Intel® LGA1151 Socket supports
Intel® Core™ i7-8700T Processor (12M Cache, up to 4.00 GHz)
Intel® Core™ i5-8500T Processor (9M Cache, up to 3.50 GHz)
Intel® Core™ i3-8100T Processor (6M Cache, 3.10 GHz)
Intel® Pentium® Gold G5400T Processor (4M Cache, 3.10 GHz)
Intel® Celeron® G4900T Processor (2M Cache, 2.90 GHz)
Intel® Core™ i7-9700TE Processor (12M Cache, up to 3.80 GHz)
Intel® Core™ i5-9500TE Processor (9M Cache, up to 3.60 GHz)
Intel® Core™ i3-9100TE Processor (6M Cache, up to 3.20 GHz)

Platform Controller Hub

Intel® Q370 Chipset
Intel® H310 Chipset

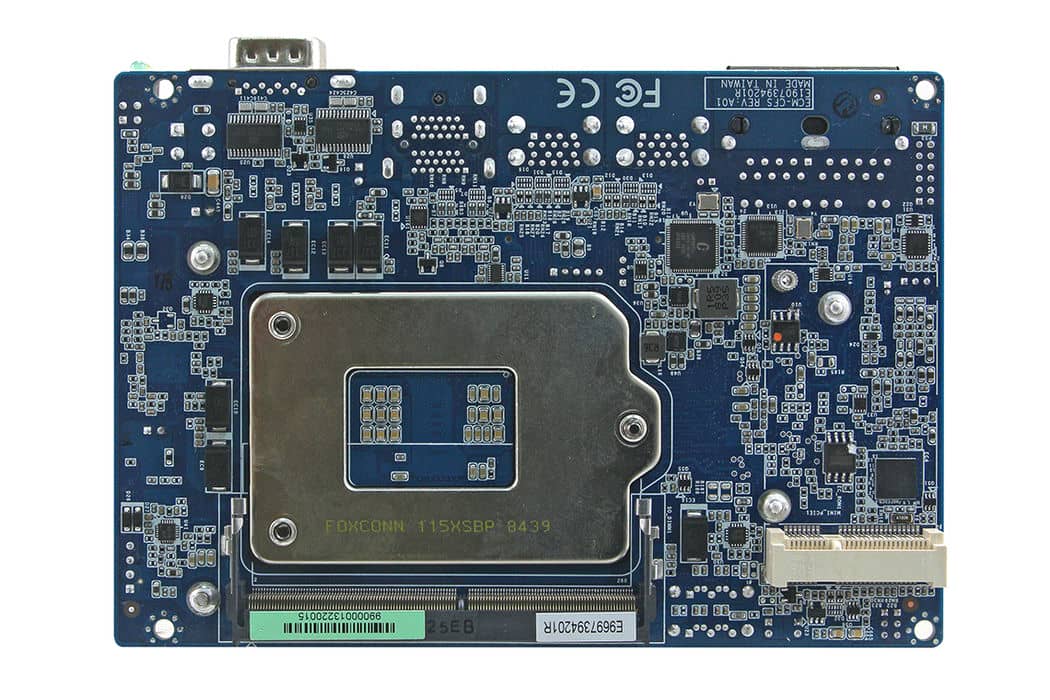

System Memory

1 x 260-Pin DDR4 2400/2666MHz SO-DIMM Socket, Supports Up to 32GB Max.

I/O Chipset

EC iTE IT8528E

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control

TPM

fTPM 2.0

Board

3.5"

Expansion

1 x Mini PCIe (mSATA)
(Q370 w/PCIe/SATA/USB 2.0)
(H310 w/SATA/USB 2.0)

Storage

1 x mSATA
2 x SATA III

Graphic Chipset

Intel® UHD Graphics 630 (i7-8700T,i7-9700TE, i5-8500T,i5-9500TE, i3-8100T,i3-9100TE)
Intel® UHD Graphics 610 (Pentium G5400T, Celeron G4900T)

Spec. & Resolution

Dual HDMI 1.4: Max. Resolution 4096 x 2304@30Hz
LVDS: Max. Resolution 1920 x 1080@60Hz

Multiple Display

Q370 Support Triple Display
H310 Only Support Dual Display:LVDS+HDMI1(Default LVDS enable)or HDMI1+HDMI2(LVDS Disabled)

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-in, Mic-in, Line-out

LAN Chipset

1 x Intel® I210AT
1 x Intel® I219LM

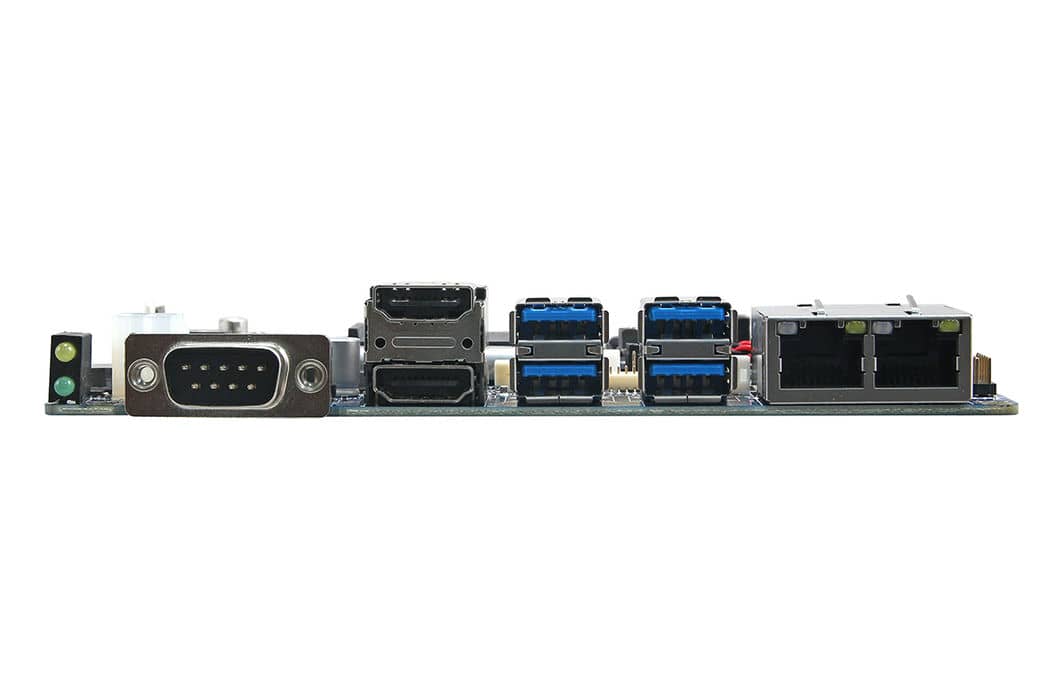

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 10, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.1 (w/Q370 Gen2, w/H310 Gen1)
2 x USB 2.0

COM Port

2 x RS-232

SATA

2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x LPC
1 x SPI

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F), with 0.2m/s Air Flow

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs (0.2kg)

Power Requirement

DC in +12V

Dimension (L x W)

5.7" x 4" (146mm x 101mm)

Ordering Information

ECM-CFS-Q37-B2R
3.5 Q370 micro module w/CPU socket/B2
ECM-CFS-H31-B2R
3.5 H310 micro module w/CPU socket/B2

8th9th Generation Processor:
ACC-CPU-9700TER
Intel Core i7-9700TE 1.8GHz Processor(12M Cache, up to 3.80 GHz)

ACC-CPU-9500TER
Intel Core i5-9500TE 2.2GHz Processor(9M Cache, up to 3.60 GHz)

ACC-CPU-9100TER
Intel Core i3-9100TE 2.2GHz Processor(6M Cache, up to 3.20 GHz)

ACC-CPU-8700TR
Intel® Core™ i7-8700T Processor (12M Cache, up to 4.00 GHz)

ACC-CPU-8500TR
Intel® Core™ i5-8500T Processor (9M Cache, up to 3.50 GHz)

ACC-CPU-8100TR
Intel® Core™ i3-8100T Processor (6M Cache, 3.10 GHz)

ACC-CPU-G5400TR
Intel® Pentium® Gold G5400T Processor (4M Cache, 3.10 GHz)

ACC-CPU-G4900TR
Intel® Celeron® G4900T Processor (2M Cache, 2.90 GHz)
