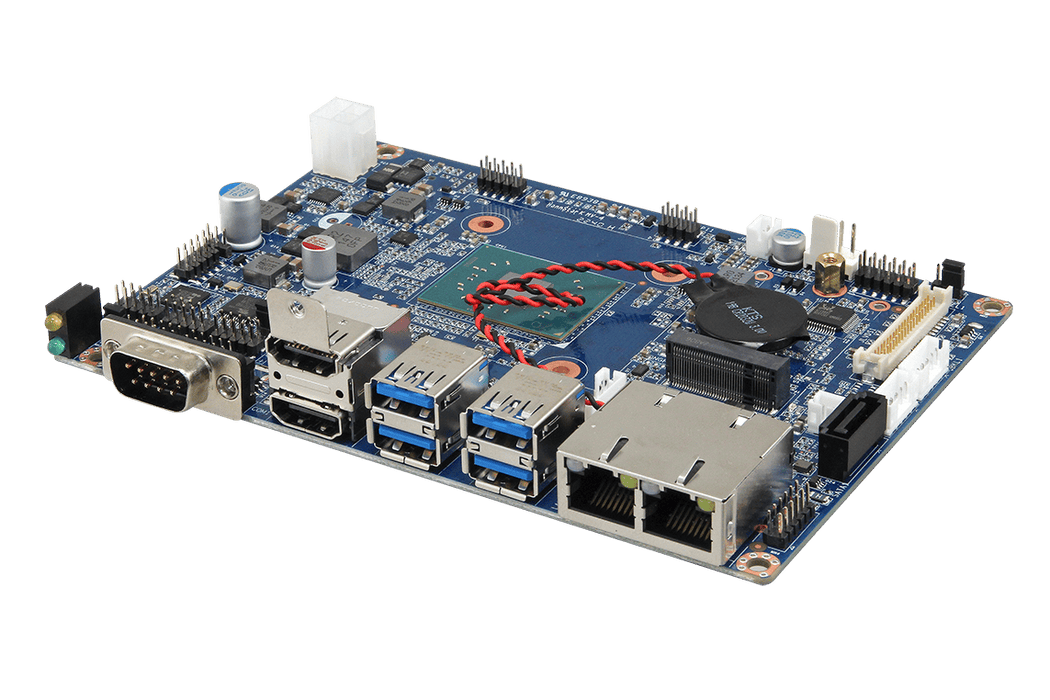

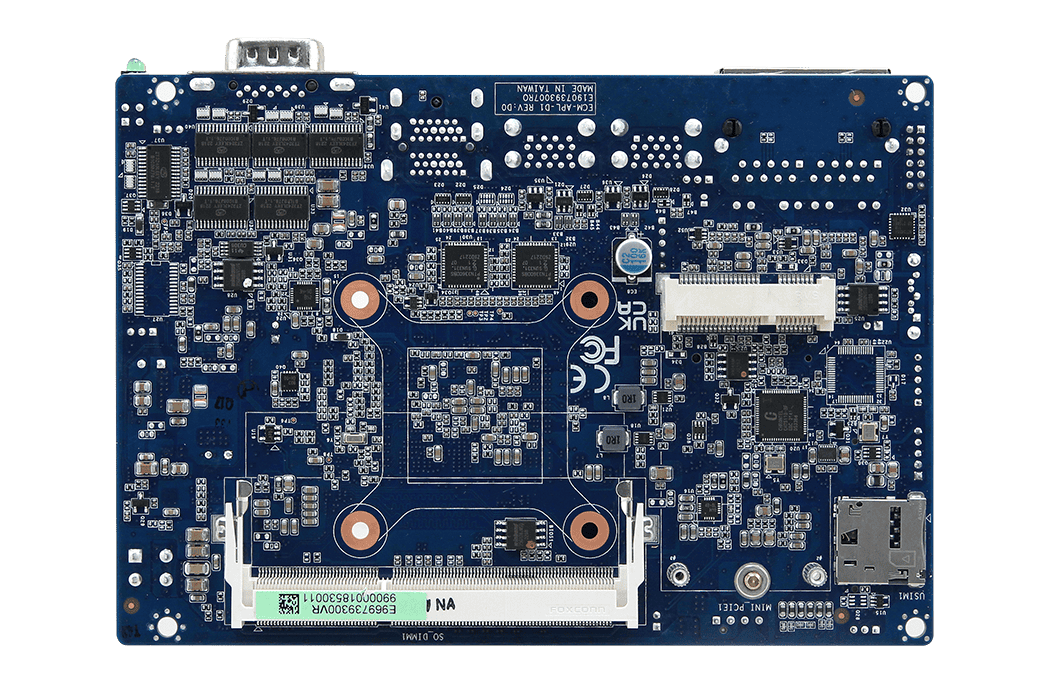

ECM-APL
Intel® Pentium®/Celeron®/Atom® SoC Processor 3.5”Micro Module
FEATURE
Top Layer Soldered
Intel® Pentium®/Celeron®/Atom™ BGA Processor
Intel® HD Graphics 500/505 Graphic Engine
Single DRAM Socket, Max. Up to 8GB DDR3L 1600&1333MHz
Triple Display (Dual HDMI, LVDS)
Dual Expansion Slot, M.2 & mPCIe
DC +12V ~ +24V
Specification
Download
System Information
Processor
Intel Atom® x7-E3950 Processor (2M Cache, up to 2.00 GHz)
Intel Atom® x5-E3940 Processor (2M Cache, up to 1.80 GHz)
Intel Atom® x5-E3930 Processor (2M Cache, up to 1.80 GHz)
Intel® Pentium® Processor N4200 (2M Cache, up to 2.50 GHz)
Intel® Celeron® Processor N3350 (2M Cache, up to 2.40 GHz)
Intel® Celeron® Processor J3455 (2M Cache, up to 2.30 GHz)
System Memory
1 x 204-Pin DDR3L 1600&1333MHz SO-DIMM, Supports Up to 8GB Max. (Non-ECC)
I/O Chipset
EC ITE iT8528E, I-series CPU use EC iT8528I for WT
Watchdog Timer
H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
BIOS
AMI BIOS, 128Mbit SPI Flash ROM
H/W Status Monitor
Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control
Board
3.5"
Expansion
Expansion
1 x Mini PCIe (for PCIe & USB2.0)
1 x M.2 Key B (2242)
Storage
Storage
1 x M.2 Key B support SATA/USB interface & with Micro SIM card connector for SSD/3G/4G
Display
Graphic Chipset
Intel® SoC Integrated Graphics
Spec. & Resolution
2 x HDMI: Max. Resolution 3840 x 2160@30Hz
1 x LVDS: Max. Resolution 1920 x 1080@60Hz
Multiple Display
Triple Display
LVDS
1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Line-in, Mic-in, Line-out
Ethernet
LAN Chipset
2 x Intel® I210AT
Intel I210IT for WT
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
Power Mode
AT/ATX (Default Setting: AT)
Software Support
OS
Windows 10, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

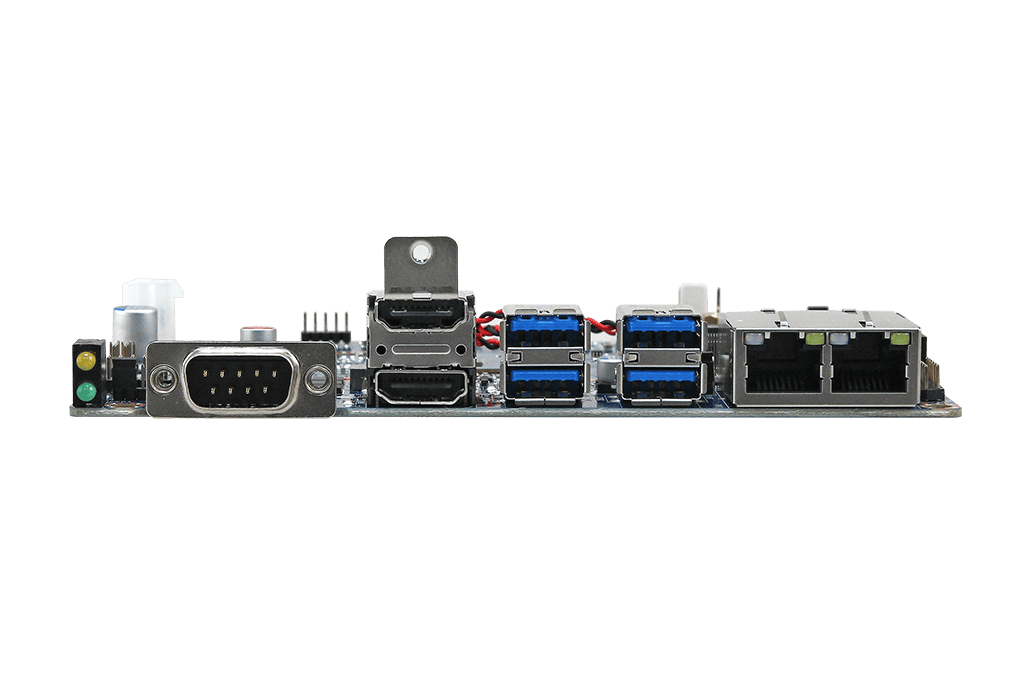

I/O
USB
4 x USB 3.0
1 x USB 2.0
COM Port
5 x RS-232
1 x RS-232/422/485
SATA
1 x SATA III
DIO
1 x 8-bit GPIO
MIO
1 x LPC
1 x SPI
1 x SIM Card Slot
Mechanical & Environmental
Operating Temp.
0°C ~ 60°C (32°F ~ 140°F) (J3455/N4200/N3350/E 3900 series)
-40°C ~ 85°C (-40°F ~ 185°F)(E3900 Series)(Optional for Wide Temperature Model)
Storage Temp.
-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.44lbs (0.2kg)
Power Requirement
DC +12V ~ +24V
Dimension (L x W)
5.7" x 4" (146mm x 101mm)
Ordering Information
Ordering Information
ECM-APL-N4200-C2R
3.5" W/N4200/5USB/6COM/2LAN/C2
ECM-APL-N3350-C2R
3.5" W/N3350/5USB/6COM/2LAN/C2
ECM-APL-J3455-C2R
3.5" W/J3455/5USB/6COM/2LAN/C2
ECM-APL-E50-C1R(0~+60C)
3.5" W/E3950/5USB/6COM/2LAN/C1
ECM-APL-E40-C1R(0~+60C)
3.5" W/E3940/5USB/6COM/2LAN/C1
ECM-APL-E30-C1R(0~+60C)
3.5" W/E3930/5USB/6COM/2LAN/C1
ECM-APL-E50W-C1R(Wide temp.-40~+85C)
3.5" W/E3950/5USB/6COM/2LAN/C1
ECM-APL-E40W-C1R(Wide temp.-40~+85C)
3.5" W/E3940/5USB/6COM/2LAN/C1
ECM-APL-E30W-C1R(Wide temp.-40~+85C)
3.5" W/E3930/5USB/6COM/2LAN/C1
BIOS
4
Chipset
1
Audio
1
Graphics
1
LAN
1
Design Document
8
Manual
1
Other Driver
3
0
BIOS
Total 4 Files
No.
Release Date
Model
Description
Download
2023-11-01
CAPL-01E)ECM-APL/ECM-APL-B1 1.60CS:24B5H,P/N:E1512393006R.For BIOS flash tool, please contact your regional AE for details.
