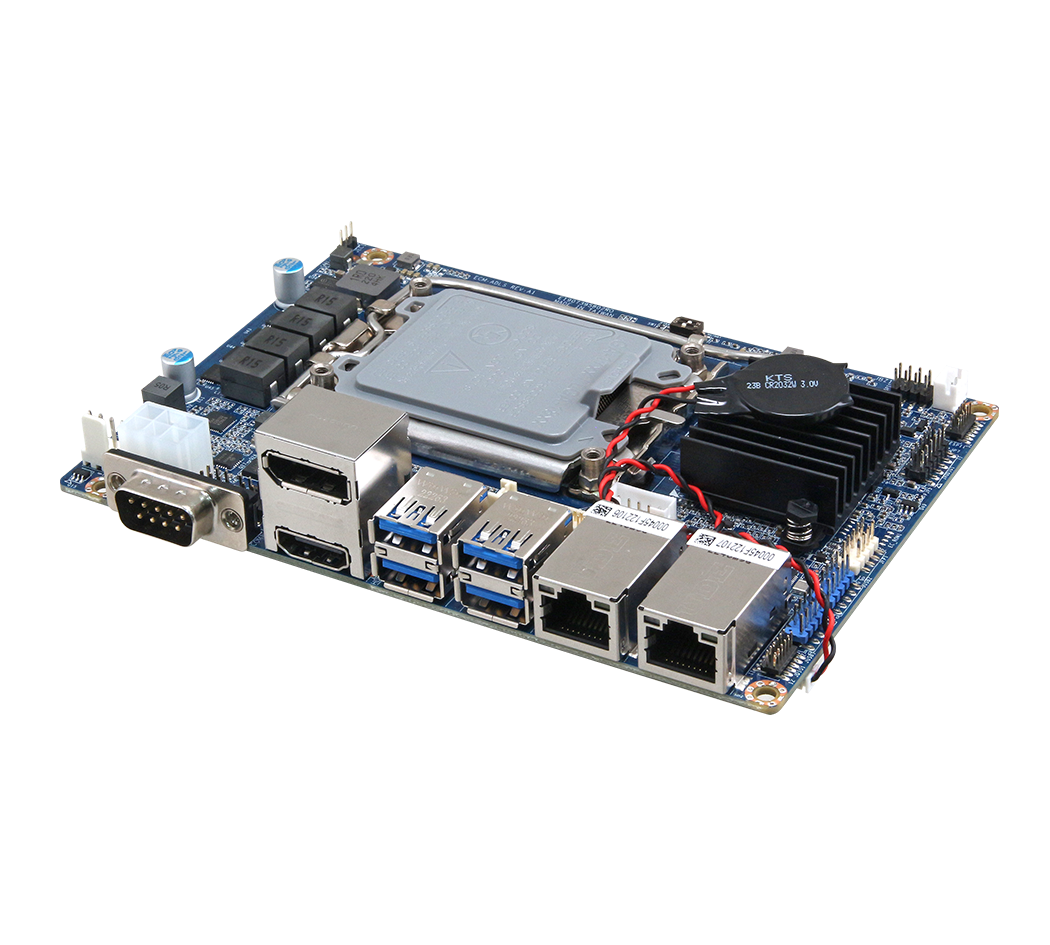

Processor

Intel® LGA 1700 socket supports 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor Up to 35W Max *13th does not support i7 & i9 CPU

Platform Controller Hub

Intel® Q670E Chipset
Intel® H610E Chipset

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, support up to 32GB (Non ECC for Chipset Q670E & H610E)

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU & system temperature monitoring Voltages monitoring

TPM

fTPM

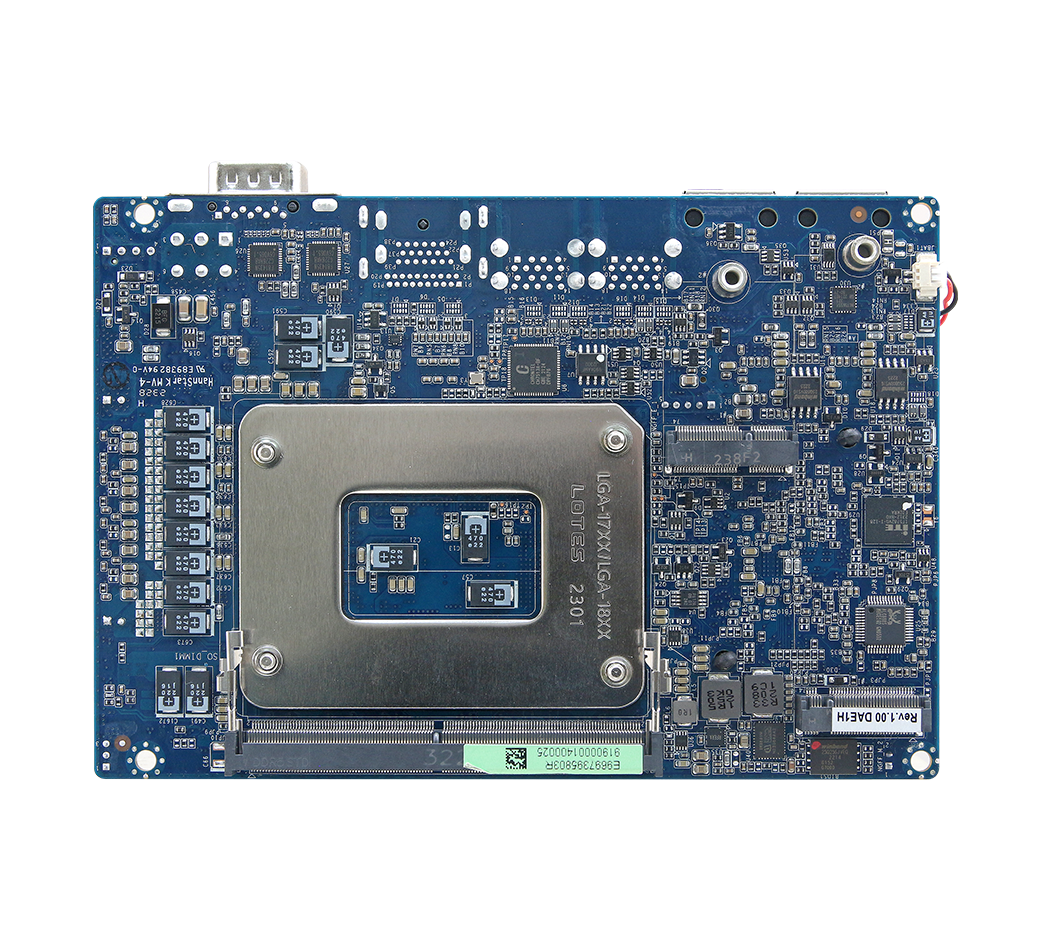

Board

3.5"

Expansion

1 x M.2 Key E 2230, supports Wi-Fi module, supports 2x PCIe x1 Gen 3, USB 2.0
1 x M.2 Key M 2280, supports PCIe x4 Gen3 NVMe or SATA device

Storage

1 x M.2 (Key M 2280), support PCI-e x 4 Gen 3 NVMe or SATA device

Graphic Chipset

Intel® 12th Generation CPU integrated

Spec. & Resolution

1 x DP 1.4b : 4096 x 2304@60 Hz, support DP++
1 x HDMI 2.0 : 4096 x 2304@60 Hz
1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS)
or 1 x eDP 1920 x 1080@60Hz (2 Lanes), default LVDS
Note: JLVDS1 Support 1 x LVDS or 1 x eDP, share the same connector.

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-in, Mic-in, Line-out

LAN Chipset

2 x Intel® I226LM 2.5 Gigabit Controller

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 10, Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

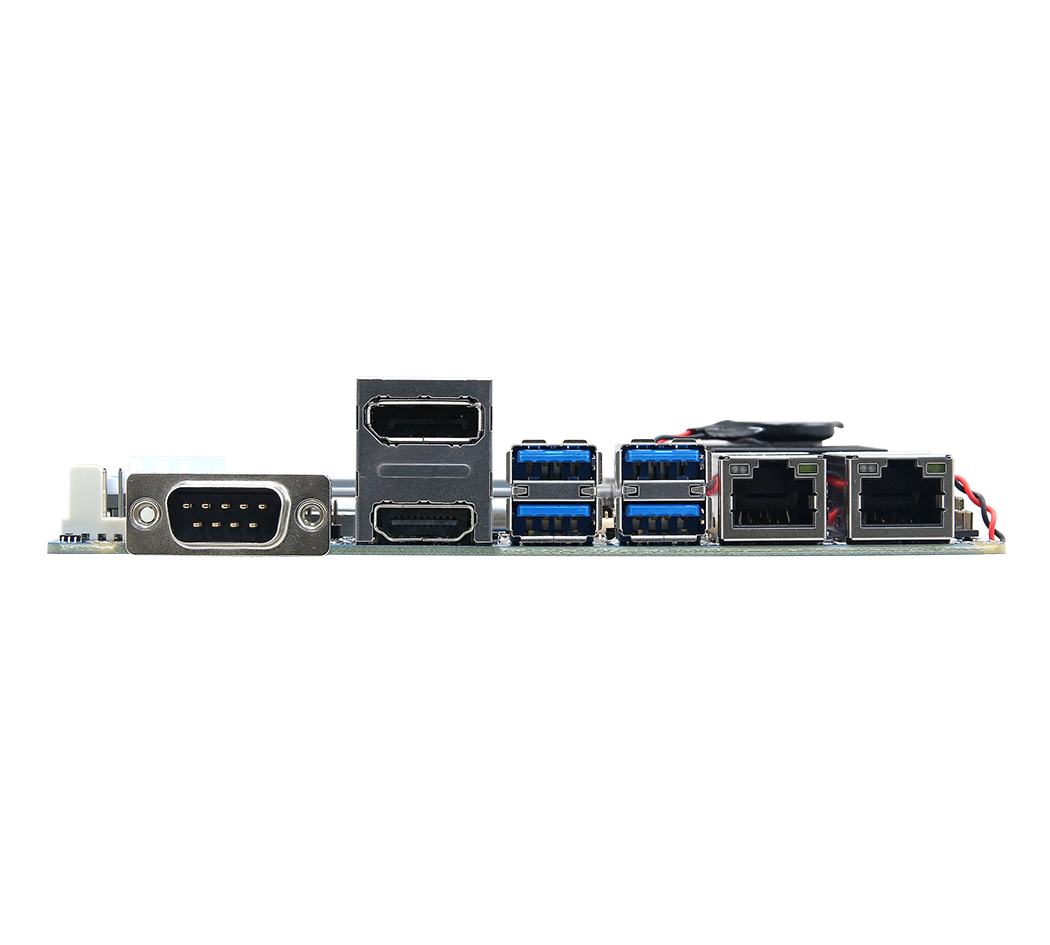

USB

4 x USB 3.2 Gen2 (Note: H610E USB 3.2 Support 2 x Gen2 & 2 x Gen1)
4 x USB 2.0

COM Port

2 x RS-232/422/485

DIO

1 x 8-bit GPIO

MIO

1 x eSPI

Operating Temp.

0~60°C (32~140°F) with 0.5m/s Air Flow

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs (0.2kg)

Power Requirement

DC in +12V
Note: Only use DC IN 12V for ECM-ADLS, please do not use Switching Power Supply.

Dimension (L x W)

5.7" x 4" (146mm x 101mm)

Ordering Information

ECM-ADLS-Q67-A1R
3.5 Q670E micro module w/CPU socket/A1
ECM-ADLS-H61-A1R
3.5 H610E micro module w/CPU socket/A1

ACC-CPU-G6900TER, Intel Celeron G6900TE 2.4GHz Processor
ACC-CPU-G7400TER, Intel Pentium G7400TE 3.0GHz Processor
ACC-CPU-12100TER, Intel Core I3-12100TE 4.0GHz Processor
ACC-CPU-12500TER, Intel Core I5-12500TE 4.5GHz Processor
ACC-CPU-12700TER, Intel Core I7-12700TE 4.6GHz Processor
ACC-CPU-12900TER, Intel Core I9-12900TE 4.8GHz Processor
ACC-CPU-13100TER, Intel Core I3-13100TE 2.40GHz Processor
ACC-CPU-13500TER, Intel Core I5-13500TE 1.30GHz Processor
