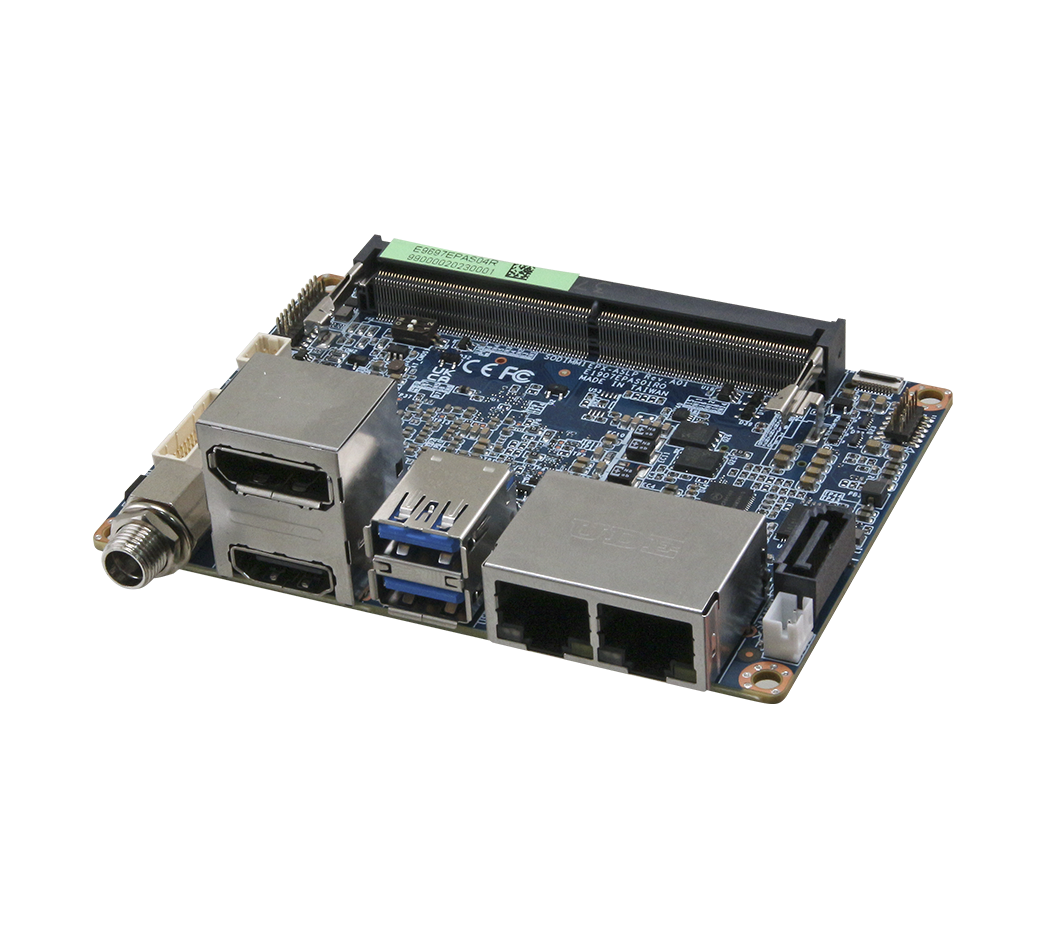

EPX-TWLP
Intel® Processor N-series BGA Processor Pico ITX Motherboard
FEATURE
Intel® Processor N-series

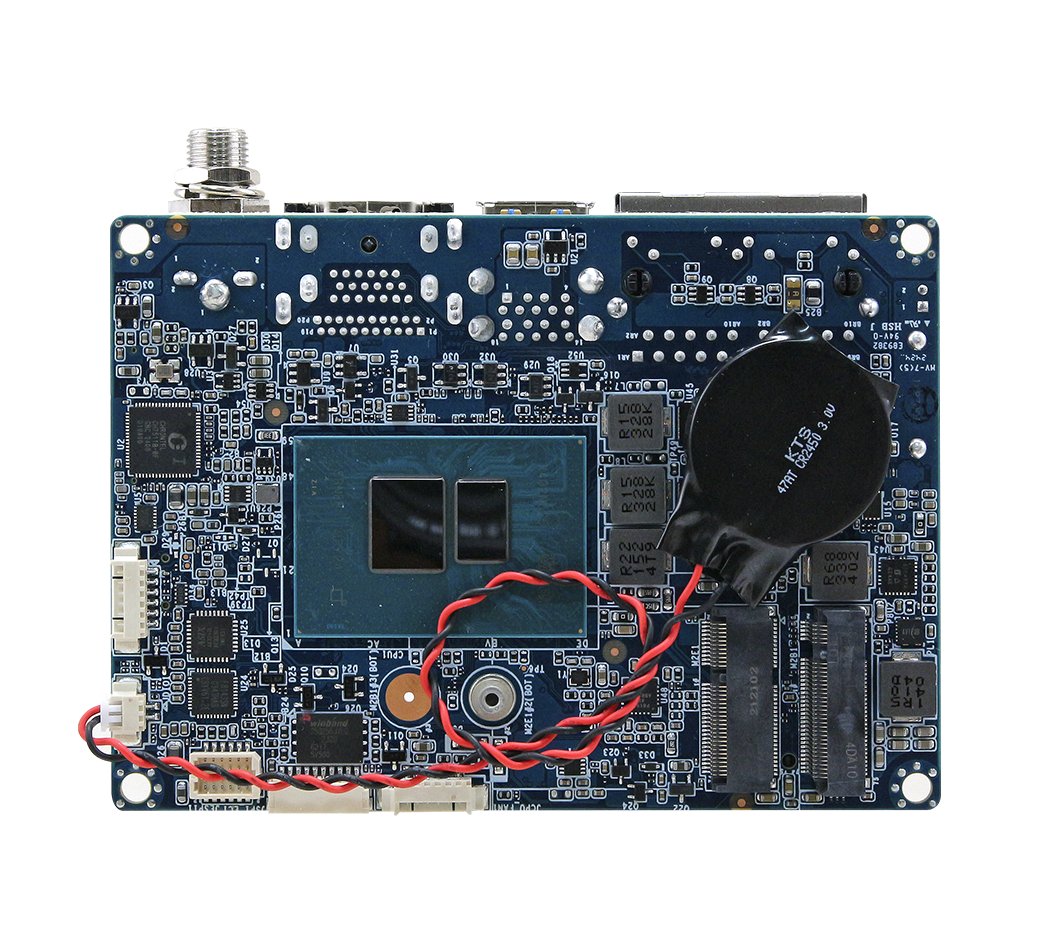

Bottom Layer Soldered Processor
Triple Display, DP 1.4a, HDMI 2.0b, 1 x 1CH LVDS
Dual Intel® Gigabit Ethernet, 2.5GbE
Dual Expansion Slot, M.2 Key-B, M.2 Key-E
DC in +12V
Specification
Download
System Information
Processor
Intel® Processor N-series
System Memory
1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.
I/O Chipset
EC IC: IT5782 or Equivalent
Fintek_F81435N or Equivalent for COM port
Watchdog Timer
H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
BIOS
AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU temperature monitoring
Voltages monitoring
CPU fan speed control
TPM
Support fTPM
Board
PICO ITX
Expansion
Expansion
1 x M.2 Type B 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards)
*Default is Default: SATA)
*1 x 10Pin FPC connector for Micro SIM card adapter
*Micro SIM card to SIM card adapter by optional
1 x M.2 Type E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal.
Storage
Storage
1 x M.2 (Type B)
1 x SATA III
Display
Graphic Chipset
Intel® Graphics
Spec. & Resolution
HDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1366 x 768 Single channel 18/24-bits
Multiple Display
Triple Display
LVDS
1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS Converter
Ethernet
LAN Chipset
2 x Intel® i226V (i226IT for wide temp version) 2.5 Gigabit Ethernet
Ethernet Interface
2.5 Gigabit Ethernet
LAN Port
2 x RJ45
Software Support
OS
Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

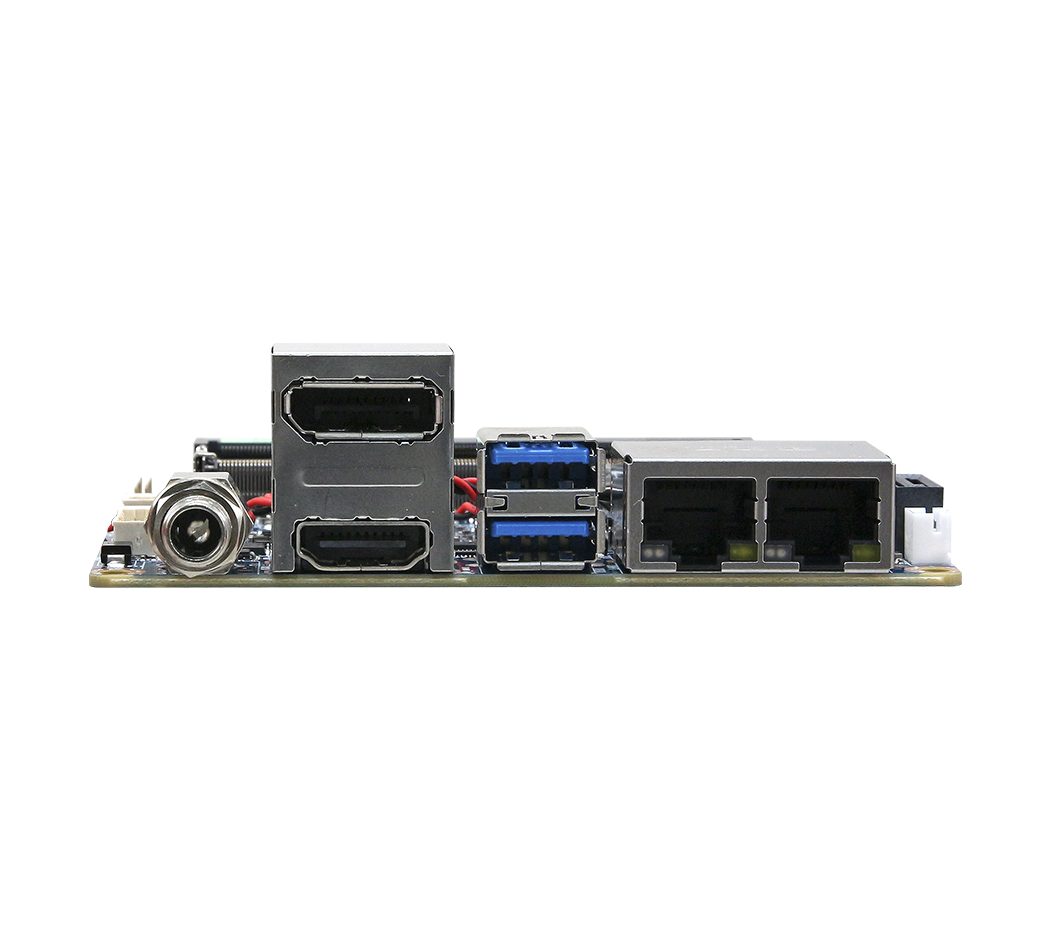

I/O
USB
2 x USB 3.2 Gen2 at IO
4 x USB 2.0 by pin header
COM Port
1 x RS-232
1 x RS-232/422/485
SATA
1 x SATA III
DIO
1 x 4-bit GPIO
Mechanical & Environmental
Operating Temp.
0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow
Storage Temp.
-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.66lbs (0.3Kgs)
Power Requirement
DC in +12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
3.94" x 2.83" (100mm x 72mm)
Ordering Information
Ordering Information
Intel® Processor N-series 2.5 Pico ITX SBC Motherboard
EPX-TWLP-N150-A1R
EPX-TWLP/N150/2COM/6USB/2LAN/A1
EPX-TWLP-N250-A1R
EPX-TWLP/N250/2COM/6USB/2LAN/A1
