EPX-EHLP

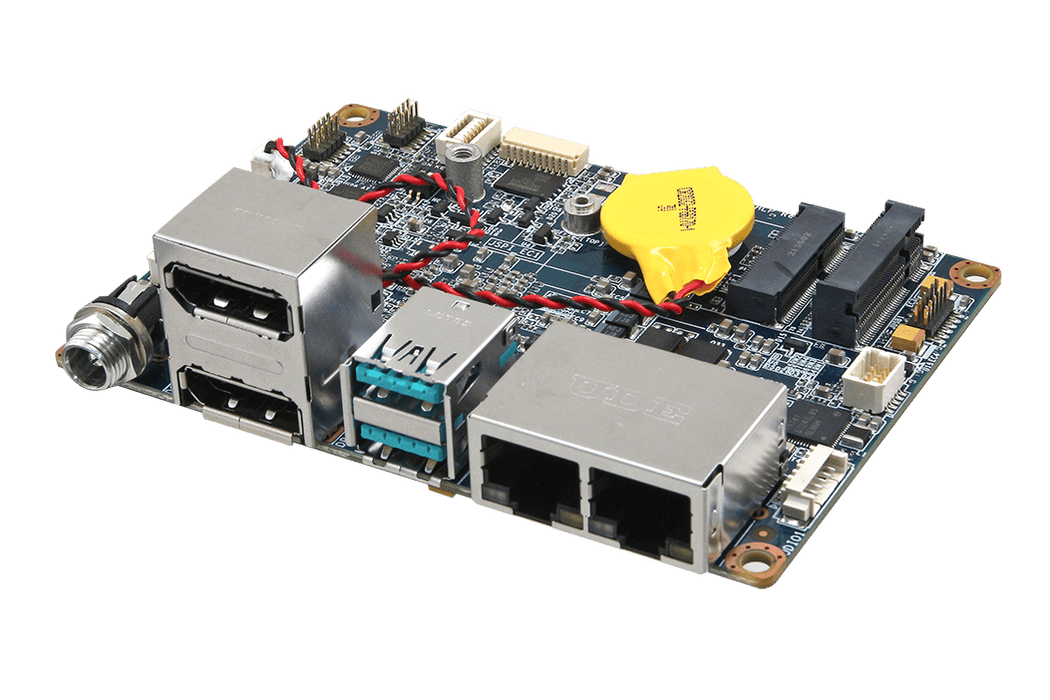

Intel® Celeron® & Atom® x6000E series® BGA Processor Pico ITX Motherboard
FEATURE

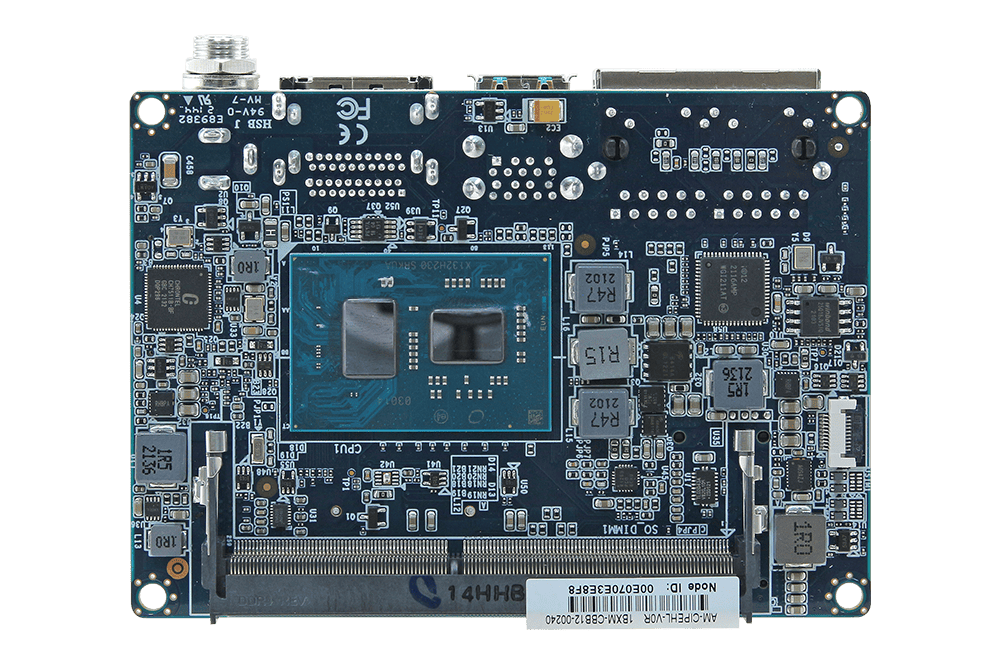

Intel® Celeron® & Atom® x6000E series processors with CPU Bottom Mounted
1 x 260-pin DDR4 2666 MHz SO-DIMM Supports Up to 32GB (Only Atom® x6000 Series Processors Support IBECC) *Note: Due to mainboard design limitation, the mainboard is not recommend to use DDR4 3200MHz SO-DIMM.
1 x Dual Stack DP, Single Channel 18/24-bits LVDS
2 x Intel® i226LM/IT 2.5G Gigabit Ethernet
4 x USB 2.0 by Pin Header, 1 x Dual Stack USB 3.1 Gen2 at I/O
1 x M.2 (2242/2260) B-Key, 1 x M.2 (2230) E-Key Support Wifi Module
1 x RS232, 1 x RS232/422/485, 4-bit GPIO
DC in +12V
Specification
Download
System Information
Processor
Intel® Celeron® and Atom® x6000E series processors
System Memory
1 x 260-pin DDR4 2666MHz SO-DIMM socket, supports up to 32GB Max.
*Note: Due to mainboard design limitation, the mainboard is not recommend to use DDR4 3200MHz SO-DIMM.
I/O Chipset
EC iTE IT5571 or Equivalent
Watchdog Timer
H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
BIOS
AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU temperature monitoring
Voltages monitoring
CPU fan speed control
Board
PICO ITX
Expansion
Expansion
1 x M.2 Type B 2242/2260 support SSD. (Default: PCIe) With (1 x PCIe x1 / SATA III + USB3.1 GEN 1 + USB 2.0) as Default or (1 x PCIe x2 + USB 2.0, via OEM BIOS request)
Storage
Storage
1 x M.2 (Type B)
Display
Graphic Chipset
Intel® UHD Graphics
Spec. & Resolution
2 x DP (Upper DP, Lower DP++): 4096 x 2160@60 Hz
LVDS: 1366x768 Single Channel 18/24-bits LVDS (Chrontel CH7511B-BF (CH7511B-BFI for Wide Temp Version) eDP to LVDS)
Multiple Display
Triple Display
LVDS
1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS Converter
Ethernet
LAN Chipset
2 x Intel® i226LM (i226IT for wide temp version) 2.5 Gigabit Ethernet
Ethernet Interface
2.5 Gigabit Ethernet
LAN Port
2 x RJ45
Software Support
OS
Windows 10, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
2 x USB 3.1 Gen2 at I/O
4 x USB 2.0 by pin header
COM Port
1 x RS232
1 x RS232/422/485
DIO
1 x 4-bit GPIO
Mechanical & Environmental
Operating Temp.
Standard Temperature: 0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow
Extend Temperature: -20°C ~ 60°C (-40°F ~ 140°F) with 0.5m/s Air Flow for Wide Temp CPU SKU
Storage Temp.
-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.66lbs (0.3Kgs)
Power Requirement
DC in +12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
3.94" x 2.83" (100mm x 72mm)
Ordering Information
Ordering Information
Intel® Celeron®/Atom™ SoC BGA Processor 2.5 Pico ITX SBC Motherboard
EPX-EHLP-J6412-A1R
EPX-EHLP/J6412/2COM/6USB/2LAN/A1
EPX-EHLP-J6413-A1R
EPX-EHLP/J6413/2COM/6USB/2LAN/A1
EPX-EHLP-X13E-A1R
EPX-EHLP/x6413E/2COM/6USB/2LAN/A1
